Sengate 4PH-75BQE Quick Start Manual

This sensor is designed to detect intrusion and to activate an alarm. It only provides an alarm sign output, and is not an independent
burglar-preventing device. If it's used abnormally, faulty installation, improper maintenance or Acts of God, it will cause damage.

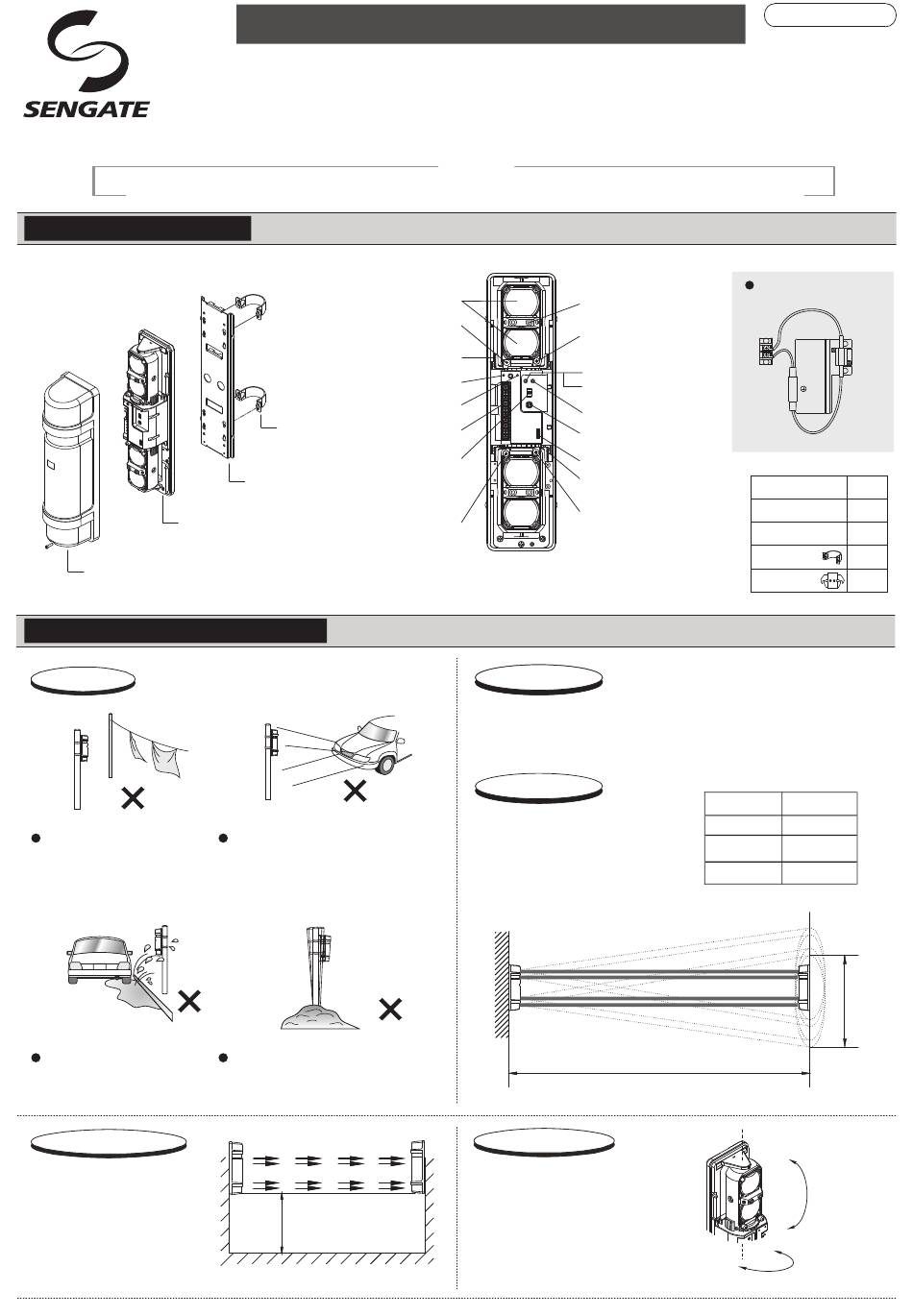

1.PARTS DESCRIPTION

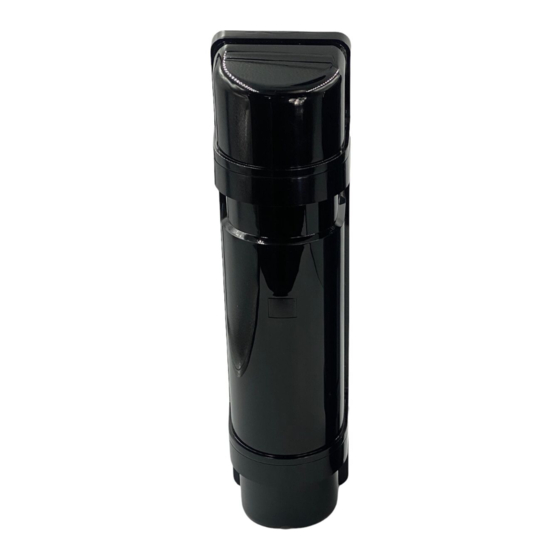

Transmitter / Receiver
Cover
2.CAUTIONS ON INSTALLATION
Wrong place
Remove all obstructions (trees,
clothes lines, etc.) Between
Transmitter and Receiver.
Do not install the unit on places
where it may be splashed by
dirty water or direct sea spray.
Installation Height
To detect the intruder efficiently,
the sensors should be installed
within 32"~40" (80~100cm)
height.
75M/150M/250M QUAD PHOTOELECTRIC BEAM SENSOR
4PH- 75BQE Outdoor 225ft. ( 75m) / Indoor 450ft. (150m)
4PH- 150BQE Outdoor 450ft. (150m) / Indoor 900ft. (300m)
4PH- 250BQE Outdoor 750ft. (250m) / Indoor 1500ft. (500m)
Please read this instruction Manual carefully for correct and effective use. If you do not
understand these instructions, contact your supplier for further information.
Horizontal
Adjustment (Fine)
Horizontal
Adjustment (Rough)
Monitor(+)
Monitor(-)
U-Brackets
Channel Set SW
Mounting Plate
Vertical
Adjustment
Avoid strong light from the sun, headlights,
and direct shining on the Transmitter /
Receiver.
When strong light stays in optical axis for
a long time, it will hurt the product's lift.
Do not install the unit on the unsteady
place.
32"-40" (80-100 cm)
NOTE
Lens
Terminals
Detection Range Detection Range
Please make the Transmitter and Receiver within the required range as belows:
4PH-75BQE Outdoor 225ft. (75m) / Indoor 450ft. (150m)
4PH-150BQE Outdoor 450ft. (150m) / Indoor 900ft. (300m)
4PH-250BQE Outdoor 750ft. (250m) / Indoor 1500ft. (500m)
Detection Width
The detection width can be calculated
with following formula :
Width A = 0.025 x Length (L)
Transmitter
Alignment Angle
The sensors can be adjusted with
Horizontal ± 90 and Vertical °
to fit big detection range.
Heating Unit : HT-200
(Option)
View Finder
Vertical
Adjustment
Alarm LED (Receiver)
Supply LED (Transmitter)
Attenuation LED
Response Time Adjustment
Tamper Switch
Horizontal
Adjustment (Rough)
Horizontal Screws 4*20
Adjustment (Fine)
Screws M4*30
U-Brackets
Attenuation
L
180' (60m)
300' (100m)
600' (200m)
L- Protection Distance
± 10 °
M a n u a l I n s t r u c t i o n
Accessories
Q'ty
*8
*8
*4
*2
A
4.5' (1.5m)
7.5' (2.5m)
15.0' (5.0m)
A-Width
Receiver
± 10 °
± 90 °
