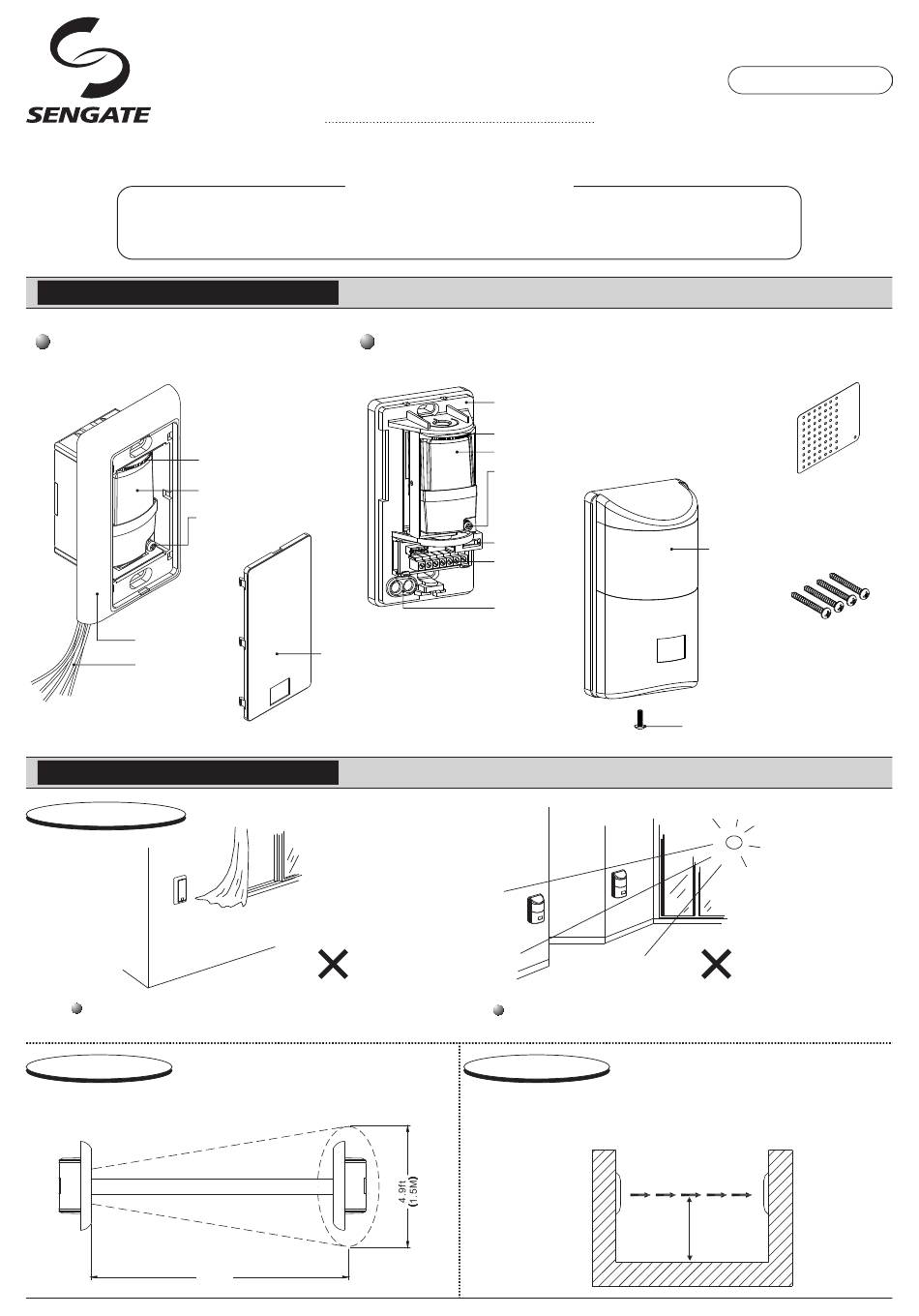

Sengate PH-15FA Manual Instruction

15M SINGLE PHOTOELECTRIC BEAM SENSOR
Thanks for purchasing this product. Read this instruction before using the product to make sure that you use it correctly.
●
BUILD WITH HIGH GRADE ASPHERIC LENS.
●
3-STEP LED INDICATOR FOR EFFECITVE ALIGNMENT.
1
PARTS NAME：
PH-15FA (FLUSH Mount)
Horizontal Adjustment
Len
Vertical Adjustment
Base Unit
Wiring
2
PRECAUTIONS FOR INSTALLATION：
IMPROPER LOCATION
Avoid any possible objects between
Transmitter and Receiver ( ex. Curtain, Bonsai .... )
DETECTION RANGE With 15M Detection Range between
Transmitter and Receiver.
50ft
(15M)
PH-15FA / PH-15SA
FEATURES OF THE PRODUCT
●
DRIP-BREAKER DESIGN, PH-15FA COULD BE FOR OUTDOOR/INDOOR.
●
FLUSH AND SURFACE MOUNT FOR OPTIONS.
PH-15SA (SURFACE Mount)
Base Unit
Horizontal Adjustment
Len
Vertical Adjustment
Tamper Switch
Terminals
Wiring Hole
Front Cover
INSTALLATION HEIGHT
As these products are designed to detect humans, installing
so that the center of the sensors are at a height of approximately
80cm~100cm from the ground for both wall and pole mounting.
1
Screws
Avoid direct sunshine and long-time strong sunshine,
that would hurt product's life.
HEIGHT
MANUAL INSTRUCTION
Attenuation Sheet
Front Cover
Screws
5/32"x1 "
(4x25 mm)
80~100 cm
