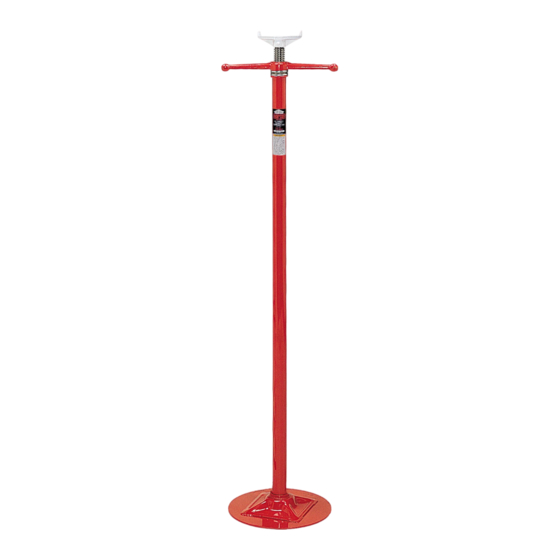

3/4 ton capacity under hoist stand

Advertisement

MODELS 81033 & 81034 3/4 TON CAPACITY UNDER HOIST STANDS
SETUP • OPERATING • MAINTENANCE INSTRUCTIONS
Note: Revision letters (A, B, C, D etc.) after model numbers have been omitted as they do not affect the setup,
operating and maintenance instructions of a particular jack unless otherwise noted.
IMPORTANT: READ THESE INSTRUCTIONS BEFORE OPERATING
BEFORE
USING
THIS
COMPLETELY
AND
THOROUGHLY,
OPERATING
PROCEDURES,
MAINTENANCE REQUIREMENTS. FAILURE TO DO SO COULD
CAUSE ACCIDENTS
RESULTING IN SERIOUS OR FATAL
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
The use of portable automotive lifting devices is subject to certain
hazards that cannot be prevented by mechanical means, but
only by the exercise of intelligence, care, and common sense. It
is therefore essential to have owners and personnel involved in
the use and operation of equipment who are careful, competent,
trained, and qualified in the safe operation of the equipment and its
proper use. Examples of hazards are dropping, tipping or slipping
of loads caused primarily by improperly securing loads, overloading
and off-centered loads, use on other than hard level surfaces, and
This stand is intended to provide partial support of vehicle
components during removal and installation. Do not use to
support or stabilize a vehicle.
Do not exceed rated capacity.
Center load on saddle. Do not use saddle locating lugs to
support the load.
Do not shock load.
Inspect the stand(s) before each use. Do not use a stand if
it is damaged, excessively worn, altered, modified or in poor
1.
Unpackage the preassembled lifting tube with extension screw
and the round base plate.
2.
The bottom of the lifting tube is fitted with a threaded receiver
tube. Screw the threaded receiver tube of the lifting tube assembly
into the round base plate until snug.
PROFESSIONAL LIFTING EQUIPMENT
STAND,
READ
THIS
UNDERSTAND
SAFETY
WARNINGS AND
®
MANUAL
using equipment for a purpose for which it was not designed. It is
ITS
the responsibility of the owner to make sure all personnel read this
manual prior to using this device.
It is also the responsibility of the device owner to keep this manual
intact and in a convenient location for all to see and read. If the
manual is lost or not legible, contact Norco Industries, Inc. for a
free replacement. If the operator is not fluent in English, the product
and safety instructions shall be read to and discussed with the
operator in the operator's native language by the purchaser/owner
or his designee, making sure that the operator comprehends its
contents.
This product is covered by a Limited Lifetime Warranty. For details
see the back cover of Norco's product catalog.
WARNING
condition. Take corrective action before using the stand(s).
Adequately support the vehicle before starting repairs.
Before supporting the vehicle component with under hoist
stand(s), refer to the vehicle's service manual or inquire from
the vehicle manufacturer the recommended under hoist stand
support surface(s) on the vehicle component.
Be sure vehicle, vehicle component and stand setup are stable.
Use only on a hard level surface.

SETUP

3.
The model 81034 is equipped with a foot pedal. After step 2 is
completed, pull the foot pedal down towards the round base plate
making sure the foot pedal tab fits through the elongated slot in the
threaded receiver tube and engages the bottom of the lifting tube.
WARRANTY
