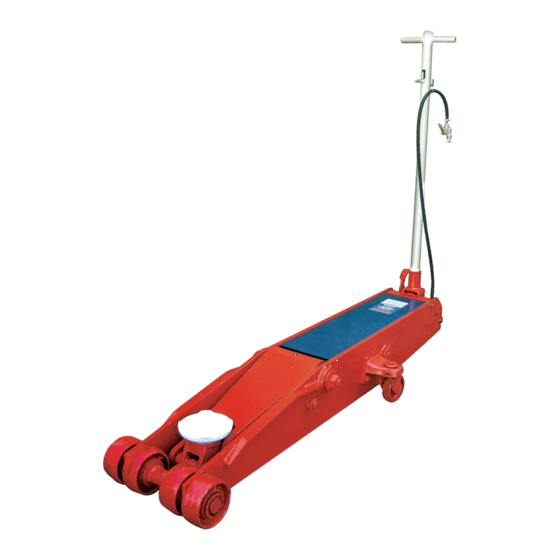

Norco 71550 Setup, Operation, Maintenance Instructions

MODELS 71550 5 TON, 71100 10 TON AND 72230 20 T0N CAPACITY
SETUP • OPERATING • MAINTENANCE INSTRUCTIONS
Note: Revision letters (A, B, C, D etc.) after model numbers have been omitted as they do not affect the setup,
operating and maintenance instructions of a particular jack unless otherwise noted.
IMPORTANT: READ THESE INSTRUCTIONS BEFORE OPERATING
BEFORE USING THIS
COMPLETELY AND THOROUGHLY,
OPERATING PROCEDURES,
MAINTENANCE REQUIREMENTS. FAILURE TO DO SO COULD
CAUSE ACCIDENTS RESULTING IN SERIOUS OR FATAL
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
The use of portable automotive lifting devices is subject to certain
hazards that cannot be prevented by mechanical means, but
only by the exercise of intelligence, care, and common sense. It
is therefore essential to have owners and personnel involved in
the use and operation of equipment who are careful, competent,
trained, and qualified in the safe operation of the equipment and
its proper use. Examples of hazards are dropping, tipping, or
slipping of motor vehicles or their components caused primarily by
improperly securing loads, overloading, off-centered loads, use on
• Before lifting a vehicle, refer to the vehicle's service manual or
inquire from the vehicle manufacturer the recommended jack
lifting points and jack stand support surfaces on the vehicle
chassis.
• Inspect the jack before each use. Do not use the jack if it is
damaged, altered, modified, in poor condition, leaking hydraulic
fluid, or unstable due to loose hardware. Take corrective action
before using the jack.
• This jack was designed for lifting purposes only. Do not attempt to
work on the vehicle until jack stands rated equal to or greater than
the rated capacity of the jack are positioned to support the load.
1. Remove the handle receiver bolt from the handle receiver. Insert
the "T" handle in the handle receiver so that the "L" slotted hole in
the handle aligns with the threaded bolt hole in the handle receiver.
The handle receiver bolt has a non-threaded tip which must enter
the "L" slotted hole in the handle. Sometimes it is necessary to
rotate the handle back and forth while simultaneously threading
the handle receiver bolt into the "L" slotted hole. You can feel when
the bolt enters the "L" slotted hole.
2. Attach the air line from the handle to the air line coming from
the jack with the quick disconnect provided.
3. Sometimes air gets trapped in the hydraulic system during
shipment. An air bound hydraulic system feels spongy when
pumped and sometimes the jack will not pump full incremental
strokes.
PROFESSIONAL LIFTING EQUIPMENT
FLOOR SERVICE JACKS
JACK, READ THIS MANUAL
UNDERSTAND
SAFETY WARNINGS AND
®
other than hard level surfaces, and using equipment for a purpose
ITS for which it was not designed.
It is the responsibility of the owner to make sure all personnel read
this manual prior to using this device. It is also the responsibility of
the device owner to keep this manual intact and in a convenient
location for all to see and read. If the manual is lost or not legible,
contact Norco Industries, Inc. for a free replacement. If the operator
is not fluent in English, the product and safety instructions shall be
read to and discussed with the operator in the operator's native
language by the purchaser/ owner or his designee, making sure
that the operator comprehends its contents.
This floor service jack is covered by a Limited Lifetime Warranty.
For details see the back cover of Norco's product catalog.
WARNING
• Do not move or dolly the vehicle while on the jack.
• Do not use the jack beyond its rated capacity. Lift only dead
weight.
• Center load on saddle. Be sure setup is stable. Off-center
loads can cause jack failure and/or loss of load.
• Use the jack on a hard level surface. The jack must be free to
roll and reposition itself while lifting or lowering the vehicle.
• Do not modify the jack or use saddle adapters or saddle
extenders unless approved or supplied by Norco.
• Always lower the jack slowly and carefully.

SETUP

PURGING AIR FROM THE HYDRAULIC SYSTEM

a. Open the release valve by pulling and rotating the handle
clockwise 1/4 turn while simultaneously activating the foot
pump 10 to 15 times or activating the air button for 30
seconds.
b. Close the release valve by turning the handle in a
counterclockwise direction.
c. Pump the jack until the lift arm is extended to maximum
height.
d. If the condition remains, repeat steps "a" through "c" until all
the air is purged from the system.
