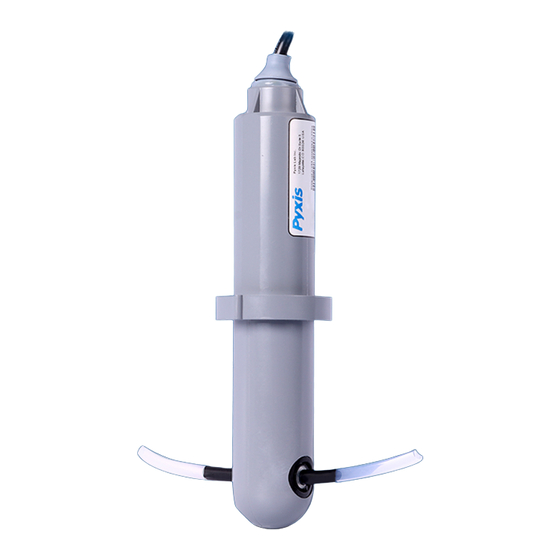

Bleach concentration sensor
Hide thumbs Also See for ST-600 Series:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyxis ST-600 Series

  • Page 2 ST-600 Series Bleach Concentration Sensor User Manual April 28, 2021 Rev. 3.01 Pyxis Lab, Inc. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com © 2017 Pyxis Lab, Inc. Pyxis Lab Proprietary and Confidential...
  • Page 3: Table Of Contents

    8 Sensor Maintenance and Precaution 8.1 Methods to Cleaning the ST-600 Series ....... 17 8.2 Storage .
  • Page 4 Pyxis Lab, Inc. Standard Limited Warranty Pyxis Lab warrants its products for defects in materials and workmanship. Pyxis Lab will, at its option, repair or replace instrument components that prove to be defective with new or remanufactured components (i.e., equivalent to new).
  • Page 5: Introduction

    ST-600 Series sensor can be connected to any device that accepts an isolated or non-isolated 4–20mA input or RS-485 Modbus. As with all Pyxis inline sensors, the ST-600 Series sensor can be wirelessly accessed via Bluetooth/WiFi when used in conjunction with the MA-WB Bluetooth Adapter or PowerPACK Series Aux- iliary Box and the uPyxis®...
  • Page 6: Specifications

    IP67 Regulation CE/RoHS With Pyxis’s continuous improvement policy, these specifications are subject to change without notice. 3 Unpacking Instrument Remove the instrument and accessories from the shipping container and inspect each item for any damage that may have occurred during shipping. Verify that all accessory items are included. If any item is missing or damaged, please contact Pyxis Lab Customer Service at service@pyxis-lab.com.
  • Page 7: Standard Accessories

    P/N: ST-001 • 7-Pin Female Adapter/Flying Leads Cable (2 ft) P/N: MA-1100 • Clear Teflon Tubing 1/4” OD (6”) Adapter • User Manual available online at https://pyxis-lab.com/support/ 3.2 Optional Accessories Figure 1. ST-600 Series User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 8: Installation

    This method should ideally in a vertical line run to avoid chlorine gas bubble interfer- ence. Pyxis also offers 2” and 3” inline tee assemblies as an accessory option if required. To properly install the ST-600 Series sensor into the ST-001 Tee Assembly, follow the steps below: 1.
  • Page 9: Teflon Tubing

    Users can use conventional 1/4” OD compression fittings to connect desired inlet and outlet bleach line size to the ST-600 Series. This method should ideally in a vertical line run to avoid chlorine gas bubble interference.
  • Page 10: Connecting Via Bluetooth

    4.4 Connecting via Bluetooth A Bluetooth adapter (P/N: MA-WB) can be used to connect a ST-600 Series sensor to a smart phone with the uPyxis® Mobile App or a computer with the uPyxis® Desktop App. Figure 4. Bluetooth connection to ST-600 Series sensor 4.5 Connecting via USB...
  • Page 11: Setup And Calibration With Upyxis® Mobile App

    5 Setup and Calibration with uPyxis® Mobile App 5.1 Download uPyxis® Mobile App Download uPyxis® Mobile App from Apple App Store Google Play. Figure 6. uPyxis® Mobile App installation ST-600 Series User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 12: Connecting To Upyxis® Mobile App

    1. Open uPyxis® Mobile App. 2. On uPyxis® Mobile App, pull down to refresh the list of available Pyxis devices. 3. If the connection is successful, the ST-600 Series and its Serial Number (SN) will be displayed (Figure 4. Press on the ST-600 Series sensor image.
  • Page 13: Calibration Screen And Reading

    When connected, the uPyxis® Mobile App will default to the Calibration screen. From the Calibration screen, you can perform calibrations by pressing on Zero Calibration, Slope Calibration, and 4–20mA Span. Follow the screen instructions for each calibration step. Figure 8. ST-600 Series User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 14: Diagnosis Screen

    5.4 Diagnosis Screen From the Diagnosis screen, you can check the diagnosis condition as well as Export & Upload. This feature may be used for technical support when communicating with service@pyxis-lab.com. Figure 9. ST-600 Series User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 15: Device Info Screen

    Desktop application. Double click the uPyxis.Setup.exe file to install. Figure 11. uPyxis® Desktop App installation Click Install to start the installation process. Follow the screen instructions to complete the USB driver and uPyxis® installation. ST-600 Series User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 16: Connecting To Upyxis® Desktop App

    Connect via USB-RS485 (Fig- ure 12). 4. If the connection is successful, the ST-600 Series sensor and its Serial Number (SN) will be displayed in the left pane of the uPyxis® window. NOTE After the sensor and Bluetooth is powered up, it may take up to 10 seconds for the adapter to establish the wireless signal for communication.
  • Page 17: Information Screen

    To calibrate the device, click on Calibration. On the Calibration screen there are three calibration tabs, Zero Calibration, Slope Calibration, and 4-20mA Span. The screen also displays the reading of the device. The reading refresh rate is every 4 seconds. Figure 14. ST-600 Series User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 18: Diagnosis Screen

    After the device has been calibrated and installation has been completed, to check diagnosis, click on Diag- nosis. When in the Diagnosis screen you can view the Diagnosis Condition of the device. This feature may be used for technical support when communicating with service@pyxis-lab.com. Figure 15. 7 Outputs 7.1 4–20mA Output Setup...
  • Page 19: Adjusting 4-20Ma Span

    Figure 17. 7.3 Communication using Modbus RTU The ST-600 Series sensor is configured as a Modbus slave device. In addition to the bleach % value, many operational parameters, including warning and error messages, are available via a Modbus RTU connection.
  • Page 20: Sensor Maintenance And Precaution

    ST-600 Series sensor is used as part of an automated control system. When used to control product dosing, it is suggested that the automation system be configured to provide backup to limit potential product overfeed, for example by limiting pump size or duration, or by alarming if the pumping rate exceeds a desired maximum limit.
  • Page 21: Storage

    To clean the ST-600 Series sensor, soak the lower half of the sensor in 100 mL inline sensor cleaning solution for 10 minutes. Rinse the ST-600 Series sensor with distilled water and then check for the flashing blue light inside the ST-600 Series sensor quartz tube. If the surface is not entirely clean, continue to soak the ST-600 Series sensor for an additional 10 minutes.
