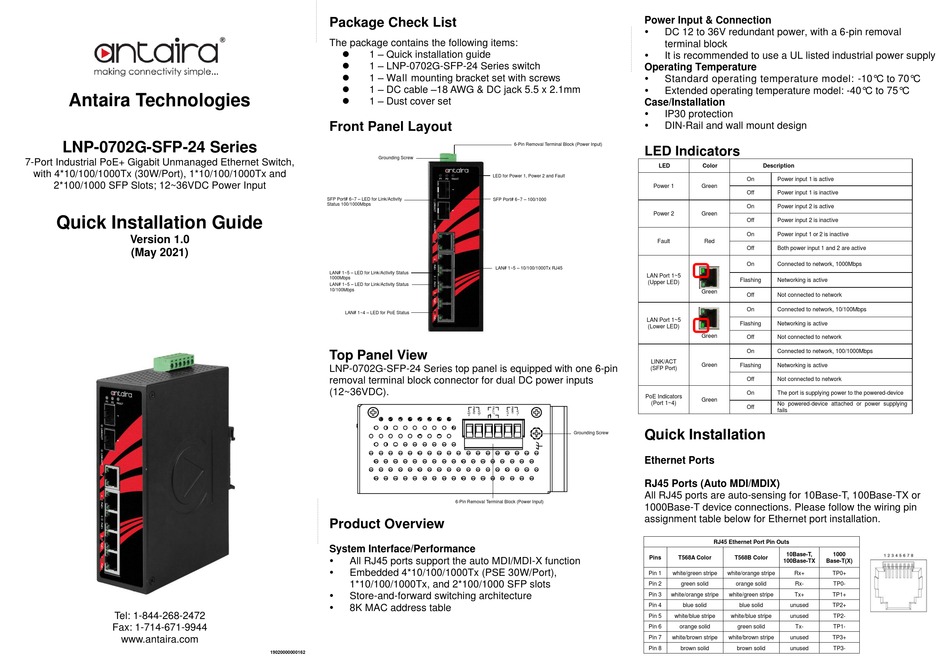

ANTAIRA LNP-0702G-SFP-24 Series Quick Installation Manual

Antaira Technologies
LNP-0702G-SFP-24 Series
7-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch,
with 4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx and
2*100/1000 SFP Slots; 12~36VDC Power Input
Quick Installation Guide
Version 1.0
(May 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNP-0702G-SFP-24 Series switch
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set

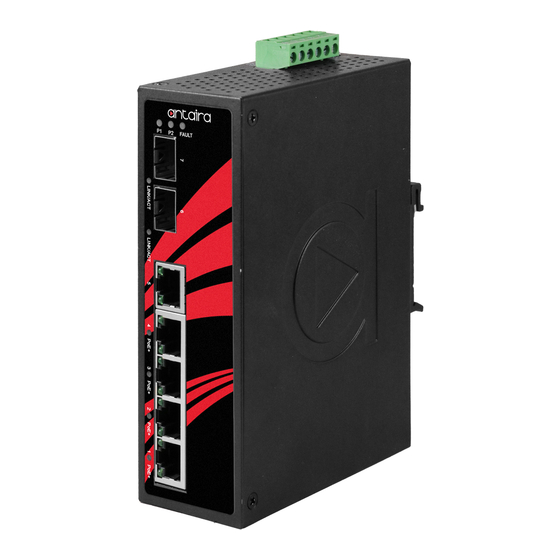

Front Panel Layout

Grounding Screw

SFP Port# 6~7 – LED for Link/Activity
Status 100/1000Mbps
LAN# 1~5 – LED for Link/Activity Status
1000Mbps
LAN# 1~5 – LED for Link/Activity Status
10/100Mbps
LAN# 1~4 – LED for PoE Status

Top Panel View

LNP-0702G-SFP-24 Series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~36VDC).

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI/MDI-X function

Embedded 4*10/100/1000Tx (PSE 30W/Port),
1*10/100/1000Tx, and 2*100/1000 SFP slots

Store-and-forward switching architecture

8K MAC address table
19020000000162
6-Pin Removal Terminal Block (Power Input)
LED for Power 1, Power 2 and Fault
SFP Port# 6~7 – 100/1000
LAN# 1~5 – 10/100/1000Tx RJ45
Grounding Screw
6-Pin Removal Terminal Block (Power Input)
Power Input & Connection

DC 12 to 36V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design

LED Indicators

LED Color Description
On Power input 1 is active
Power 1 Green
Off Power input 1 is inactive
On Power input 2 is active
Power 2 Green
Off Power input 2 is inactive
On Power input 1 or 2 is inactive
Fault Red
Off Both power input 1 and 2 are active
On Connected to network, 1000Mbps
LAN Port 1~5
Flashing Networking is active
(Upper LED)
Green
Off Not connected to network
On Connected to network, 10/100Mbps
LAN Port 1~5
Flashing Networking is active
(Lower LED)
Green
Off Not connected to network
On Connected to network, 100/1000Mbps
LINK/ACT
Green
Flashing Networking is active
(SFP Port)
Off Not connected to network
On The port is supplying power to the powered-device
PoE Indicators
Green
(Port 1~4)
No powered-device attached or power supplying
Off
fails

Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI/MDIX)

All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.

RJ45 Ethernet Port Pin Outs

10Base-T,
Pins T568A Color T568B Color
100Base-TX
Pin 1 white/green stripe white/orange stripe Rx+
Pin 2 green solid orange solid Rx-
Pin 3 white/orange stripe white/green stripe Tx+
Pin 4 blue solid blue solid unused
Pin 5 white/blue stripe white/blue stripe unused
Pin 6 orange solid green solid Tx-
Pin 7 white/brown stripe white/brown stripe unused
Pin 8 brown solid brown solid unused
1000
Base-T(X)
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
