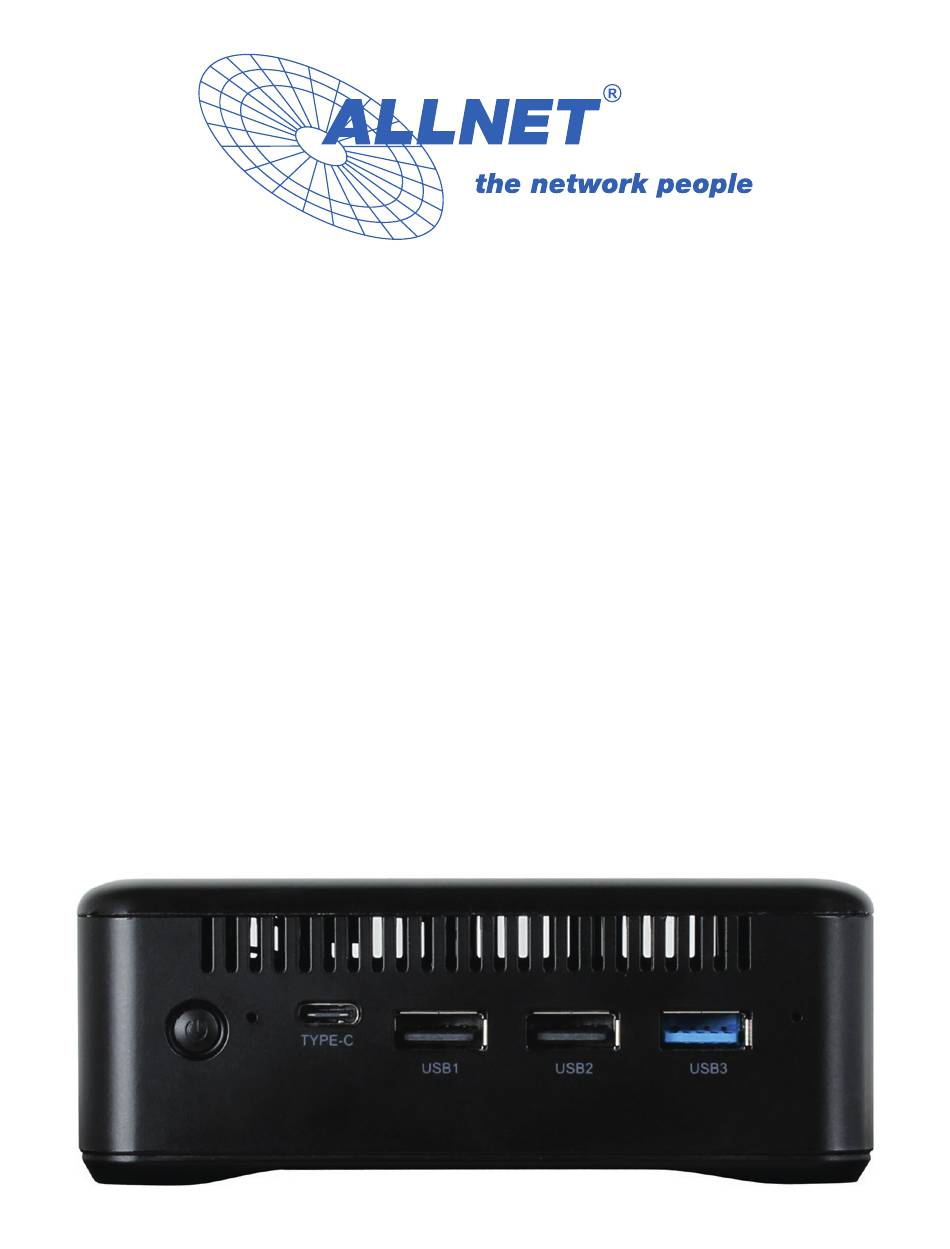

- Page 1 ALLNET DS5 Manual Art. Nr. 213055, 213056, 212203, 213051, 213057, 213052, 213054...
-
Page 2: Table Of Contents
Content Package contents DS5 Connection overview How is the storage space expandable? How to set up a Wi-Fi connection? How to perform multi-screen interaction? How to use the voice remote control? How to change the resolution? How to connect via Bluetooth? -
Page 3: Package Contents
Package contents ALLNET DS5 HD 8K cabel Manual Voice Manual Mains adapter control 12V / 2A... -
Page 4: Ds5 Connection Overview
DS5 Connection overview 1. DC INPUT 6. Power switch 2. 4K HD transmission 7. Type-C 3. 8K HD transmission 8. USB 2.0 4. 4K HD input 9. USB 3.0 5. Network interface... - Page 5 TV for Internet access. Power port You can plug the DC plug (5.5 x 2.1 mm) of the power supply unit into the mains connection of the ALLNET DS5 so that it starts up.
- Page 6 Power button You can use this button to switch the unit on and off. • If you brie y press the power button while the ALLNET DS5 is switched on, it switches to standby mode. • If you brie y press the power button in standby mode, the ALLNET DS5 is woken up again.
-
Page 7: How Is The Storage Space Expandable
How is the storage space expandable? 1. Remove the 4 oor mats on the underside of the housing. 2. Remove the screws at the four corners and remove the lower casing along the gap. Note: Do not use too much force when removing the lower casing so as not to damage it. -
Page 8: How To Set Up A Wi-Fi Connection
3. Insert the prepared SSD/HDD into the interface of the enclosure, attach the rear cover and the bottom enclosure and fasten the screws. How to set up a Wi-Fi connection? 1. Locate the WiFi icon at the bottom of the computer interface and click OK to access the settings interface. -
Page 9: How To Perform Multi-Screen Interaction
2. Click on the WiFi Switch at the top right to open and connect it. How to perform multi-screen interaction? Smartphone Tablet PC device... -
Page 10: How To Use The Voice Remote Control
How to use the voice remote control? 1. Connect the PC box to the TV set and plug in the USB receiver. 2. Switch on the remote control, insert 2 AAA batteries in the battery compartment and locate the "Language" shortcut key on the remote control. - Page 11 2. Locate the appropriate option following the steps in the illustration below.
- Page 12 3. Locate the appropriate signal line that you have connected. 4. Click the resolution to select it automatically. (Before setting, make sure your TV supports 8K resolution, HD 8K cable requires version 2.1).
-
Page 13: How To Connect Via Bluetooth
How to connect via Bluetooth? 1. Locate the settings icon at the bottom of the interface and click OK to open the settings interface. 2. Locate the appropriate option following the steps in the illustration below. -
Page 14: Technical Data
3. Click the switch at the top right to open and connect Bluetooth. Technical data WIFI6 MIMO 2,4/5GHz... - Page 15 Power supply Real-time video decoder for MPEG-1, Video MPEG2, MPEG-4, H.263, H.264, H.265, decoding VC-1, VP9, VP8, MVC, AV1 Video encoding Product dimension Packaging unit (G.W.) HD Port Operating temperature...
-
Page 16: Simple Troubleshooting
Simple troubleshooting Problem Possible cause Solution approach Make sure that the unit is No display after The mains cable is not connected to the mains. switching on connected properly. 1. Reconnect the headset. 2. Press the mute button 1. The audio cable is not to turn the sound back on connected. - Page 17 Mini-PC; Keep it pressed for 3 no reaction for a work properly. seconds; The Mini-PC restarts long time Update DS5 Player 1. Install the driver "Release_DriverAssitant". 2. Start RKDevTool.exe 3. Connect the USB-C port to the PC and the player and connect the power supply.
-
Page 18: Declaration Of Conformity
9. The device will reboot automatically after the update process.For the download, please contact our support team at support@allnet.de. Declaration of conformity ALLNET GmbH Computersysteme declares that the ALLNET DS5 devices are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC or 2014/53/EU. - Page 19 The RoHS directive aims to restrict certain dangerous substances commonly used in electronic and electronic equipment. This RoHS compliant symbol indicate the component is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromi- um (Hex-Cr), Polybrominated biphenyls (PBB), and Polybromi- nated diphenyl ethers (PBDE).
- Page 20 This symbol is new RED aligns the previous directive with the New Legislative Framework for the marketing of products. The revision takes account of the need for improved market surveillance, in particular for the traceability obligations of manufacturers, importers and distributors. It provides improved instruments for market surveillance, such as the possibility to require prior registration of radio equipment, within those categories affected by low levels of compliance.
- Page 21 This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over at a designated collection point for the recyc- ling of waste electical and electronic equipment.
- Page 22 CE-Declaration of Conformity For the following equipment: ALLNET DS5 Germering, 8th of November, 2022 The safety advice in the documentation accompany- ing the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device.
- Page 23 This equipment is intended to be operated in all countries. This declaration is made by ALLNET GmbH Computersysteme Maistraße 2 82110 Germering Germany Germering, 08.11.2022...
- Page 24 ALLNET GmbH Computersysteme Maistraße 2 82110 Germering Germany www.allnet.de...
