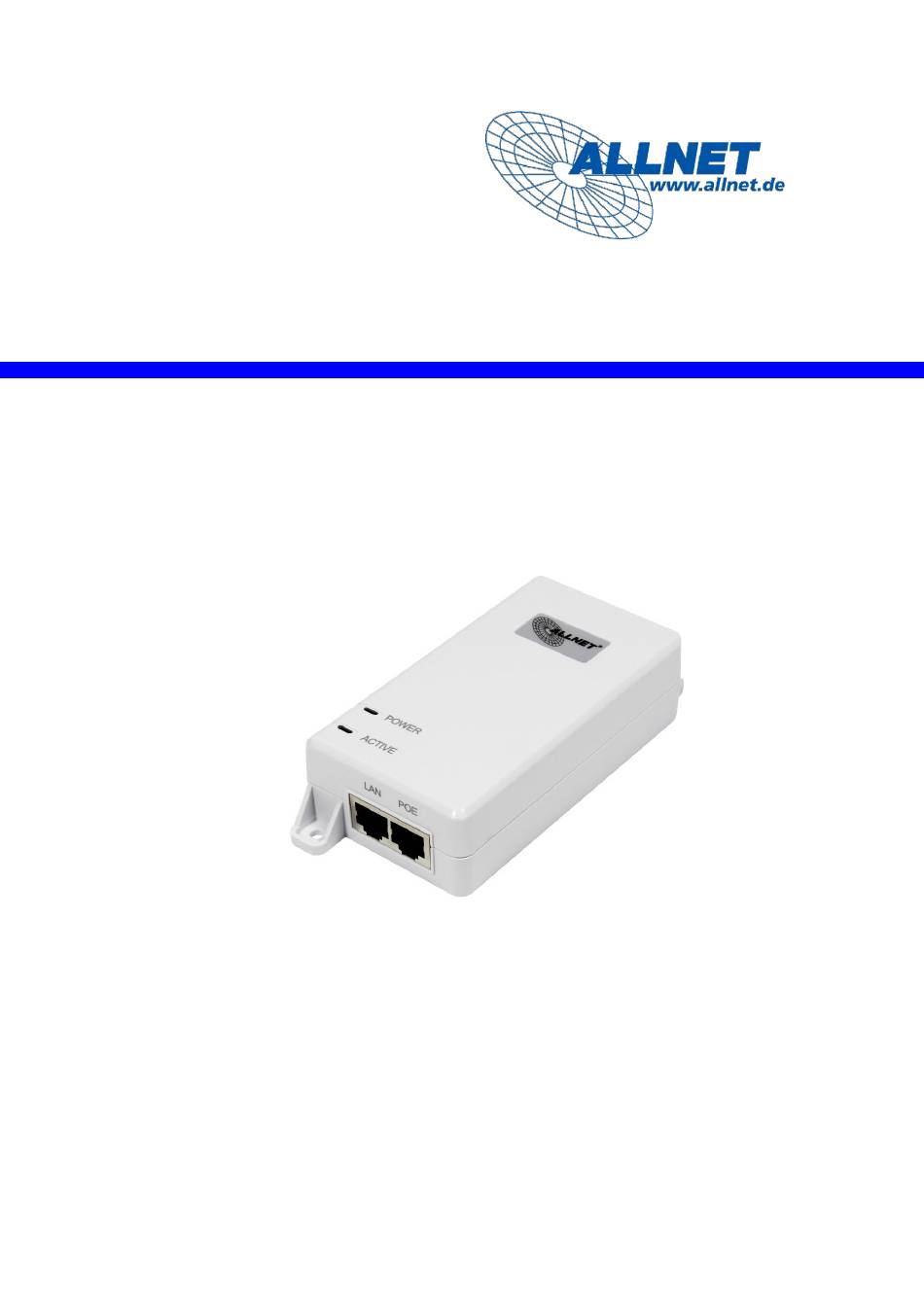

- Page 1 ALL0488V6 PoE-Injector User Manual...
- Page 2 1. Overview Product Description The ALL0488V6 is fully compliant with IEEE802.3at standard. It delivers up to 30W output power. By using this device, both data and electrical power can be simultaneously delivered through a single CAT.5 (or better) ethernet cable.
- Page 3 The device lights up green as soon as the ALL0488V6 POWER LED is supplied with power Lights up green as soon as the ALL0488v6 supplies ACTIVE an end device with PoE Connect this port to your network DATA IN or PC...
- Page 4 2. Installation Use the supplied power cable to connect the ALL0488v6 to a power outlet. Connect the "LAN IN" port of the ALL0488v6 to the network/switch. Connect the PoE device to the "PoE" port. © ALLNET GmbH Computersysteme 2022 – All rights reserved...
- Page 5 IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV • EMS: IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM • IEC61000-4-6(CS) 10V(150kHz~80MHz) • IEC60068-2-6(Vibration) • IEC60068-2-27(Impact) • Immunity: IEC60068-2-32(Free Fall) • Marks: CE; FCC © ALLNET GmbH Computersysteme 2022 – All rights reserved Errors and changes reserved...
- Page 6 ALLNET GmbH Computersysteme declares that the device ALL0488v6 is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU. The Declaration of conformity can be found under this link: http://ce.allnet.de ALLNET GmbH Computersysteme Maistrasse 2 82110 Germering Tel.: +49 (0)89 894 222 - 22...
- Page 7 Do not use this product near water sources. Make sure to connect the cables to the correct ports. Do not obstruct the ventilation slots on the device. © ALLNET GmbH Computersysteme 2022 – All rights reserved Errors and changes reserved...
