Summary of Contents for Allnet ALL1682504

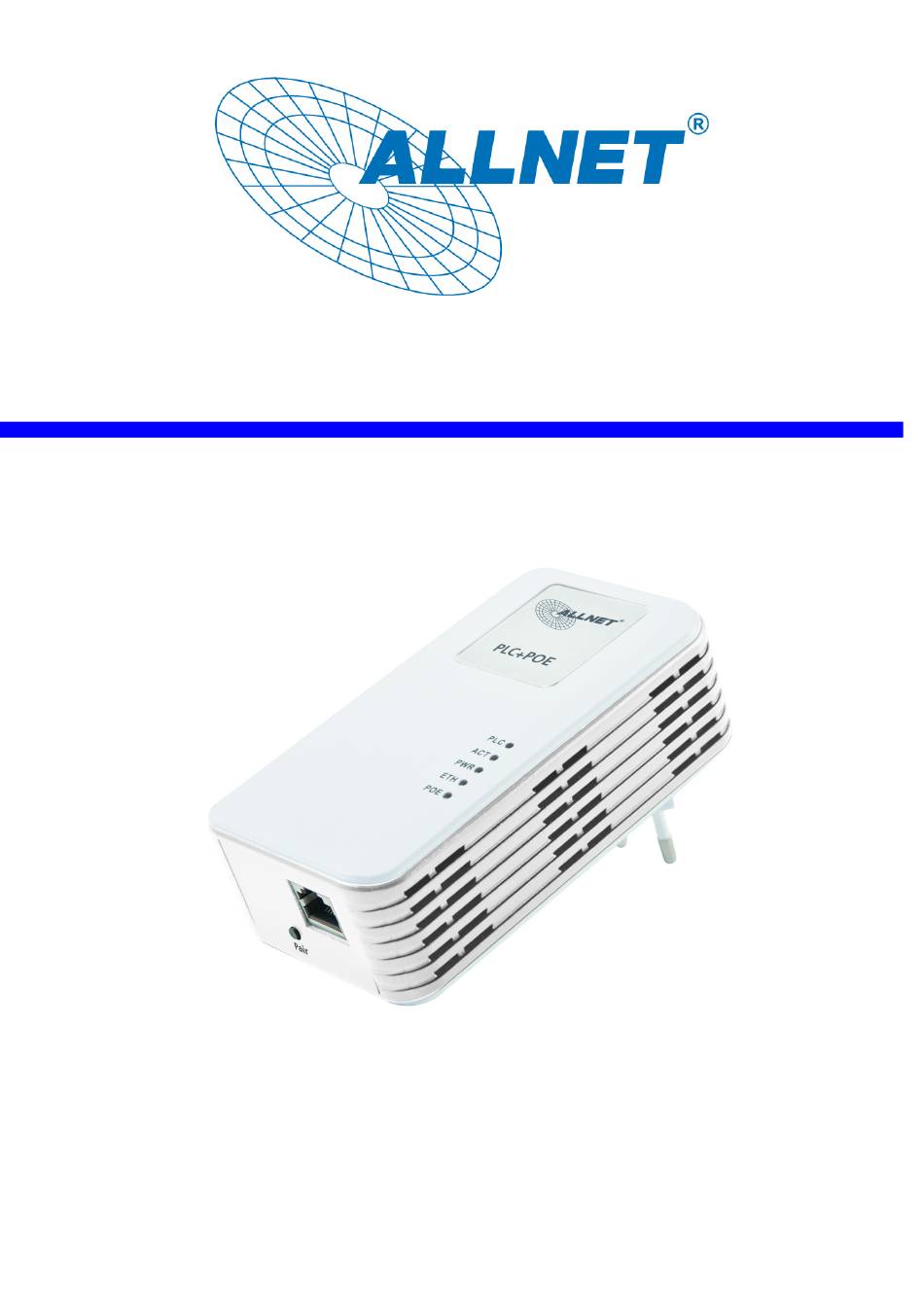

- Page 1 ALL1682504 500 Mbps PLC Ethernet Bridge + PoE 802.3at QUICK INSTALLATION...
- Page 2 REFACE This document describes installation of the ALL1682504 PLC Ethernet Bridge. Please read this document before installing the product. O THE NSTALLER This publication contains the following sections: Important safety instructions The first thing you need to know before you begin to install ...
-
Page 3: Important Safety Instructions
If the product has been exposed to rain or water. If the product does not operate normally when the operating instructions are followed. If the product exhibits a distinct change in performance. © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 3 Errors and omissions excepted... - Page 4 To meet the safety regulation, the longest distance between powerline carrier devices will be limited at 100 meter and for in-house use only. More than 100 meter will cause the signal reduction or data loss. © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 4...
- Page 5 Plug the provided Ethernet cable into the RJ45 connector of the Bridge and plug the other end of the cable into the Ethernet port on the wireless AP. © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 5 Errors and omissions excepted...
- Page 6 User diagram: © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 6 Errors and omissions excepted...
-
Page 7: Specification
Operating : 10~85% Non-Condensing Storage : 5~90% Non-Condensing 100 ~ 240 VAC 50/60Hz Power Source Power ca. 2W (Normal mode), less than 0.5W (Standby mode) Consumption Certification © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 7 Errors and omissions excepted... - Page 8 © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 8 Errors and omissions excepted...
- Page 9 Push the device’s “PAIR” button for 10-15 sec seconds. You will see the device’s LEDs are all turning off and the device will restart. The device’s setting resets to the “factory defaults”. © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 9...
- Page 10 60sec. 2. Start the Power Paket Utility from the provided CD. After the start connect your PC directly to one of the 2 Powerline-Bridges. © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 10 Errors and omissions excepted...
- Page 11 3. Start the Software and click on “Map View”. Approve that the device connected via LAN-cable appears in the list. © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 11 Errors and omissions excepted...
- Page 12 If all devices are plugged in next to each other you can afterwards also check the data throughput. If you think that something is wrong with the powerline-bridges, please contact the ALLNET-support. © 2015 ALLNET GmbH Computersysteme - All rights reserved Page 12 Errors and omissions excepted...
