6 Enabling software modules in MultiSmart

MultiSmart is supplied in different configurations in different markets. To check which software modules

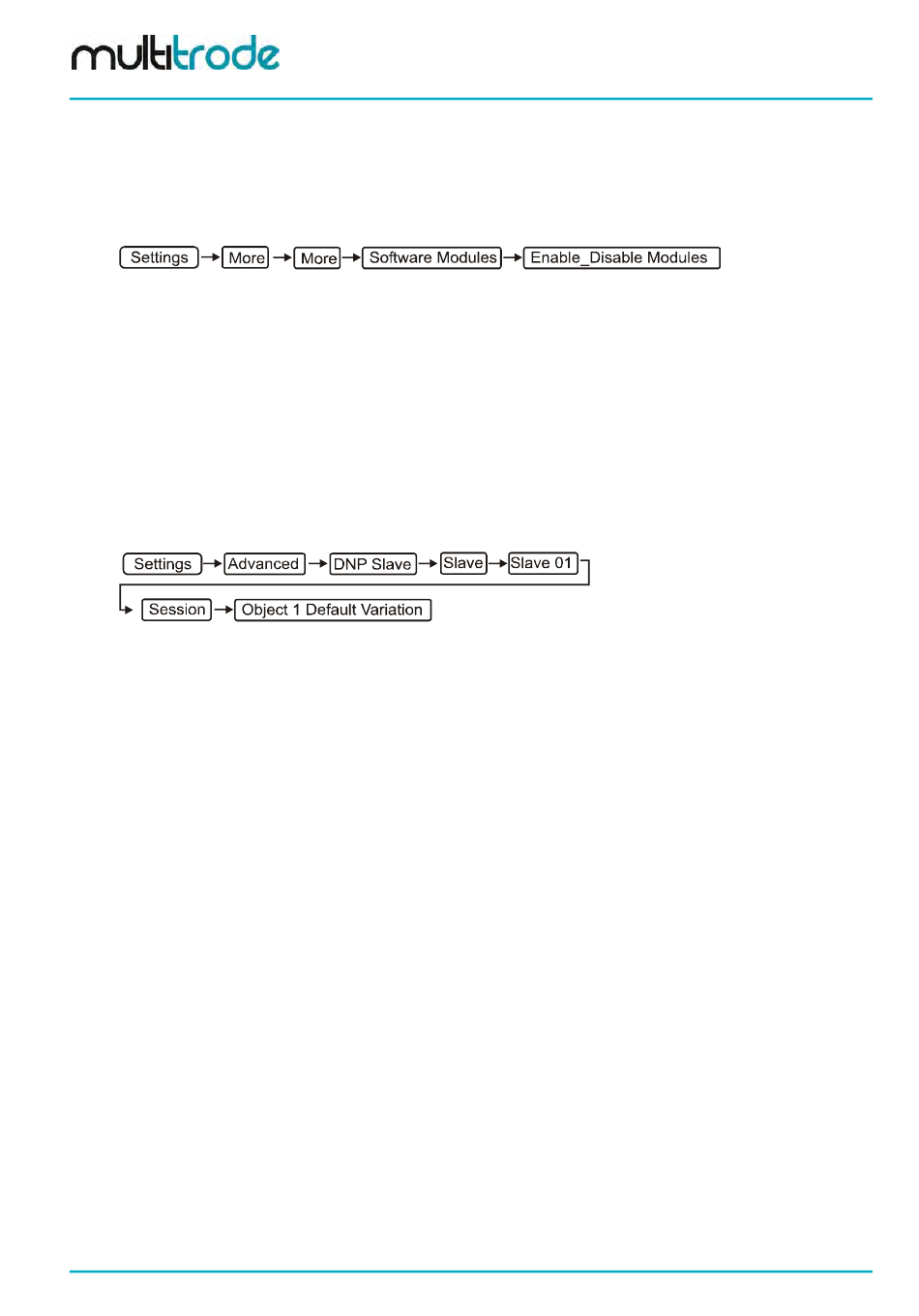

are enabled on your unit, from the main screen press
This lists which modules are enabled and disabled. To enable a module which is currently disabled,
contact MultiTrode. Some modules have a price tag, others do not incur any cost.

7 DNP3 configuration

MultiSmart DNP3 Level 2 is fully compliant to the standard as can be seen by the audit done by Goanna
Technologies in 2007. See www.multitrode.com for the compliance document.
Not all DNP3 masters (Master Telemetry Units or IO servers in the SCADA front end) support all objects
or object types. Usually their profile document will describe any limitations.
MultiSmart has great flexibility in the slave configuration to match any limitations in the master.
For example, the current version of ClearSCADA doesn't support binary input with status – the
MultiSmart slave can be re-configured to handle this:
Change the value to Single bit Bin.

7.1 DNP security

DNP security is coming soon, in v2.0 of MultiSmart, which is expected in Q3 2008.

7.2 Common things to look for in profile document of DNP3 master

Check which object variations are supported. Our default list is:
•
Object 1 (Binary inputs) – 2 (binary input with status)
•
Object 2 (Binary input events) – 3 (binary input event with relative time)
•
Object 10 (Binary outputs) – 2 (binary output with status)
•
Object 11 (Binary output events) – 2 (binary output event with time)
•
Object 20 (Counters) – 1 (32 bit counter with status)
•
Object 21 (Frozen counters) – 1 (32 bit frozen counter with status)
•
Object 22 (Counter events) – 5 (32 bit counter event with time)
•
Object 23 (Frozen counter events) – 1 (32 bit frozen counter event without time)
•
Object 30 (Analog inputs) – 1 (32 bit analog input)
•
Object 32 (Analog input events) – 3 (32 bit analog event with time)
•
Object 40 (Analog outputs) – 1 (32 bit analog output)
•
Object 42 (Analog output events) – 1 (32 bit analog output event without time)
