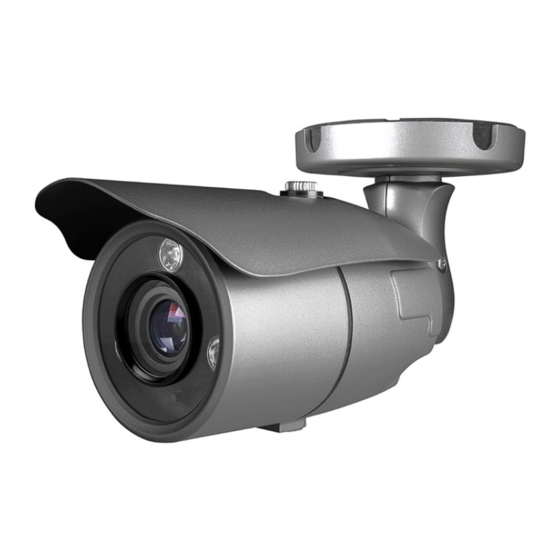

Digital Watchdog MEGAPix DWC-MB62DiVT Quick Start Manual

Quick Start Guide
DWC-MB62DiVT
Default Login Information: admin | admin
When logging into the camera for the first time, you will be prompted
to set up a new password. You can set the new password using the
DW® IP Finder™ software or directly from the camera's browser menu.
WHAT'S IN THE BOX
Quick
Sunshield cover &
DC Plug Cable Test Video Cable Setup and
Sunshield cover &
Sta Wrench 1
Torx Wrench DC Plug Cable
Test Video Cable
Installation
Guide
Moisture
Screws and
Absorber
Plastic
1 set and
Anchors -
Absorber
4pcs
Guide
Screw & Moisture absorber &
Manual
Screw & Moisture absorber &
Absorber Guide
Template Sheet Manual
Sun-shield
Absorber Guide
Mounting Cover and
1
Template Adjusting
Screws
Sunshield cover &
Torx Wrench DC Plug Cable Test Video Cable
Waterproof
Cap and 1 set
Gasket
NOTE: Download all your support materials and tools in one place
Screw & Moisture absorber &
1. Go to: http://www.digital-watchdog.com/resources Template Sheet Manual
Absorber Guide
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for the
initial setup. It is recommended that the user read the entire instruction manual
for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
digital-watchdog.com
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the
camera weight.
2. Do not let the cables get caught in improper places or the electric line
cover can be damaged. This may cause a short or fire.
3. CAUTION: These servicing instructions are for use by qualified service
personnel only. To reduce the risk of electric shock do not perform any
servicing other than that contained in the operating instructions unless
you are qualified to do so.
4. This product is intended to be supplied by a UL Listed Power Supply
Unit marked "Class 2" or "LPS" or "PS2" and rated 12 Vdc, 0.43A min.
5. The wired LAN hub providing power over the Ethernet (PoE) in
accordance with IEEE 802-3af shall be a UL Listed device with the
output evaluated as a Limited Power Source as defined in UL60950-1
or PS2 as defined in UL62368-1.
6. Unit is intended for installation in a Network Environment 0 as defined
in IEC TR 62102. As such, associated Ethernet wiring shall be limited to
inside the building.
7. Install the moisture packet in the base of the camera's lens.
a. Remove the moisture absorber from the packaging.
b. Cut the card and folder along the dotted line.
c. Place the moisture absorber behind the camera's lens module.
See the drawing for more information.
1 set
8. Using the mounting template sheet or the camera itself, mark and drill
the necessary holes in the wall or ceiling.
1 set
1 set
Absorber attachment point
STEP 2 – POWERING THE CAMERA
Pass the wires through the mount bracket and make all necessary
connections.
1. NETWORK CONNECTIONS – If you are using a PoE Switch,
connect the camera using an Ethernet cable for both data and
power.
2. NETWORK CONNECTIONS – If you are using a non-PoE switch,
connect the camera to the switch using an Ethernet cable
for data transmission and use a power adapter to power the
camera.
Power requirements Power consumption
DC 12V, PoE (IEEE
DC12V: max 5.2W
802.3af Class 3).
PoE: max 7.0W
(Adapter not included)
2
1
Ethernet
Ethernet
Cable
Cable
Power
STEP 3 – INSTALLING THE CAMERA
1. Secure the camera to the mounting surface using the screws and
anchors included.
2. To use the camera's waterproof wiring:
a. Install the LAN cable into a .
b. b will be assembled
to a with a 1/4 turn.
b
c. Thread c tightly to b .
a
NOTE:
To ensure moisture seal, make sure the o-ring is in place
between a and b . In extreme environments use of an
outdoor rated sealer is recommended.
NOTE: When using the waterproof cap, crimp the RJ45
connector after passing the cable through the
waterproof cap.
c
Quick Start Guide
