Marvel 3BAR-BD Datasheet

www.dexpress.com
This Data Sheet Includes Information On
Marvel
• Product Model Number (s):
Chateau Collection Wine and Beverage Refrigerator
with Overlay Frame Glass Door:
3BAR-BD
• Dimensions (Actual Size)
Overall depth NOT including
panel or handle:
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
• Additional Information
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field if model does NOT include
-LL or -LR.
• Door lock (when -LL, left hand hinge or -LR, right hand
hinge is added to the model number), top center of
door. Door with lock is not field reversible.
• Full-length designer bar handle.
• Wine racks and beverage shelves may be fully
extended at 90° door opening.
• All models have shelf fronts of clear, solid maple
(unfinished).
• Overlay glass door accepts custom frame. Custom
overlay rails and stiles. Supplied by customer, see
page 2.
• 3SBAR-BD: Black cabinet, Designer overlay frame
glass door, high gloss ebony interior.
• Shipping weight: 125 pounds.
• U.L. Listed.
See pages 2 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without
notice. Dimension Express is a FREE service bureau and is updated daily,
it makes far more sense to spend the time necessary to request new Data
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
DIMENSION EXPRESS
•
•
22 5/8"
21 1/4"
35"
34 1/4"
34 1/4"
Width: 14 7/8"
3"
16 3/8"
15"
24"
34 1/2"
•
318
35" max
34 1/4" min
35" max
(not to scale)
34 1/4" min
• Call Dimension Express if you have any questions at (800) 940-2059 •
• Always refer to a current Code at a Glance or manufacturer directory •
• Data Sheet codes change on the first of each quarter at 12:01am •
Fax on Demand (925) 284-3558
14 7/8"

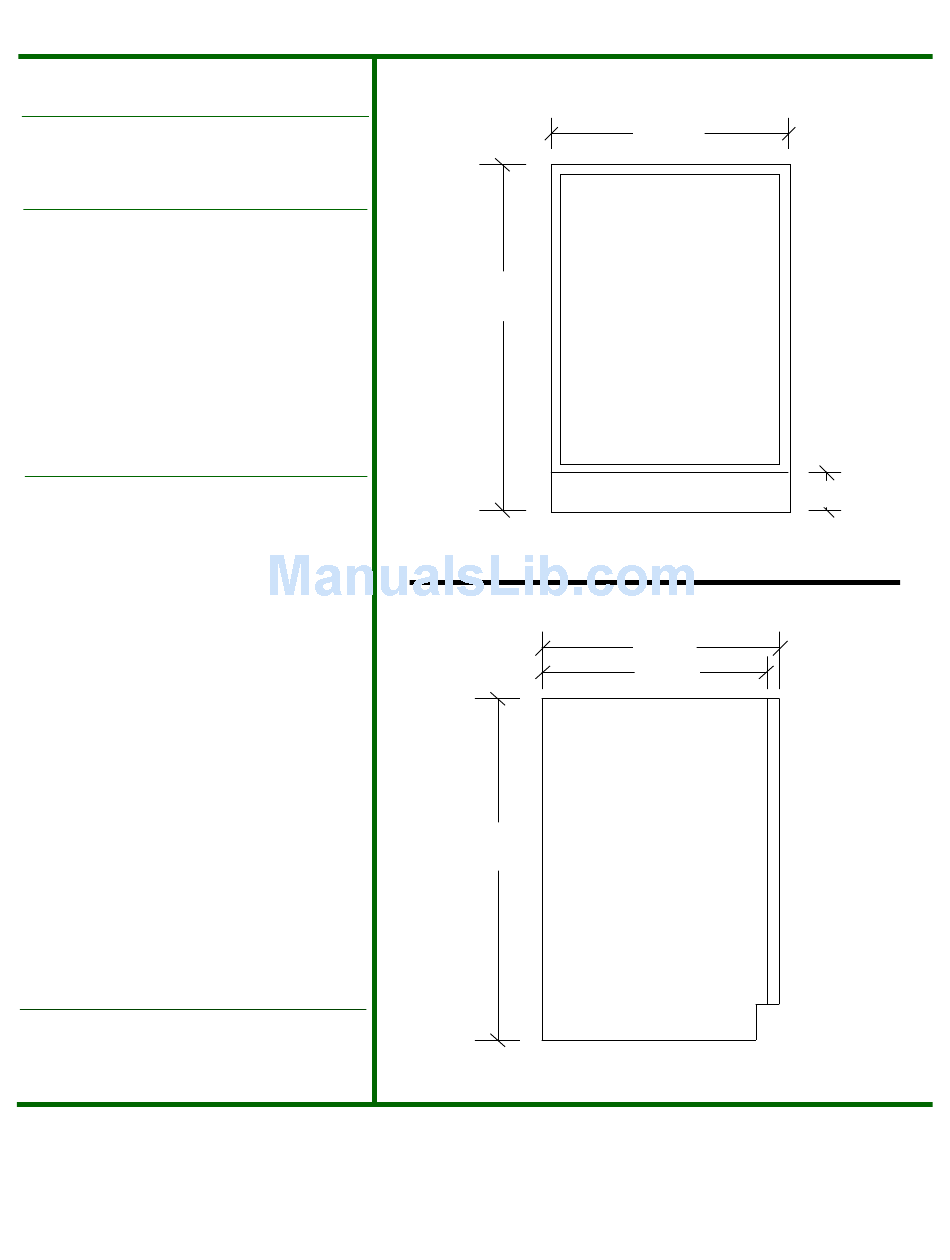

Front View
(not to scale)
22 5/8"
21 1/4"

Side View

BN • A318B149 • • 072808 • 141346 • 79530
3"
