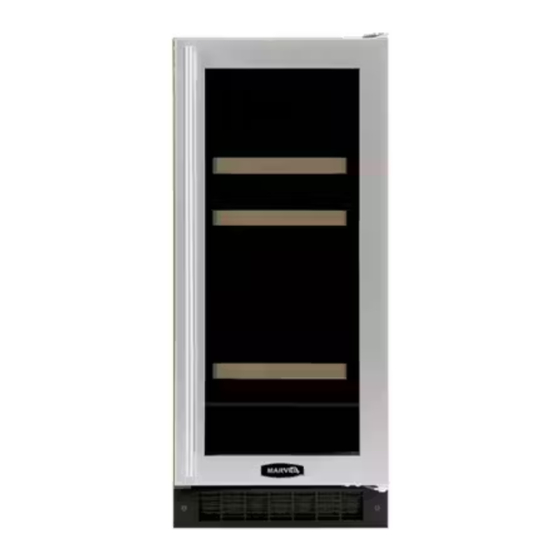

Marvel Luxury Series Installation, Operation And Maintenance Instructions

Beverage and wine refrigerator

Advertisement

Quick Links

MARVEL
Installation
Operation
and
Maintenance
Instructions
Beverage and Wine
Refrigerator
Luxury Series
3BARM
6BARM
6OBARM

Advertisement

Table of Contents
loading

Summary of Contents for Marvel Luxury Series

  • Page 1 MARVEL Installation Operation Maintenance Instructions Beverage and Wine Refrigerator Luxury Series 3BARM 6BARM 6OBARM...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Unpacking your refrigerator..........2 Removing the packaging..........2 Warranty Registration...........2 Installing your refrigerator..........3 Selecting the location..........3 Outdoor installation.............3 Cabinet Clearances.............3 Leveling legs...............3 Grounding method............3 Electrical Requirements..........3 Using Your MicroSentry™ Control........4 Dimensions for 3BARM glass door........6 Recommended Rough in Opening Dimensions for 3BARM glass door..........6 Dimensions for 3BARM glass overlay door.......7 Recommended Rough in Opening Dimensions...
  • Page 3: Unpacking Your Refrigerator

    UNPACKING YOUR BEVERAGE AND WINE REFRIGERATOR Note to Customer Important Safety Instructions This merchandise was carefully packed and thoroughly Warnings and safety instructions appearing in this inspected before leaving our plant. Responsibility for its safe guide are not meant to cover all possible condi- delivery was assumed by the retailer upon acceptance of the tions and situations that may occur.
  • Page 4: Installing Your Refrigerator

    For this reason it is important this area to not be obstructed and be kept clean. Marvel does not rec- ommend the use of custom made grilles as air flow may be Do not use an extension cord restricted because of inadequate openings.
  • Page 5: Using Your Microsentry™ Control

    “E1” will flash on the display, and To set temperature set point, press and continue to hold an alarm will sound. Please call Marvel Customer Service or “SET” button. After one second, set point will be displayed.
  • Page 6 USING YOUR MicroSentry™ REFRIGERATOR CONTROL that caused the alarm continues, the alarm code will contin- ue to flash and will sound for 20 seconds every 60 minutes. Turning Refrigerator Off To turn refrigerator off, press and hold “ON/OFF” button for three (3) seconds. “OFF” will appear on the display Additional MicroSentry™...
  • Page 7: Dimensions For 3Barm Glass Door

    DIMENSIONS FOR 3BARM GLASS DOOR 37” (93.98cm) 16-9/16” (39.52cm) 25-7/32 (64.06cm) 14-7/8” (37.78cm) 23-9/32 (59.13cm) 34-1/4” to 34-1/2” (87 to 87.6 cm) 21-3/16” 3” to 3-1/4” (53.82cm) (7.62 to 8.26cm) Rough In Opening Dimensions, for 3BARM Glass Door Electrical Requirements: 115 volts, 3.3 amps running max.
  • Page 8: Dimensions For 3Barm Glass Overlay Door

    DIMENSIONS FOR 3BARM GLASS OVERLAY DOOR 36-27/32 (93.57cm) 13-29/32” (35.33cm) 23-1/4” (59.06cm) 14-7/8” 22-17/32” (37.78cm) (57.23cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 3” to 3-1/4” 21-3/16” (7.62 to 8.26cm) (53.82cm) Rough In Opening Dimensions for 3BARM Glass Overlay Door Electrical Requirements: 115 volts, 3.3 amps running max.
  • Page 9: Dimensions For 3Barm Solid Overlay Door

    DIMENSIONS FOR 3BARM SOLID OVERLAY DOOR 37-5/32” (94.39cm) 13-7/8” (35.26cm) 23-1/4” (59.06cm) 22-17/32” 14-7/8” (57.23cm) (37.78cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 21-3/16” 3” to 3-1/4” (53.82cm) (7.62 to 8.26cm) Rough In Opening Dimensions for 3BARM Solid Overlay Door Electrical Requirements: 115 volts, 3.3 amps running max.
  • Page 10: Dimensions For 6Barm Glass Door

    DIMENSIONS FOR 6BARM GLASS DOOR 47” (119.38cm) 25-21/32” (65.15cm) 26” 23-7/8” (66.04cm) (60.66cm) 24-1/16” (61.1cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 3” to 3-1/4” 22” (7.62 to 8.26cm) (55.88cm) Rough In Opening Dimensions for 6BARM Glass Door Electrical Requirements: 115 volts, 3.3 amps running max.
  • Page 11: Dimensions For 6Barm Glass Overlay Door

    DIMENSIONS FOR 6BARM GLASS OVERLAY DOOR 46-25/32 (118.82cm) 23-1/32” (58.5cm) 23-7/8” 24-1/16” (60.66cm) (61.1cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 22” 3” to 3-1/4” (55.88cm) (7.62 to 8.26cm) 23-5/16” (59.21cm) Rough In Opening Dimensions for 6BARM Glass Overlay Door Electrical Requirements: 115 volts, 3.3 amps running max.
  • Page 12: Dimensions For 6Barm Solid Overlay Door

    DIMENSIONS FOR 6BARM SOLID OVERLAY DOOR 46-27/32” (119.02cm) 23” (58.42cm) 23-7/8” 24-1/16” (60.66cm) (61.1cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 22” (55.88cm) 3” to 3-1/4” (7.62 to 8.26cm) 23-5/16” (59.21cm) Rough In Opening Dimensions for 6BARM Solid Overlay Door Electrical Requirements: 115 volts, 3.3 amps running max.
  • Page 13: Dimensions For 6Obarm Solid Door

    DIMENSIONS FOR 6OBARM SOLID DOOR 47” (119.38cm) 25-21/32” (65.15cm) 26” 23-7/8” (66.04cm) (60.66cm) 24-1/16” (61.1cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 3” to 3-1/4” 22” (7.62 to 8.26cm) (55.88cm) Rough In Opening Dimensions for 6OBARM Solid Door Electrical Requirements: 115 volts, 3.3 amps running max.
  • Page 14: Full Overlay Panel Installation Instructions

    FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS Step 4: Cut overlay panel Depending on the refrigerator model cut the overlay panel to the dimensions shown. Use Figure 5 and Table Step 1: Verify door alignment A for solid door models or use Figure 6 and Table B for The door should be parallel to the sides and top of the glass door models.
  • Page 15 FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS Material Type #8 Wood Screw Hardwood 3/32” (2.4mm) Diameter. Pilot Hole Softwood 5/64 (2.0mm) Diameter. Pilot Hole Table C NOTE NOTE 1-23/32” Typical 4 If your refrigerator has a door lock proceed to Step 7. (38.77cm) Sides If your refrigerator does not have a door lock proceed...
  • Page 16 FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS Figure 8 Step 9: Secure overlay panel to the door. With the #8 wood screws provided fasten the overlay panel to the door. (See Figure 9). Top hinge Top hinge pin Step 10: Install lock cam (Models with locks only). Attach the lock cam to the back of the lock assembly with Top door hinge the phillips head machine screw provided.
  • Page 17: 3Barm Features

    3BARM BEVERAGE AND WINE REFRIGERATOR FEATURES Insert Wine Bottles Front Bottles (Necks Facing Rear) The wine rack pull-out shelf holds four (4) bottles. See Rear Bottles (Necks Facing Front) Figure 4 for typical wine bottle orientation. The wine rack should be located at the top part of the interior cabinet. Place the remaining shelves as desired (see Figure 5).
  • Page 18: 6Barm And 6Obarm Features

    6BARM AND 6OBARM BEVERAGE AND WINE REFRIGERATOR FEATURES Insert Wine Bottles The wine rack pull-out shelf holds eight (8) bottles. See Figure 6 for typical wine bottle orientation. The wine rack can be located at the middle or bottom part of the interior cabinet.
  • Page 19: Care And Cleaning

    Use only an original equipment light bulb from your dealer or Northland-Marvel. Do NOT under any circumstance use a light bulb that exceeds 15 watts!
  • Page 20: Troubleshooting Guide

    TROUBLESHOOTING YOUR BEVERAGE AND WINE REFRIGERATOR Before You Call for Service If the unit appears to be malfunctioning, read through this manual first. If the problem persists, check the troubleshoot- ing guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service.
  • Page 21: Obtaining Service

    HOW TO OBTAIN SERVICE If Service is Required: • If the product is within the first year warranty period please call Marvel Customer Service at 800.223.3900 for directions on how to obtain warranty coverage in your area. • If the product is outside the first year warranty period, Marvel Customer Service can provide recommendations of service centers in your area.
  • Page 22: Household Product Warranty

    Not Supplied or Designated by Marvel Limited One Year Parts and Labor Warranty The above warranties also do not apply if: Marvel warrants that it will supply all necessary parts and labor to repair or replace in the end user’s home or office, •...
  • Page 23: Appendix A Additional Microsentry™ Features

    APPENDIX A, ADDITIONAL MicroSentry™ FEATURES Information Menu: Keypad Lockout Feature (Loc): This feature The following features are available on the Information is useful for prohibiting changes in the Menu. temperature set point or accidentally turning • Current Temperature the unit off. Press and hold the “SET” key to display the cur- •...
  • Page 24 Northland-Marvel P .O. Box 400 1260 E. Van Deinse St. Greenville MI 48838 800.223.3900 41011766-EN Rev G All specifications and product designs subject to change without notice. Such revisions do not entitle 11/21/09 the buyer to corresponding changes, improvements, additions, replacements or compensation for...
