StarTech.com ST8CU824 Quick Start Manual

8-Port Charging Station for USB Devices | 8x 2.4A

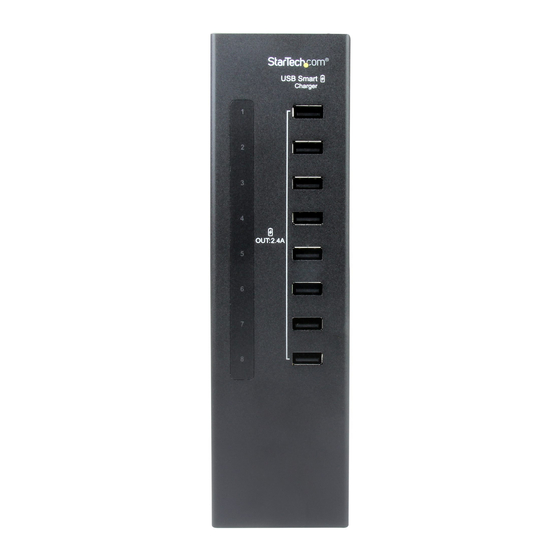

Product Diagram (ST8CU824)

1
Components
• Solid Red: Indicates that the corresponding
1
Charging LEDs (8)
USB-A Port is charging the connected Device.
2 • Used to turn the Charging Hub On or Off.
Power Button
3 DC IN 12V • Used to power the Charging Hub.
• Used to charge multiple Devices (max = 8).
• Voltage at the common collector (VCC) = 5V
4 USB-A Ports (8) • Ground (GND) = 5V
• D+ = 2.7V
• D- = 2.0V
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2 3
4
Function

Requirements

For the latest requirements, please visit
• Phillips Head Screwdriver (Optional)

Installation

Notes: The Charging Hub features a chipset that can detect the required charging
mode of a device, and switch to the proper mode for full-speed charging (e.g. If an
Apple device is connected, it will automatically charge to Apple charging mode
specifications).
When charging multiple devices, the Charging Hub may become warm to the touch,
this is normal and will not harm the connected Device(s).
Connect the Power Adapter to an AC Electrical Outlet and the other end to the DC
1.
IN 12V Port on the Charging Hub.
Press the Power Button to turn the Charging Hub On.
2.
Connect your Device(s) to the corresponding USB-A Ports on the Charging Hub.
3.

Installing the Mounting Brackets (Optional)

Note: Before installing the Mounting Bracket to the mounting surface, contact a
professional. Product mounting should be completed by a certified professional as per
the local safety and building code guidelines.
Align the Mounting Holes on the Mounting Bracket with the four Mounting Holes
1.
on the back of the Charging Hub.
Insert the Bracket Screws (x4) through the Mounting Bracket and into the
2.
Mounting Holes on the back of the Charging Hub.
Tighten the Mounting Screws using a Phillips Head Screwdriver, be careful not to
3.
over-tighten.

Installing the Rubber Feet (Optional)

Remove the Rubber Feet from the Adhesive Strip.
1.
Align each of the Rubber Feet on the back of the Charging Hub, close to each of
2.
the four corners.
Remove the adhesive backing and apply the Rubber Feet to the Charging Hub.
3.
Note: Be careful not to cover the Mounting Holes when applying the Rubber Feet.
Quick-Start Guide
www.startech.com/ST8CU824
