StarTech.com ST7C51224 Quick Start Manual

7 Port USB Dedicated Charging Station |5 x 1A | 2 x 2A

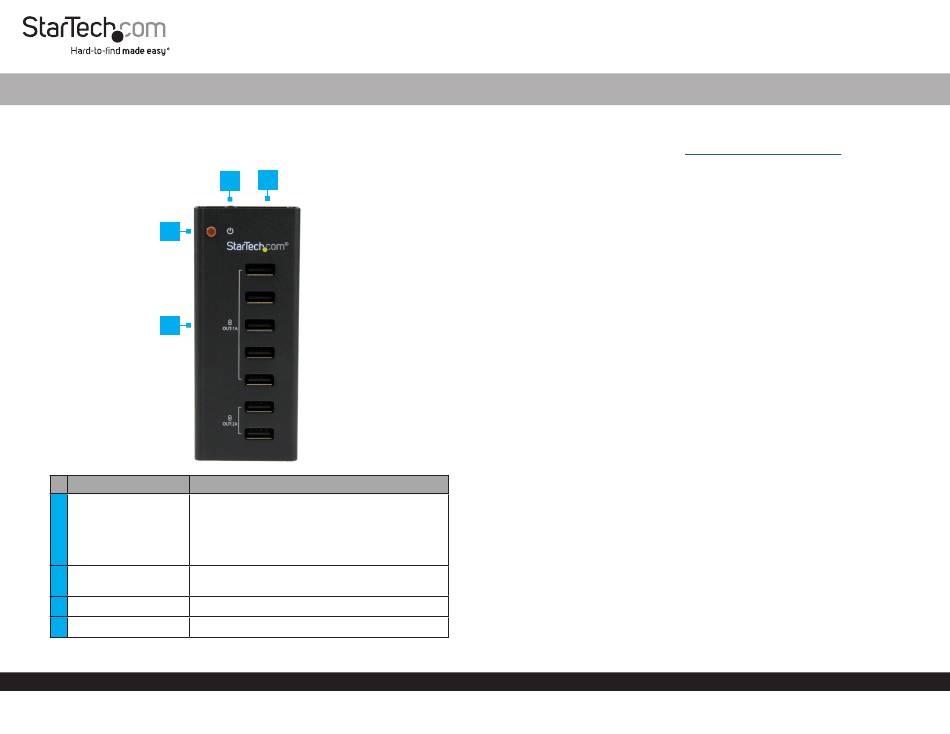

Product Diagram (ST7C51224)
2
1
Port/LED
• Used to charge multiple Devices.
1 USB-A Ports (7)
• Solid red indicates that the Charging Hub is
2
Power LED
receiving power.
3 Power Button • Used to turn the Charging Hub On or Off.
4 DC IN 12V • Used to power the Charging Hub.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
4
Function
Note: 2A Devices can be charged using a
USB-A (1A) Port, and 1A Devices can be
charged in the USB-A (2A) Port, however, the
charging time will be affected.
Requirements
For the latest requirements, please visit
Installation
Notes: The Charging Hub features a chipset that can detect the required charging
mode of a device, and switch to the proper mode for full-speed charging (e.g. If an
Apple device is connected, it will automatically charge to Apple charging mode
specifications).
When charging multiple devices, the Charging Hub may become warm to the touch,
this is normal and will not harm the connected Device(s).
Connect the Power Adapter to an AC Electrical Outlet and to the DC IN 12V Port
1.
on the Charging Hub.
Press the Power Button to turn the Charging Hub On. Wait until the Power LED is
2.
solid before connecting any devices for charging.
Connect your device(s) to the corresponding USB-A Port (1A or 2A) on the
3.
Charging Hub, according to the charging requirements of the connected Device(s):
• 1A:
Voltage at the common collector (VCC) = 5V
•
Ground (GND) = 5V
•
D+ = 2.0V
•
D- = 2.7V
•
• 2A:
Voltage at the common collector (VCC) = 5V
•
Ground (GND) = 5V
•
D+ = 2.7V
•
D- = 2.0V
•
Installing the Mounting Brackets (Optional)
Align the Mounting Holes on the Mounting Bracket with the four Mounting Holes
1.
on the back of the Charging Hub.
Insert the Bracket Screws (x4) through the Mounting Bracket and into the
2.
Mounting Holes on the back of the Charging Hub.
Tighten the Mounting Screws using a Phillips Head Screwdriver, be careful not to
3.
over-tighten.
Quick-Start Guide
www.startech.com/ST7C51224 .
