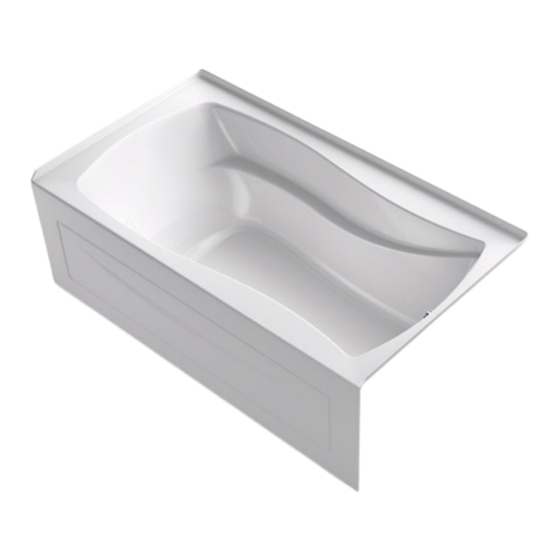

Kohler Mariposa K-1224-GRAW Manual

Features
•
Integral flange.
•
Right drain.
•
Bask heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders, and neck.
•
Integral lumbar support and armrests for comfort.
•
Integral apron with removable access panel.
•
Textured bottom surface.
•
66" (1676 mm) x 36" (914 mm) x 21-1/4" (540 mm)
Material
•
Acrylic
Hydrotherapy
•
120 BubbleMassage
•
Zones of Control feature allows you to target massage to back,
midsection, or feet.
•
Automatic purge cycles remove residual water from air channels
after use.
•
Built-in 300 W heater.
•
Electronic keypad control.
Installation
•
Alcove
Recommended Accessories
K-1446 Remote Installation Kit
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-7166-AF Bath Drain
K-24916 Wireless Music Kit
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-25-2018 02:15
™ airjets.
5.5' BubbleMassage
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
Greenguard UL 2818 - Gold
CARB P2
KOHLER One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
47 Almond
NY Dune
G9 Sandbar
Mariposa
™ Bath
K-1224-GRAW
