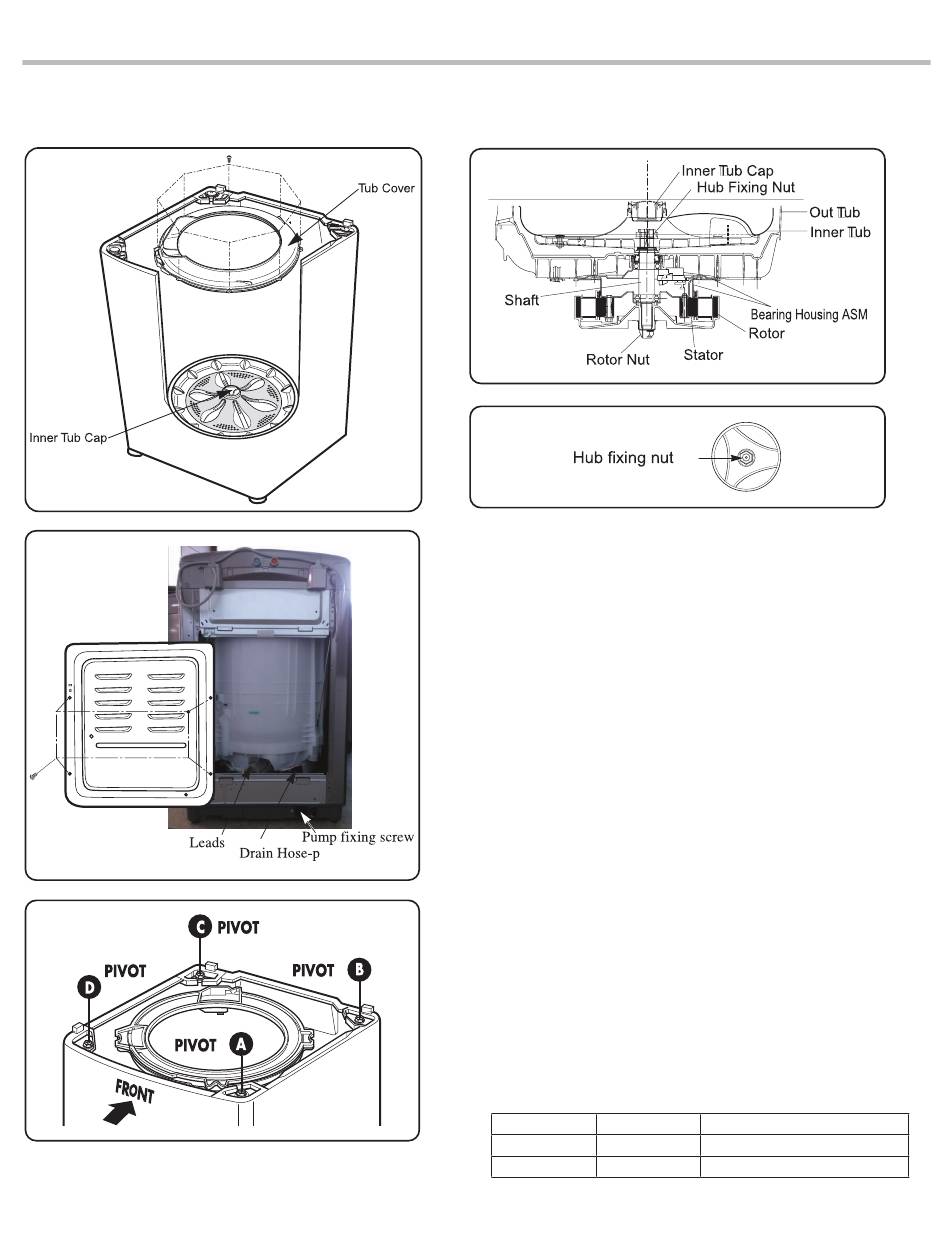

4) Disassembly of Back cover, Drain
Pump.
① Remove back cover fixing screws then
disassemble the back cover.
② Disconnect the leads and the drain hose-p from
the drain pump.
③ Remove the pump fixing screws and the
connector hose disassemble the drain pump.
5) Replacement of Damper asm
① Separate top cover from washing machine.
② As in the fig, lift snubber bar and take it out of
out case with out tub.
③ Damper assembly shall not be disassembled.
Replace damper as assembly.
④ For assembly, keep the following.
(Location & color)
Location P/No.
A102
Ⓐ,Ⓑ
A101
Ⓒ,Ⓓ
37
PIVOT(Color)
MIDDLE BLUE
WHITE
