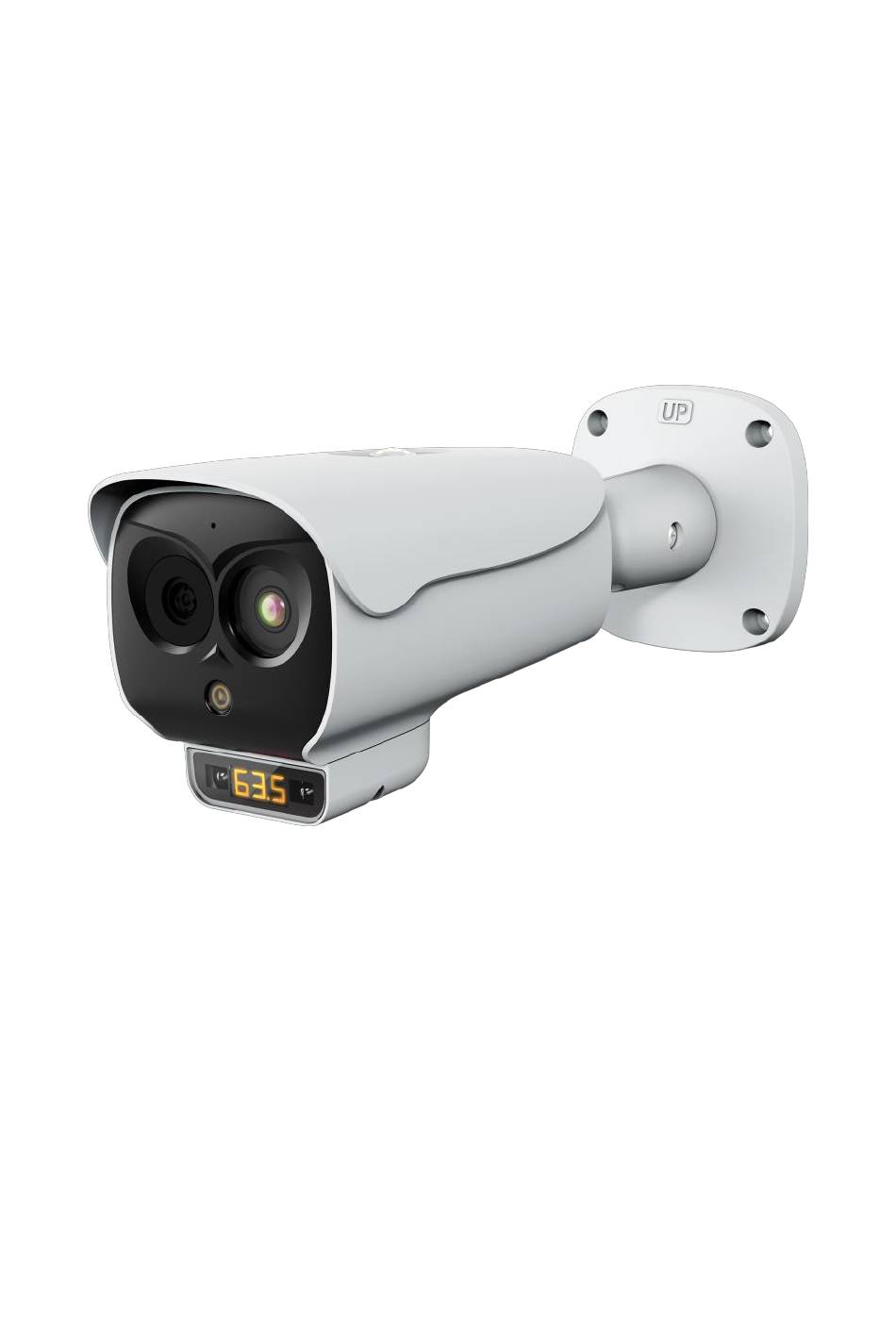

Bi-spectrum network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Bi-spectrum
Network Camera
User Manual
Issue V 1.0
Data 2022-05-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN-TPC2552DT-F and is the answer not in the manual?

Questions and answers

Related Manuals for Sunell Security SN-TPC2552DT-F

Summary of Contents for Sunell Security SN-TPC2552DT-F

  • Page 1 Bi-spectrum Network Camera User Manual Issue V 1.0 Data 2022-05-07...

  • Page 3: Precautions

    Bi-spectrum network camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye-catching place. Failure to correctly use electrical products may cause fire and severe injuries.
  • Page 4 Bi-spectrum network camera Precautions User Manual ⚫ Use accessories delivered with this device. The voltage must meet input voltage requirements for this device. ⚫ If this device is installed in places with unsteady voltage, ground the device to discharge high energy such as electrical surges in order to prevent the power supply from burning out.
  • Page 5 Bi-spectrum network camera User Manual Precautions ⚫ Keep the device away from heat sources such as radiators, electric heaters, or other heat equipment. ⚫ Keep the device away from moist, dusty, extremely hot or cold places, or places with strong electric radiation.

  • Page 6: Table Of Contents

    Bi-spectrum network camera Contents User Manual Contents Precautions ........................I Contents ........................IV 1 Product Overview ....................7 1.1 About Product ......................... 7 1.2 Features .......................... 7 1.3 Device Dimension ......................8 1.4 Installation ........................8 1.5 Cable Connection ......................10 2 Quick Configuration .....................
  • Page 7 Bi-spectrum network camera User Manual Contents 4.3 Image Adjust ........................ 47 4.4 Scene ..........................49 4.5 Exposure ........................50 4.6 WB ..........................52 4.7 DayNight ........................54 4.8 Noise Reduction ......................56 4.9 Enhance Image ......................58 5 Thermal Sensor Configuration................60 5.1 Accessing the Sensor Interface ..................
  • Page 8 Bi-spectrum network camera Contents User Manual 9.2.3 Snapshot ......................98 9.3 Device .......................... 99 9.4 External Device ......................99 9.5 Privacy Masking ......................101 9.6 Network Service ......................101 9.7 Privacy Manager ......................101 9.8 Protocol ........................102 9.9 Device Log ......................... 103 9.10 Maintenance ......................

  • Page 9: Product Overview

    Bi-spectrum network camera User Manual Product Overview Product Overview 1.1 About Product ⚫ The Bi-spectrum network camera is integrated with the thermal imaging and temperature measuring, visible fusion, core image intelligent analysis, etc. ⚫ Unique double registration mechanism, visible light and thermal imaging is reflecting the same scene.

  • Page 10: Device Dimension

    Bi-spectrum network camera Product Overview User Manual ⚫ Outputting three code streams in real time, and satisfying local storage and network transmission of the video. ⚫ 1-channel audio input and 1-channel audio output, supporting bidirectional voice talkback. ⚫ Providing software and hardware watchdogs and automatic fault recovery. ⚫...
  • Page 11 Bi-spectrum network camera User Manual Product Overview marks on the sticker. Drive the swell plastic buttons into holes. Step 2 Loosen screw 1 to free the body to easy to install the fixed screws of camera. This step before mount is highly suggested to make it convenient to use electric screwdriver, as shown in Figure 1-2.

  • Page 12: Cable Connection

    Bi-spectrum network camera Product Overview User Manual the screw 1 and screw 2. Figure 1-4 Adjust image 1.5 Cable Connection Figure 1-5 the multi-connector combination cable of the thermal imaging integrated network camera. For details about the multi-connector combination cable, please refer to Table 1-1.
  • Page 13 Bi-spectrum network camera User Manual Product Overview Figure 1-5 Multi-connector combination cable Table 1-1 Multi-connector combination cable Core of Cable Functions Video Connect the BNC connector. DC12V (2A) Power interface, connects to the 12 V DC power supply. Audio Input Inputs the audio signal and receives the analog audio signals from the sound pick-up device.
  • Page 14 Bi-spectrum network camera Product Overview User Manual Grey：alarm IN COM 2 Purple: alarm IN 2 ALARM1 Alarm in/ alarm out 1 Brown：alarm OUT COM 1 Blue：alarm OUT 1 White：alarm IN COM 1 Green: alarm IN 1 RS485 RS485 interface connects to the external pan & tilt. Issue V 1.1（2022-05-07）...

  • Page 15: Quick Configuration

    Bi-spectrum network camera User Manual Quick Configuration Quick Configuration 2.1 Login and Logout You must use Internet Explorer 8 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of camera (default value is 192.168.0.121) in the address box, and press Enter.

  • Page 16: Homepage Layout

    Bi-spectrum network camera Quick Configuration User Manual ----End logout To logout of system, click in the upper right corner of the homepage, the login page is displayed after you log out the system. 2.2 Homepage Layout On the homepage, user can view real-time video, playback and configuration. User can set parameter, Video parameter, Video control, PTZ control, PTZ Configure and logout of the system.
  • Page 17 Bi-spectrum network camera User Manual Quick Configuration Element Description Channel Channel 1: visible light. Channel 2: thermal image. Stream Four streams. You can set details at configuration base stream interface. Stream 4 is SVC stream. : Play/pause. : Switch the mode. : Audio.

  • Page 18: Changing The Password

    Bi-spectrum network camera Quick Configuration User Manual 2.3 Changing the Password Description User can click to change the password for logging into the system. Procedure Step 1 Click in the upper right corner of the main page. The Change Password dialog box is displayed, as shown in Figure 2-3. Figure 2-3 Change password dialog box ⚫...

  • Page 19: Browse Video

    Bi-spectrum network camera User Manual Quick Configuration 2.4 Browse Video User can browse the real-time video in the web management system. Preparation To ensure the real-time video can be played properly, you must perform the following operations when you log in to the web for the first time: Step 1 Open the Internet Explorer.

  • Page 20: Install Plugins

    Bi-spectrum network camera Quick Configuration User Manual Figure 2-5 Configuring ActiveX control and plug-ins Step 3 Download and install the player control as prompted. ⚫ The login page is displayed when the control is loaded. ⚫ If you can view the live video immediately, you can ignore the steps of adding trust site. 2.4.1 Install Plugins You will be prompted with a message “click here to use short delay Plugin for Live Video”...

  • Page 21: Personnel Count

    Bi-spectrum network camera User Manual Quick Configuration Procedure Step 1 Click the message, download and install the plugin follow the prompts. Step 2 Reopen the browser after installation. Step 3 On live video page, you can operate these buttons as shown in live video. ⚫...

  • Page 22: Setting Local Network Parameters

    Bi-spectrum network camera Quick Configuration User Manual User can download the result to local folder. ----End 2.6 Setting Local Network Parameters Description Local network parameters include: ⚫ IP protocol ⚫ IP address ⚫ Subnet mask ⚫ Default gateway ⚫ Dynamic Host Configuration Protocol (DHCP) ⚫...
  • Page 23 Bi-spectrum network camera User Manual Quick Configuration Figure 2-8 Local Network Step 2 Set the parameters according to Table 2-2. Table 2-2 Local network parameters Parameter Description Setting IP Protocol IPv4 is the IP protocol that uses [Setting method] an address length of 32 bits. Select a value from the drop-down list box.
  • Page 24 Bi-spectrum network camera Quick Configuration User Manual Parameter Description Setting DHCP IP IP address that the DHCP server assigned to the device. IP Address Device IP address that can be [Setting method] set as required. Enter a value manually. [Default value] 192.168.0.121 Subnet Mask Subnet mask of the network...
  • Page 25 Bi-spectrum network camera User Manual Quick Configuration ⚫ If you set only the Subnet Mask, Default Gateway, Preferred DNS Server, and Alternate DNS Server parameters, you do not need to login to the system again. ⚫ You can click Reset to restore the previous parameters if required. ----End Issue V 1.1（2022-05-07）...

  • Page 26: Temperature Measurement

    Bi-spectrum network camera Temperature Measurement User Manual Temperature Measurement 3.1 Temperature Parameters Temperature parameters include temperature unit, ambient type, ambient temperature, cavity temperature, correctional coefficient, area temperature display mode, area temperature type, measure mode, and area alarm interval. Operation Procedure Step 1 Choose Configuration >Thermal >Temperature Parameters.
  • Page 27 Bi-spectrum network camera User Manual Temperature Measurement Figure 3-1 Temperature Parameters interface Step 2 Set the parameters according to Table 3-1. Table 3-1 Temperature parameters Parameter Description Setting Temperature Unit Celsius and Fahrenheit [Setting method] temperature units are available. Select a value from the drop-down list box.
  • Page 28 Bi-spectrum network camera Temperature Measurement User Manual Parameter Description Setting Length Units The unit of distance [Setting method] Select a value from the drop-down list box. [Default value] Meters Cavity The cavity temperature of Temperature camera. Correction Correction coefficient is refer to [Setting method] Coefficient the deviation of measured...
  • Page 29 Bi-spectrum network camera User Manual Temperature Measurement Parameter Description Setting Custom Colors Enable to custom the color, [Setting method] there are nine colors chosen. Enable or disable [Default value] Disable Area Temperature There are three types of area [Setting method] Type temperature.
  • Page 30 Bi-spectrum network camera Temperature Measurement User Manual Parameter Description Setting Temper Prevent over heat’ mode is auto, [Setting method] Duration(5-60 S) the control cover will block for Enter a value manually duration time automatically if ranges from 5 to 60. over heat.
  • Page 31 Bi-spectrum network camera User Manual Temperature Measurement Parameter Description Setting Section Prominent Enable that, the image will [Setting method] show the setting color if the Enter a value manually. temperature is between Choose one color to minimum and maximum show. temperature.

  • Page 32: Ambient Temperature

    Bi-spectrum network camera Temperature Measurement User Manual 3.2 Ambient Temperature Figure 3-3 Ambient temperature Table 3-3 parameter of ambient temperature Parameter Description Setting Ambient Environment temperature of [Setting method] Temperature camera. Enter the temperature of ambient. [Default value] Adaptation Set the ambient temperature, click “Apply”, click “Refresh”...
  • Page 33 Bi-spectrum network camera User Manual Temperature Measurement Figure 3-4 Temperature area and alarm configuration Step 2 Set the parameters according to Table 3-4. Table 3-4 Temperature area and alarm configuration Parameter Description Setting Channel Channel 1 is visible light [Setting method] channel.
  • Page 34 Bi-spectrum network camera Temperature Measurement User Manual Parameter Description Setting Name Area name of temperature area. [Setting method] Enter a value manually. Type Type of temperature area. [Setting method] ID 0 is default rectangle area, Select a value from the which is full screen.
  • Page 35 Bi-spectrum network camera User Manual Temperature Measurement Parameter Description Setting Emission Rate The emission rate is the [Setting method] capability of an object to emit Enter a value manually. or absorb energy. [Default value] The emission rate should be set 0.95 only when the target is special material.
  • Page 36 Bi-spectrum network camera Temperature Measurement User Manual Figure 3-5 Temperature Area Setting Interface Click Apply, the message “Apply success” is displayed, the temperature area is set successfully. NOTE ID 0 is the full screen; the area cannot be changed. : the lowest temperature of the full screen. :the highest temperature of the full screen.

  • Page 37: Shield Area

    Bi-spectrum network camera User Manual Temperature Measurement Click Apply, the message “Apply success” is displayed, the temperature area is deleted successfully. Step 4 Click Apply. The message "Apply success" is displayed, the system saves the settings. ----End 3.4 Shield Area Shield area is meaning that the camera will do not detect the temperature of that area.

  • Page 38: Schedule Linkage

    Bi-spectrum network camera Temperature Measurement User Manual ----End 3.5 Schedule Linkage Operation Procedure Step 1 Choose Configuration >Thermal > Schedule Linkage. The Schedule Linkage page is displayed, as shown in Figure 3-7. Tick the output channel if user connects the external alarm device. It can also enable alarm record, SMTP, FTP upload, audio alarm and flashlight alarm.
  • Page 39 Bi-spectrum network camera User Manual Temperature Measurement Figure 3-8 Sound alarm output User can set the audio file manually. Click to upload the audio file(the type should be WAV), as shown in Figure 3-9. Figure 3-9 Upload audio file Step 3 Set schedule linkage.

  • Page 40: Thermal Mapping

    Bi-spectrum network camera Temperature Measurement User Manual Method 2：Hold down the left mouse button, drag and release mouse to select the alarm time within 0:00-24:00 from Monday to Sunday. When you select time by dragging the cursor, the cursor cannot be moved out of the time area. Otherwise, no time can be selected.
  • Page 41 Bi-spectrum network camera User Manual Temperature Measurement Figure 3-10 Thermal mapping interface Step 2 Settings please refer to Table 3-5. Table 3-5 Parameter of thermal mapping Parameter Description Setting Zoom in /zoom out. [Setting method] Click the button Near focus / far focus. [Setting method] Click the button Lock focus position...

  • Page 42: Bad Point Check

    Bi-spectrum network camera Temperature Measurement User Manual Parameter Description Setting Fine turning Click the icon to adjust the position [Setting method] trifle. Click You need map three points at two Mapping point [Setting method] channels. Points are correspond of each. Select from drop list .
  • Page 43 Bi-spectrum network camera User Manual Temperature Measurement Figure 3-11 Bad Point Check Step 2 Click the white point at image, click Reset to recover the bad point, as shown in Figure 3-12. Issue V 1.1（2022-05-07）...

  • Page 44: Led Control Param

    Bi-spectrum network camera Temperature Measurement User Manual Figure 3-12 Recover bad point Step 3 Click Apply. The message "Apply success" is displayed, the system saves the settings. ----End 3.8 LED Control Param Set the display mode and brightness of LED, as shown in Figure 3-13. Issue V 1.1（2022-05-07）...

  • Page 45: Digital Tube

    Bi-spectrum network camera User Manual Temperature Measurement Figure 3-13 LED control param Table 3-6 LED control param Parameter Description Setting Display Mode There are four modes can be chosen. [Setting method] Open: the LED is always lighting. Select from drop-down list.
  • Page 46 Bi-spectrum network camera Temperature Measurement User Manual Figure 3-14 Digital tube Table 3-7 Digital tube Parameter Description Setting Enable Enable it, the digital tube will show [Default value] the temperature of detecting. Enable Relate Area ID It is relativity to the Area ID of [Setting method] Parameter Configure, choose one Select from drop-down...

  • Page 47: Visible Sensor Configuration

    Bi-spectrum network camera User Manual Visible Sensor Configuration Visible Sensor Configuration 4.1 Accessing the Sensor Interface Procedure Step 1 On the web, move the cursor to the real-time video page and right-click on the page. A shortcut menu is displayed, as shown in Figure 4-1 Figure 4-1 Sensor setting interface Or at “Configuration >...

  • Page 48: Mode

    Bi-spectrum network camera Visible Sensor Configuration User Manual Figure 4-2 Sensor setting Step 2 Choose Sensor Configure and the Sensor Setting dialog box appears. ⚫ All sensor configure can be modified at debug mode. Click in the lower left corner of Sensor Setting, and choose Debug Mode. ----End 4.2 Mode Step 3 Click...

  • Page 49: Image Adjust

    Bi-spectrum network camera User Manual Visible Sensor Configuration Figure 4-3 Mode Step 4 Choose the switch mode from the drop-down list. Step 5 Time mode: Set the Start Time, set the End Time. Step 6 Click Save, the message "Save succeed" is displayed, the system saves the settings. ----End 4.3 Image Adjust Figure 4-4 shows the Image Adjust tab page.
  • Page 50 Bi-spectrum network camera Visible Sensor Configuration User Manual Figure 4-4 Image Table 4-1 describes the parameters on the Image Adjust tab page. Table 4-1 Parameters of Image Parameter Description Configuration Method Brightness It indicates the total brightness of an image. As [Setting method] the value increases, the image becomes Drag the slider.

  • Page 51: Scene

    Bi-spectrum network camera User Manual Visible Sensor Configuration Saturation It indicates the color saturation of an image. As [Setting method] the value increases, the image becomes more Drag the slider. colorful. [Default value] Contrast It indicates the measurement of different [Setting method] brightness levels between the brightest white Drag the slider.

  • Page 52: Exposure

    Bi-spectrum network camera Visible Sensor Configuration User Manual Table 4-2 Parameters of scene Parameter Description Configuration Method Scene Indoor or outdoor. [Setting method] Select a value from the drop-down list. [Default value] Indoor Mirror It is used to select the pixel location of [Setting method] an image.
  • Page 53 Bi-spectrum network camera User Manual Visible Sensor Configuration Figure 4-6 Exposure Table 4-3 describes the parameters on the Exposure setting tab page. Table 4-3 Parameters of exposure setting Parameter Description Configuration Method Exposure Mode The exposure modes include: [Setting method] Select a value from ⚫...
  • Page 54 Bi-spectrum network camera Visible Sensor Configuration User Manual Meter area Choose the area to meter, there are whole, [Setting method] center spot, and center area. Select a value from the drop-down list. [Default value] Whole Max Shutter It is valid in mode.
  • Page 55 Bi-spectrum network camera User Manual Visible Sensor Configuration Figure 4-7 WB Table 4-4 describes the parameters on the WB tab page. Issue V 1.1（2022-05-07）...

  • Page 56: Daynight

    Bi-spectrum network camera Visible Sensor Configuration User Manual Table 4-4 Parameters of WB Parameter Description Configuration Method Mode It is used to display the real color of a [Setting method] monitoring scenario when the color temperature Select a value changes. from the drop- down list.
  • Page 57 Bi-spectrum network camera User Manual Visible Sensor Configuration Table 4-5 describes the parameters on the Special Function tab page. Table 4-5 Parameters of day night Parameter Description Configuration Method DayNight It can be set to Auto, Day Mode, Night Mode [Setting method] Mode and Timing.

  • Page 58: Noise Reduction

    Bi-spectrum network camera Visible Sensor Configuration User Manual Trans (D to Day transit to night. [Setting method] Drag the slider. [Default value] Trans (N to Night transit to day. [Setting method] Drag the slider. [Default value] Delay [Setting method] Drag the slider. [Default value] ----End 4.8 Noise Reduction...
  • Page 59 Bi-spectrum network camera User Manual Visible Sensor Configuration Figure 4-9 Noise Reduction Table 4-6 describes the parameters on the Special Function tab page. Table 4-6 Parameters of noise reduction Parameter Description Configuration Method 2D NR Auto /manual, default value is auto. [Setting method] By comparing and screening the images of the Drag the slider...

  • Page 60: Enhance Image

    Bi-spectrum network camera Visible Sensor Configuration User Manual ----End 4.9 Enhance Image Figure 4-10 shows the enhance image Setting tab page. Figure 4-10 Enhance image Table 4-7 describes the parameters on the enhance image setting tab page. Table 4-7 Parameters of enhance image Parameter Description Configuration...
  • Page 61 Bi-spectrum network camera User Manual Visible Sensor Configuration It indicates reverse bright points in the picture [Setting method] to black. As an effective approach to Drag the slider. recognize vehicle plate number at night, HLC [Default value] function can detect any spotlight diffused by object-vehicle and compensate it for obtaining clearer image.

  • Page 62: Thermal Sensor Configuration

    Bi-spectrum network camera Thermal Sensor Configuration User Manual Thermal Sensor Configuration 5.1 Accessing the Sensor Interface Operation Procedure Step 7 On the Internet Explorer interface or the client software interface, choose channel 2 select and right-click the surveillance image to the set, as shown in Figure 5-1. Figure 5-1 Sensor configuration Or at “Configuration >...

  • Page 63: Mode

    Bi-spectrum network camera User Manual Thermal Sensor Configuration Figure 5-2 Thermal channel sensor setting Step 8 Choose Sensor. The Sensor Configuration dialog box is displayed, as shown in Figure 5-3. ----End 5.2 Mode Figure 5-3 shows the Mode interface. Issue V 1.1（2022-05-07）...

  • Page 64: Images

    Bi-spectrum network camera Thermal Sensor Configuration User Manual Figure 5-3 Mode interface Operation Procedure Step 1 Click in the lower left corner of Sensor Setting, and choose Debug Mode. Step 2 Choose switch mode from the drop-down list. Step 3 Time mode: Set the Start Time, set the End Time. Step 4 Click Save, the message "...
  • Page 65 Bi-spectrum network camera User Manual Thermal Sensor Configuration Figure 5-4 Image setting interface Step 1 Click in the lower left corner of Sensor Setting, and choose Debug Mode. Step 2 Drag the slider to adjust parameter of image. Step 3 Click Save, the message "Save succeed" is displayed, the system saves the settings. NOTE ⚫...

  • Page 66: Scene

    Bi-spectrum network camera Thermal Sensor Configuration User Manual 5.4 Scene Figure 5-5 shows the Scene setting interface. Figure 5-5 Scene setting interface Step 1 Click in the lower left corner of Sensor Setting, and choose scene Step 2 Choose mirror mode from drop-list. Step 3 Click Save, the message "Save succeed"...

  • Page 67: Set Pseudocolor

    Bi-spectrum network camera User Manual Thermal Sensor Configuration 5.5 Set Pseudocolor Figure 5-6 shows the Set pseudocolor setting interface. Figure 5-6 Set pseudocolor setting interface Step 1 Click in the lower left corner of Sensor Setting, and choose set pseudo color Step 2 Choose polarity/LUT mode from drop-list.

  • Page 68: Ffc Control

    Bi-spectrum network camera Thermal Sensor Configuration User Manual ⚫ The temperatures of the temperature fields detected by the thermal imaging camera are separately mapped to values ranging from 0 to 255 by the algorithm. In the black/white display mode, this range is converted to the gray scale tones. For example, 0 indicates completely black, and 255 indicates completely white.
  • Page 69 Bi-spectrum network camera User Manual Thermal Sensor Configuration Figure 5-7 FFC control interface Table 5-1 lists the parameters on the FFC control interface. Table 5-1 Parameters on the FFC control interface Parameter Description Setting The internal of the thermal imaging camera may comprise the mechanical action correction mechanism that can periodically improve the image quality.
  • Page 70 Bi-spectrum network camera Thermal Sensor Configuration User Manual Parameter Description Setting operations can prevent the grainy and image degradation problems. The FFC is especially important when the temperature of the camera changes. For example, after the camera is powered on or the ambient temperature is changed, you should immediately perform the FFC.

  • Page 71: Noise Reduction

    Bi-spectrum network camera User Manual Thermal Sensor Configuration Parameter Description Setting adjust Background Click the icon and camera perform the action. Manually adjust ----End 5.7 Noise Reduction Figure 5-8 shows the Noise reduction interface. Figure 5-8 Noise reduction interface Table 5-2 lists the Noise reduction parameters. Table 5-2 Parameters on the Noise reduction interface Parameter Description...
  • Page 72 Bi-spectrum network camera Thermal Sensor Configuration User Manual Parameter Description Setting noise. Select from the drop-down list box. [Default value] Close [How to set] Select from the drop-down list box. Decrease the image 3DNR noise. [Default value] Close ----End Issue V 1.1（2022-05-07）...

  • Page 73: Intelligent Analysis

    Bi-spectrum network camera User Manual Intelligent Analysis Intelligent Analysis There are many kinds of intelligent analysis, such as perimeter, single virtual fence, double virtual fences, multi loiter, converse, personnel count, enter area, leave area. The parameters of these analysis alarm are roughly similar, so we will describe one in detail as a reference.
  • Page 74 Bi-spectrum network camera Intelligent Analysis User Manual Figure 6-1 Perimeter Setting Interface Step 2 Set all parameters for perimeter. Table 6-1 describes the specific parameters. Table 6-1 Perimeter Parameter Description Parameter Description Setting Channel Channel 1: visible light. Choose one channel to set. Channel 2: thermal.
  • Page 75 Bi-spectrum network camera User Manual Intelligent Analysis Parameter Description Setting Limit Target Effective alarms are set based on target [How to set] Type type, with options of Person or Car, Click to enable Limit Target person, car. When the device is used Type.
  • Page 76 Bi-spectrum network camera Intelligent Analysis User Manual point. This is how a line is generated. In this way, continue to draw lines to form any shape, and right-click to finish line drawing. ⚫ A drawn line cannot cross another one, or the line drawing fails. ⚫...

  • Page 77: Single Virtual Fence

    Bi-spectrum network camera User Manual Intelligent Analysis 6.2 Single Virtual Fence Description A single virtual fence is a line that is set at a concerned position within the monitored field of view and specifies the forbidden travel direction; An alarm is generated when the targets of specified types (such as person or car) cross this line.
  • Page 78 Bi-spectrum network camera Intelligent Analysis User Manual Table 6-2 Parameters of single Virtual Fence Parameter Description Setting Channel Channel 1: visible. [How to set] Channel 2: thermal. Choose one channel to set. Enable the button to enable the Enable [How to set] alarm.

  • Page 79: Double Virtual Fences

    Bi-spectrum network camera User Manual Intelligent Analysis Step 3 Set a deployment area: Draw a line: move the cursor to the drawing interface, hold down the left mouse button, and move the cursor to draw a line. When you release the left mouse button, a single virtual fence is generated.
  • Page 80 Bi-spectrum network camera Intelligent Analysis User Manual Figure 6-4 Double Virtual Fences Setting Interface Step 2 Set all parameters for the double virtual fences. The details please refer to Table 6-2 Step 3 Set a deployment area. Draw a line: move the cursor to the drawing interface, hold down the left mouse button, and move the cursor to draw two lines.

  • Page 81: Personnel Count

    Bi-spectrum network camera User Manual Intelligent Analysis ⚫ The two virtual fences are in sequential order. An alarm is generated only when a target crosses virtual fence 1 and then virtual fence 2 within the set maximum passing time. ⚫ The double virtual fences are not within any deployment area, therefore, when an alarm is generated, the trace always exists.
  • Page 82 Bi-spectrum network camera Intelligent Analysis User Manual Figure 6-5 Personnel count Step 2 Set all parameters for illegal parking. Table 6-3 describes the specific parameters. Issue V 1.1（2022-05-07）...
  • Page 83 Bi-spectrum network camera User Manual Intelligent Analysis Table 6-3 Description of Parameters for Personnel Count Parameter Description Setting Channel Channel 1: visible. [How to set] Channel 2: thermal. Choose one channel to set. Enable Enable the button to enable the alarm. [How to set] Click Enable to enable.
  • Page 84 Bi-spectrum network camera Intelligent Analysis User Manual Parameter Description Setting Output Channel If you check to set the Output Channel [How to set] and the device is connected to an external Click to select an ID. alarm indicator, the alarm indicator signals when an alarm is triggered.

  • Page 85: Enter Area

    Bi-spectrum network camera User Manual Intelligent Analysis 6.5 Enter Area Description The enter area refers to that an alarm is generated when a target enter the deployment area at the valid time. Procedure Step 1 Select Configuration > Intelligent Analysis > Enter Area to access the Enter Area setting interface, as shown in Figure 6-6.
  • Page 86 Bi-spectrum network camera Intelligent Analysis User Manual ⚫ A drawn line cannot cross another one, or the line drawing fails. ⚫ The quantity of deployment areas is not limited yet and will be described in future when a limit is applied. Step 4 Set deployment time .

  • Page 87: Ai Multi-Object

    Bi-spectrum network camera User Manual AI Multi-object AI Multi-object At “ Configuration > AI Multiobject ” interface, user can enable full-body Step 1 detection, vehicle detection to detect the person and vehicle, as shown in Figure 7-1. Figure 7-1 AI Multiobject Step 2 Set the parameters of AI multiobject following as the Table 7-1 .
  • Page 88 Bi-spectrum network camera AI Multi-object User Manual is blue. Vehicle The camera will snap the licence when the vehicle detection appear in live video. The detection frame is Enable yellow. The range of snap image, there are three type, Confidence such as high, mid and low.

  • Page 89: Alarm Setting

    Bi-spectrum network camera User Manual Alarm Setting Alarm Setting 8.1 Alarm Output Procedure Step 1 Select Configuration > Alarm > Alarm Output to access the Alarm Output setting interface, as shown in Figure 8-1. Figure 8-1 Alarm output interface Step 2 Set alarm output of channel, name, enable valid signal and alarm time choose alarm output mode.

  • Page 90: Disk Alarm

    Bi-spectrum network camera Alarm Setting User Manual 8.2 Disk Alarm Procedure Step 1 Select Configuration > Alarm > Disk Alarm to access the disk alarm setting interface, as shown in Figure 8-2. Figure 8-2 Disk alarm interface Step 2 Enable the disk full alarm, when the disk is full it will alarm. Step 3 Set alarm interval and tick output channel.

  • Page 91: I/O Alarm Linkage

    Bi-spectrum network camera User Manual Alarm Setting Figure 8-3 Network alarm interface Step 2 Choose network card ID and enable exceptional alarm to set alarm interval. Tick output channel. Step 3 Click Apply to save the settings, click refresh will return last settings. ---End 8.4 I/O Alarm Linkage Procedure...

  • Page 92: Motion Alarm

    Bi-spectrum network camera Alarm Setting User Manual Figure 8-4 I/O alarm linkage interface Step 2 Choose alarm input and trigger mode, set name, enable other linkages such as alarm input, PTZ linkage, Alarm Record SMTP and FTP upload. Step 3 Set alarm schedule, choose the duration of linkage.

  • Page 93: Push Message

    Bi-spectrum network camera User Manual Alarm Setting Figure 8-5 Motion alarm interface Step 2 Choose channel and enable the motion alarm, set alarm interval and sensitivity, enable other linkages such as SMTP, FTP upload and motion detect stream. Step 3 Set motion alarm schedule, Step 4 Click Apply to save the settings, click Refresh will return last settings.

  • Page 94: Sound Alarm Output

    Bi-spectrum network camera Alarm Setting User Manual Figure 8-6 Push message interface Step 2 Enable the push message, you will receive the message when the alarm happened. Step 3 Click Apply to save the settings, click Refresh will return last settings. ---End 8.7 Sound Alarm Output Procedure...
  • Page 95 Bi-spectrum network camera User Manual Alarm Setting Figure 8-7 Sound alarm output interface Step 2 Click to upload the audio file, browse the file, and the formate should be wav. There are 12 default files, you can listen and test the files. Step 3 Set alarm schedule, choose the duration of linkage.

  • Page 96: Audio Abnormal Output

    Bi-spectrum network camera Alarm Setting User Manual Figure 8-8 Upload audio file Step 4 Click Apply to save the settings, click Refresh will return last settings. ---End 8.8 Audio Abnormal Output Procedure Step 1 Select Configuration > alarm >Audio Abnormal Output to access the Sound Alarm Output setting interface, as shown in Figure 8-7.
  • Page 97 Bi-spectrum network camera User Manual Alarm Setting Figure 8-9 Audio abnormal output interface Step 2 Enable the audio abnormal detection, enable sudden rise, sudden drop, when happen the condition of enable, it will alarm. Step 3 Tick the output channel, enable alarm record, SMTP, FTP upload. Step 4 Set alarm schedule, choose the duration of linkage.

  • Page 98: Other Web Configurations

    Bi-spectrum network camera Other Web Configurations User Manual Other Web Configurations 9.1 Device Information You can view the information about device, as shown in Figure 9-1. Figure 9-1 Device information interface Issue V 1.1（2022-05-07）...

  • Page 99: Stream

    Bi-spectrum network camera User Manual Other Web Configurations 9.2 Stream 9.2.1 Base Stream Step 1 Choose Configuration >Stream >Base Stream, as shown in Figure 9-2. Figure 9-2 Base stream interface Step 2 Choose channel, stream ID, video encode type, video encode level, audio encode type, resolution, frame rate, frame interval, bit rate type and bit rate from all drop list.

  • Page 100: Snapshot

    Bi-spectrum network camera Other Web Configurations User Manual Figure 9-3 ROI interface Step 2 Click Apply. The message "Apply success" is displayed, the system saves the settings. ---End 9.2.3 Snapshot Step 1 Choose Configuration >Stream >Snapshot, as shown in Figure 9-4. Issue V 1.1（2022-05-07）...

  • Page 101: Device

    Bi-spectrum network camera User Manual Other Web Configurations Figure 9-4 Snapshot interface Step 2 Choose snapshot resolution and snapshot quality from drop list. Step 3 Click Apply. The message "Apply success" is displayed, the system saves the settings. ---End 9.3 Device You can set local network, device port, data and time, camera, OSD, microphone, CVBS, system, voice denoise and software licenses, as shown in Figure 9-5.
  • Page 102 Bi-spectrum network camera Other Web Configurations User Manual Figure 9-6 External device interface Issue V 1.1（2022-05-07）...

  • Page 103: Privacy Masking

    Bi-spectrum network camera User Manual Other Web Configurations 9.5 Privacy Masking Choose Configuration > Privacy masking. You can set privacy masking if some area needs keep secret, drag mouse to select the area to cover, double click will delete the setting, as shown in Figure 9-7.

  • Page 104: Protocol

    Bi-spectrum network camera Other Web Configurations User Manual Figure 9-8 Privacy manager interface 9.8 Protocol Choose Configuration > Protocol. You can set protocol information, security, CMS configuration and multicast parameter. Issue V 1.1（2022-05-07）...

  • Page 105: Device Log

    Bi-spectrum network camera User Manual Other Web Configurations Figure 9-9 Protocol interface 9.9 Device Log Choose configuration > device log. You can view operation log and alarm log, or collect all log information, as shown in Figure 9-10. Figure 9-10 Device log interface 9.10 Maintenance Choose configuration >...

  • Page 106: Local Config

    Bi-spectrum network camera Other Web Configurations User Manual Figure 9-11 Maintenance interface 9.11 Local Config Choose configuration > local config. You can choose the snapshot picture format, change the save path of snapshot and local record, as shown in Figure 9-12. Issue V 1.1（2022-05-07）...

  • Page 107: Qos

    Bi-spectrum network camera User Manual Other Web Configurations Figure 9-12 Local config interface 9.12 QOS Description If the device is connected to a router or switch with a QOS function, and the priority rule of the corresponding mark is configured on the network device, the network device will preferentially pass the data packet of the corresponding mark.
  • Page 108 Bi-spectrum network camera Other Web Configurations User Manual Figure 9-13 QOS page Step 2 Input the value range from 0 to 63( audio/video dscp, alarm dscp and command dscp). Step 3 Click Apply. The message "Apply success!" is displayed, and the system saves the settings. ----End Issue V 1.1（2022-05-07）...

  • Page 109: A Troubleshooting

    Bi-spectrum network camera User Manual A Troubleshooting Troubleshooting Common Trouble Possible Cause Solution Unable to access Network is not Connect the network cable of the camera to the the web connected. PC to check whether the network cable is in good contact.
  • Page 110 Bi-spectrum network camera A Troubleshooting User Manual Common Trouble Possible Cause Solution The upgrade package Perform the correct upgrade package again. is incorrect. 1. Make sure ‘thermal mapping’ and ‘thermal calibration is configured The temperature correctly’ by checking highest temperature object at two channels. is too high.
