Sunell Security SN-IPR5150BSBN Quick Setup Manual

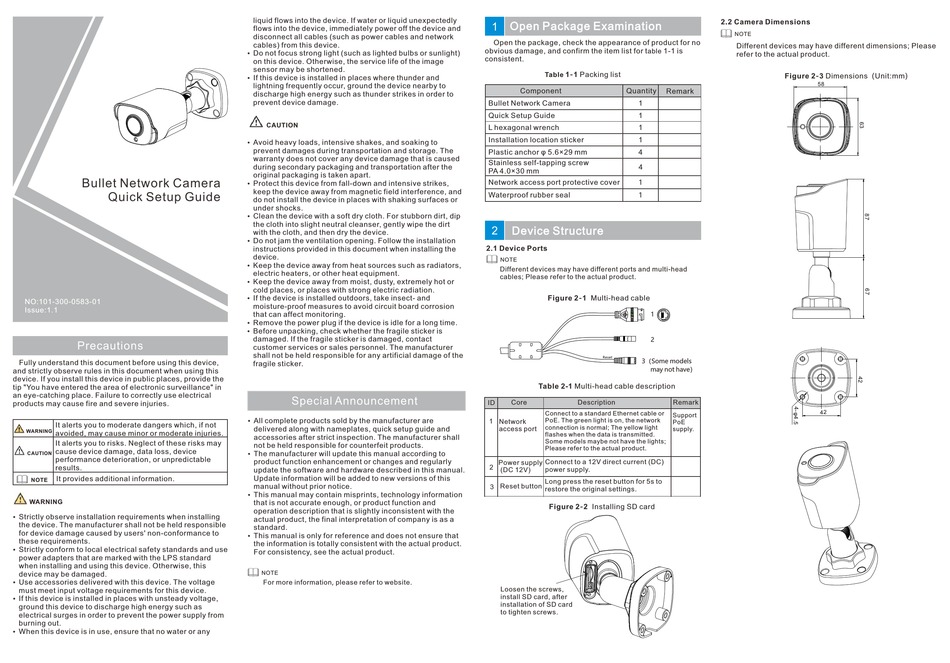

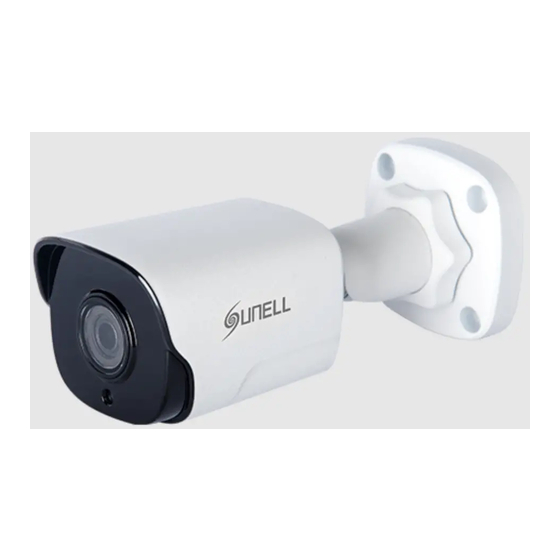

Bullet Network Camera
Quick Setup Guide
NO:101-300-0583-01
Issue:1.1

Precautions

Fully understand this document before using this device,
and strictly observe rules in this document when using this
device. If you install this device in public places, provide the
tip "You have entered the area of electronic surveillance" in
an eye-catching place. Failure to correctly use electrical
products may cause fire and severe injuries.
It alerts you to moderate dangers which, if not
WARNING
avoided, may cause minor or moderate injuries.
It alerts you to risks. Neglect of these risks may
cause device damage, data loss, device
CAUTION
performance deterioration, or unpredictable
results.
It provides additional information.
NOTE
WARNING
Ÿ Strictly observe installation requirements when installing
the device. The manufacturer shall not be held responsible
for device damage caused by users' non-conformance to
these requirements.
Strictly conform to local electrical safety standards and use
Ÿ
power adapters that are marked with the LPS standard
when installing and using this device. Otherwise, this
device may be damaged.
Ÿ Use accessories delivered with this device. The voltage
must meet input voltage requirements for this device.
Ÿ If this device is installed in places with unsteady voltage,
ground this device to discharge high energy such as
electrical surges in order to prevent the power supply from
burning out.
When this device is in use, ensure that no water or any
Ÿ
liquid flows into the device. If water or liquid unexpectedly
flows into the device, immediately power off the device and
disconnect all cables (such as power cables and network
cables) from this device.
Do not focus strong light (such as lighted bulbs or sunlight)
Ÿ
on this device. Otherwise, the service life of the image
sensor may be shortened.
If this device is installed in places where thunder and
Ÿ
lightning frequently occur, ground the device nearby to
discharge high energy such as thunder strikes in order to
prevent device damage.
CAUTION
Avoid heavy loads, intensive shakes, and soaking to
Ÿ
prevent damages during transportation and storage. The
warranty does not cover any device damage that is caused
during secondary packaging and transportation after the
original packaging is taken apart.
Protect this device from fall-down and intensive strikes,
Ÿ
keep the device away from magnetic field interference, and
do not install the device in places with shaking surfaces or
under shocks.
Clean the device with a soft dry cloth. For stubborn dirt, dip
Ÿ
the cloth into slight neutral cleanser, gently wipe the dirt
with the cloth, and then dry the device.
Do not jam the ventilation opening. Follow the installation
Ÿ
instructions provided in this document when installing the
device.
Ÿ Keep the device away from heat sources such as radiators,
electric heaters, or other heat equipment.
Keep the device away from moist, dusty, extremely hot or
Ÿ
cold places, or places with strong electric radiation.
If the device is installed outdoors, take insect- and
Ÿ
moisture-proof measures to avoid circuit board corrosion
that can affect monitoring.
Remove the power plug if the device is idle for a long time.
Ÿ
Before unpacking, check whether the fragile sticker is
Ÿ
damaged. If the fragile sticker is damaged, contact
customer services or sales personnel. The manufacturer
shall not be held responsible for any artificial damage of the
fragile sticker.
Special Announcement
All complete products sold by the manufacturer are
Ÿ
delivered along with nameplates, quick setup guide and
accessories after strict inspection. The manufacturer shall
not be held responsible for counterfeit products.
Ÿ The manufacturer will update this manual according to
product function enhancement or changes and regularly
update the software and hardware described in this manual.
Update information will be added to new versions of this
manual without prior notice.
This manual may contain misprints, technology information
Ÿ
that is not accurate enough, or product function and
operation description that is slightly inconsistent with the
actual product, the final interpretation of company is as a
standard.
This manual is only for reference and does not ensure that
Ÿ
the information is totally consistent with the actual product.
For consistency, see the actual product.
NOTE
For more information, please refer to website.

Open Package Examination

1
Open the package, check the appearance of product for no
obvious damage, and confirm the item list for t able
consistent.
Table 1-1 Packing list
Component Quantity
Bullet Network Camera 1
Quick Setup Guide 1
L hexagonal wrench 1
Installation location sticker 1
Plastic anchor φ 5.6×29 mm 4
Stainless self-tapping screw
4
PA 4.0×30 mm
Network access port protective cover 1
Waterproof rubber seal 1
2

Device Structure

2.1 Device Ports
NOTE
Different devices may have different ports and multi-head
cables; Please refer to the actual product.
Figure 2-1 Multi-head cable
1
2
Reset
3（Some models
may not have）
Table 2-1 Multi-head cable description
ID Core Description
Connect to a standard Ethernet cable or
PoE. The green light is on, the network
1 Network
connection is normal; The yellow light
access port
flashes when the data is transmitted.
Some models maybe not have the lights;
Please refer to the actual product.
Connect to a 12V direct current (DC)
Power supply
2
power supply.
(DC 12V)
Long press the reset button for 5s to

3 Reset button

restore the original settings.
Figure 2-2 Installing SD card
Loosen the screws,
install SD card, after
installation of SD card
to tighten screws.
2.2 Camera Dimensions
NOTE
Different devices may have different dimensions; Please
1-1 is
refer to the actual product.
Figure 2-3 Dimensions（Unit:mm）
58
Remark
Remark
Support
PoE
supply.
