Wavetronix Click 210 Installation & Quick Start Manual

Click Power Plant
INSTALLATION QUICK START GUIDE
Note. An authorized technician should perform installation and operation of these units. Persons other than authorized and
approved electrical technicians should NOT attempt to install the power plant, as there is a serious risk of electrical shock
through unsafe handling of the power source. Extreme caution should be used when connecting these units to an active
power supply.
1

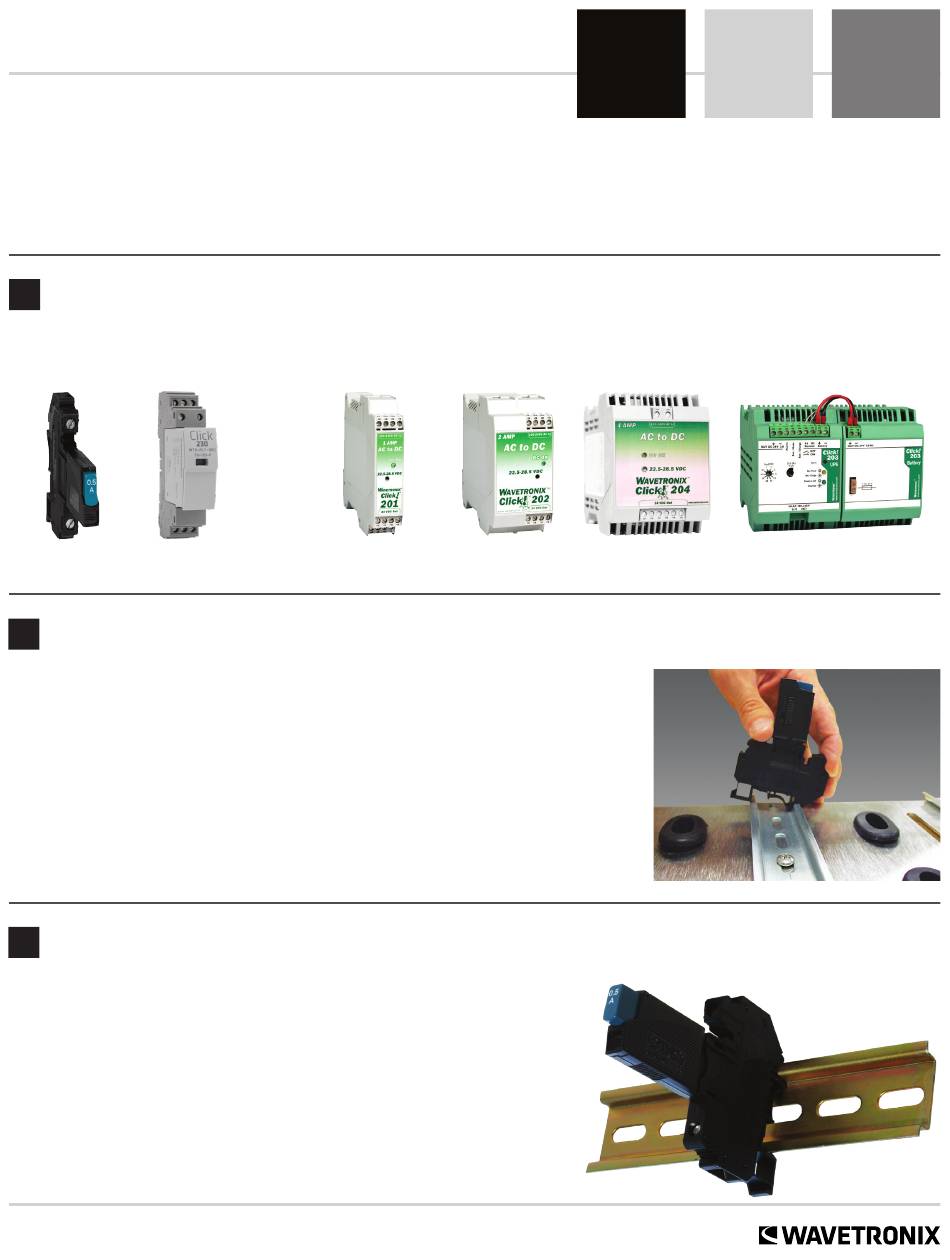

Identify the components

The following are included in the
Click power plant:
Click 210
Click 230
Circuit Breaker
AC Surge
2

Mount the devices

WARNING. Make sure power to AC mains is disconnected before wiring any of the
Click modules.
Mount each power plant device onto the DIN rail by hooking the lip over the edge
of the DIN rail and using a rocking motion to snap the module into place.
3

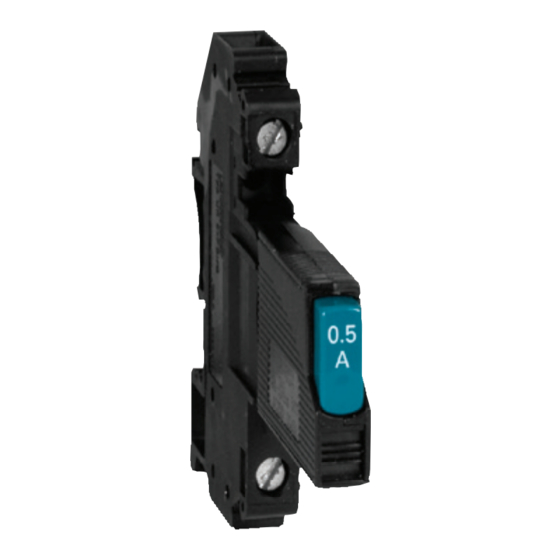

Wire the Click 210 circuit breaker

Follow the steps below to add a Click 210 circuit breaker and switch:
Mount the Click 210 onto the DIN rail.
1
2 Connect power in to the bottom of the module
3 Connect power out of the top of the module.
www.wavetronix.com
801.734.7200
One of the following power supplies will be included in the Click power plant:
Click 201 Click 202
AC to DC converter AC to DC converter
Click 204
AC to DC converter UPS/Battery (optional)
Click 203
