Summary of Contents for Bartec Pixavi Phone

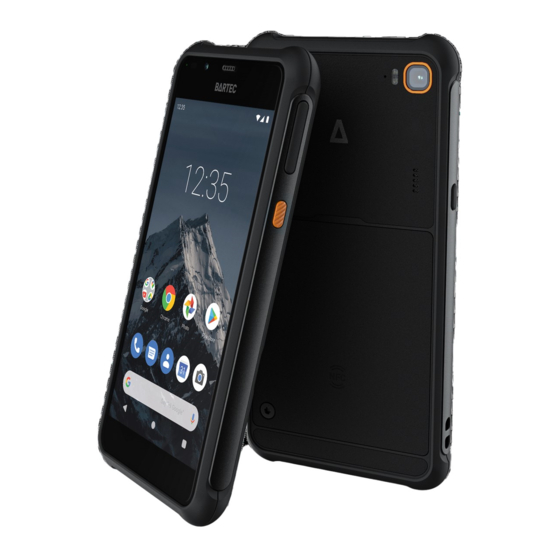

- Page 1 Quick Start Guide Product name: Pixavi Phone Pixavi Thermal Pixavi Cam Type: 17-S13*-1***/*********...
-
Page 2: Warranty
Introduction Congratulations on your Pixavi intrinsically safe device. All you need to get started with Pixavi Phone, Pixavi Cam and Pixavi Thermal can be found in this quick guide. If you need further assistance, try the Android help function, or visit: www.bartecmobility.com/support-portal... -
Page 3: Your Device
Your device 1: 5.5” OLED 2: Screen protector 3: Power button 4: Volume button (-/+) 5: Programmable button 6: Proximity/Ambient light sensor and status LED 7: Front Camera 8: Earpiece speaker 9: Lanyard mounting slot (remove battery pack for easy installation) 10: Magnetic USB connector 11: Microphone Do not remove the screen protector! Replace with type:... - Page 4 3: Main camera 4: Flash 5: Microphone ¹ ² ³ 6: Dual SIM/SD tray or SD tray (accessible behind battery pack) 7: Battery pack 8: Battery pack torx T10 fasteners ¹ Pixavi Phone 9: NFC ² Pixavi Thermal ³ Pixavi Cam...
-
Page 5: Getting Started
Use only nano-SIM cards and/or Micro SD card. Pixavi Phone and Pixavi Thermal supports 2x nano-SIM or 1x nano-SIM and 1x micro SD. Pixavi Cam supports 1x micro SD. Use only nano-SIM cards and/or Micro SD card. Pixavi Phone and Pixavi Thermal supports 2x nano-SIM or 1x nano-SIM and 1x micro SD. -
Page 6: Power On Your Device
The USB port shall only be used for charging the equipment when in the non-hazardous area For charging the device, use only Bartec approved chargers and cables Power on your device Press and hold the Power button to power on the device... -
Page 7: Programmable Button
Remove the battery pack. Replace the battery pack and tighten the fasteners. Only insert or remove the battery outside the potentially explosive atmosphere Only use batteries that have been certified by BARTEC, Type: 17-S1Z0-0001/****... -
Page 8: Troubleshooting And Support
Replace the battery if the operating time has shortened considerably. The standard warranty period for all BARTEC batteries is six months, whereby it is irrelevant whether the battery was acquired separately or was contained in the scope of the delivery of the device. -
Page 9: Product Marking
X8KYYTTXXXXXX sed for factory audits CC ID: TBU-X8K**** 5736C-X8K**** Battery Pack labels : Pixavi Thermal, Pixavi Phone : Pixavi Cam Do not replace battery or use USB port in hazardous area! WARNING op plate marking: Read user manual before use! Ne pas remplacer la batterie ou utiliser le port USB a l’intérieur d’une zone explosive... -
Page 10: Explosion Protection
Explosion protection ATEX Zone 1 / 21 Type 17-S13*-1***/********* Marking II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db -20°C ≤ Ta ≤ +60°C Test certificate CSANe 20ATEX4223X IECEx Zone 1 / 21 Type 17-S13*-1***/********* Marking Ex ib IIC T4 Gb Ex ib IIIC T135°C Db... -
Page 11: General Safety Requirements
Um (Charging / USB contacts) = 12V, this is ensured by using a charger type G7-S0Z0-0001 - G7-S0Z0-0004 or other accessories specified by Bartec GmbH. The ambient temperature during charging shall be in the range 0ºC to 45ºC. The USB port is also used for data download. The port has been assessed with a Um of 12 V and shall be installed in accordance with IEC 60079-14/EN 60079-14. -
Page 12: Specific Absorption Rate Data
Specific Absorption Rate Data The Pixavi Phone, Pixavi Thermal and Pixavi Cam is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. - Page 13 Legal Android is a trademark of Google LLC.
- Page 14 BARTEC GmbH Max-Eyth-Str. 16 97980 Bad Mergentheim, Germany Phone: +49 7931 597-0 info@bartec.com...
