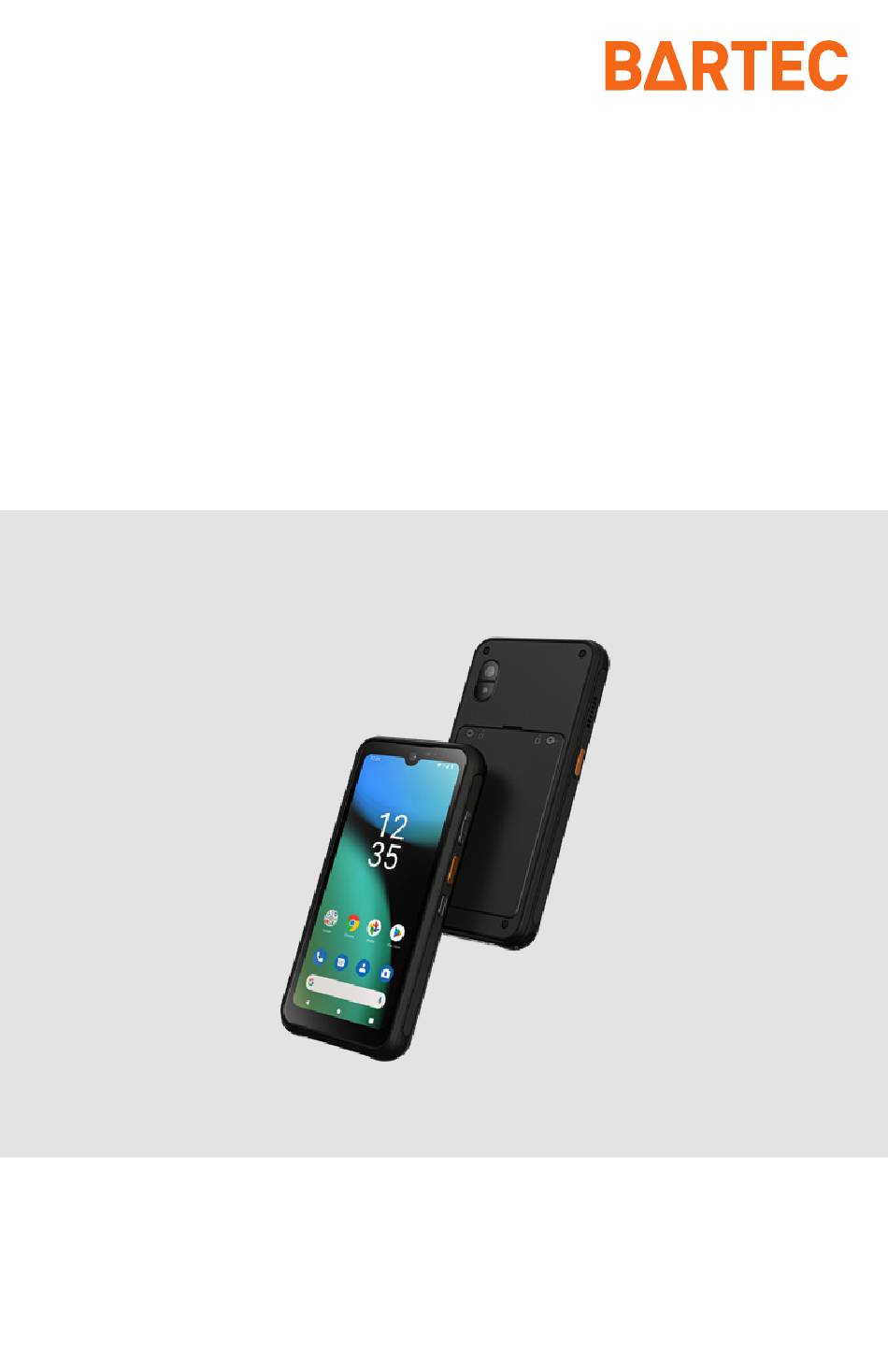

- Page 1 Quick Start Guide BARTEC SP9 Smartphone Type B7-S29P-****/******** ATEX / IECEx Zone 2/22 NEC/CEC 500/505 Class I, II, III Div2 / Zone 2/22...
- Page 2 BARTEC SP9 Smartphone Subject to technical changes. Changes, mistakes, and printing errors do not substantiate any claim to damages. B1-S290-7E0001 - April 2025...
-
Page 3: Table Of Contents
3.1. BARTEC SP9 Smartphone ..............19 3.2. Purpose of use ................... 19 Hardware features �������������������������������������������������������������������������20 Technical data ��������������������������������������������������������������������������������23 5.1. Explosion protection BARTEC SP9 Smartphone ........23 5.2. Technical specifications ................25 5.3. Battery ...................... 29 5.4. Device labelling ..................30 Transport and storage ��������������������������������������������������������������������32... -
Page 4: Basic Safety Information
Information on this Quick Start Guide Read carefully before putting the devices into operation The Quick Start Guide is a fixed part of the BARTEC SP9 Smartphone (hereinafter reffered to as “Device”). It must be kept in the direct vicinity of the Device. Installation, opera- tions, and service staff must also have access to the Quick Start Guide at all times. - Page 5 BARTEC SP9 Smartphone Safety and warning information is particularly emphasised in this Quick Start Guide and marked by symbols. DANGER/DANGER DANGER describes a directly imminent danger. If not avoided, death or severe injury will be the consequence. DANGER désigne un danger imminent. Si ce danger n’est pas évité, il peut entraîner la mort ou des blessures très graves.
-
Page 6: Handling The Device
1�1�2 Changes in the document BARTEC reserves the right to change the content of this document without notice. In the case of legal disputes, our General Terms and Conditions for Deliveries and Services apply. -
Page 7: Intended Use
BARTEC SP9 Smartphone 1�3� Intended Use The Device is a handheld piece of electrical equipment. It serves the pur- pose of the mobile recording, processing and/or radio transmission of data within hazardous areas. It can be used exclusively in combination with devices that comply with the requirements in the overvoltage category I. -
Page 8: Maintenance
Repairs to explosion-protected devices may only be performed by autho- rised personnel with original spare parts and according to the state of the art. Therefore, all repairs to the Device have to conducted by BARTEC. Contact information and instructions for repair requests and process- ing can be found at bartec.com/service-support/returns-repair... -
Page 9: Warranty
The duration of the manufacturer warranty is two (2) years for the Device and six (6) months for the battery and accessories starting from the date of transfer of risk, as defined in BARTEC’s General Terms and Conditions. -
Page 10: Co-Applicable Documents
10 - BARTEC SP9 Smartphone In the case of warranty, the goods must be returned to BARTEC after written agreement using the return merchandise authorization (RMA) form. This Quick Start Guide contains all important information on the subject of explosion protection. -
Page 11: Health And Safety Recommendations
- 11 BARTEC SP9 Smartphone 2�1� Health and safety recommendations 2�1�1 Ergonomic recommendations In order to avoid or minimize the potential risk of ergonomic injury, always follow good ergonomic workplace practices. Consult with your local Health and Safety Manager to ensure that you are adhering to your company’s safety programs to prevent employee injury. -
Page 12: Radio Frequency (Rf) Exposure Guideline
Reducing RF exposure - Appropriate use The Device complies with internationally recognized stan- dards related to human exposure to electromagnetic fields. Use only BARTEC tested and approved accessories to ensure RF exposure compliance. To satisfy RF exposure requirements, this Device must oper- ate with a minimum separation distance of 1 cm or more from a user’s body and nearby persons. - Page 13 - 13 BARTEC SP9 Smartphone The SAR limit set by the FCC/IC is 1.6W/kg averaged over 1 gram of actual tissue and 4.0W/kg averaged over 10 gram of actual tissue for extremities. The SAR limit recommended by the Council of the European Union is 2.0W/kg averaged over 10 g of actual tissue.
-
Page 14: Optical Devices
14 - BARTEC SP9 Smartphone 2�4� Optical devices 2�4�1 Risk Group classified according to IEC 62471:2006 and EN 62471:2008. Camera Risk Group 2 (RG2) - moderate risk flash 2�4�2 LED labeling B1-S290-7E0001 - April 2025... -
Page 15: Batteries
BARTEC SP9 Smartphone 2�5� Batteries CAUTION Risk of explosion if non-BARTEC approved batteries are used. Dispose of batteries according to instructions. Use only BARTEC approved batteries. Accessories which have battery charging capability are approved for use with the following battery model: Standard battery –... -
Page 16: Regulatory Labels
16 - BARTEC SP9 Smartphone • Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals. • Do not modify, disassemble, or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water, rain, snow or other liquids, or expose to fire, explosion, or other hazard. -
Page 17: United States And Canada Regulatory
- 17 BARTEC SP9 Smartphone 2�7� United States and Canada Regulatory 2�7�1 FCC Statement This Device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This Device may not cause harmful interference, and (2) this Device must accept any interference received, including interference that may cause undesired operation. -
Page 18: Brazil Regulatory
18 - BARTEC SP9 Smartphone 2�7�3 RF Exposure Requirements – FCC and ISED The FCC has granted an Equipment Authorization for this Device with all reported SAR levels evaluated in compliance with the FCC RF emission guidelines. SAR information on this Device is on file with the FCC and can be found under the Display Grant section of fcc.gov/oet/ea/fccid... -
Page 19: Bartec Sp9 Ex2 Smartphone
BARTEC SP9 Smartphone Device description 3�1� BARTEC SP9 Smartphone The BARTEC SP9 Smartphone is a smartphone specifically designed for use in industrial and hazardous areas. 3�2� Purpose of use The Devices are handheld electrical devices. They serve the purpose of entry, processing and (radio) transmission of data within hazardous areas. -
Page 20: Hardware Features
20 - BARTEC SP9 Smartphone Hardware features 6.1” AMOLED display Front camera Earpiece speaker Loudspeaker Programmable buttons Slot for wrist strap/neck strap B1-S290-7E0001 - April 2025... - Page 21 - 21 BARTEC SP9 Smartphone Main camera Flashlight Battery pack lock (Torx T8) Nano SIM card tray (below battery pack) NFC (located on top of the battery) Volume button (-/+) Power button B1-S290-7E0001 - April 2025...
- Page 22 22 - BARTEC SP9 Smartphone Top microphone Charging pads USB-C port Bottom microphone B1-S290-7E0001 - April 2025...
-
Page 23: Technical Data
- 23 BARTEC SP9 Smartphone Technical data 5�1� Explosion protection BARTEC SP9 Smartphone ATEX: Zone 2 / Zone 22 Type B7-S29P-****/******** BARTEC SP9 Smartphone Labelling E II 3G Ex ic IIC T4 Gc E II 3D Ex ic IIIC T135°C Dc -20 °C ≤... - Page 24 24 - BARTEC SP9 Smartphone NEC/CEC 500/505: Class I, II, III Div2 / Zone 2/22 Type B7-S29P-****/******** BARTEC SP9 Smartphone Labelling Class I, Div 2, Groups A, B, C and D; Class II, Div 2, Groups F and G; Class III, T4 Zone 2, AEx ic IIC T4 Gc Zone 22, AEx ic IIIB T135°C Dc...
-
Page 25: Technical Specifications
- 25 BARTEC SP9 Smartphone 5�2� Technical specifications 5�2�1 Performance characteristics Qualcomm QCM6490 Octa Core 2.7 GHz ® Operating system Powered by Android Memory 8 GB RAM; 128 GB Flash SIM card slot 1x Nano SIM and 1x eSIM 5�2�2... - Page 26 26 - BARTEC SP9 Smartphone 5�2�3 User environment Operating -20 °C to +55 °C ( -4 °F to + 131 °F) temperature Charging 0 °C to +45 °C (+32 °F to +113 °F) temperature Storage -30 °C to +60 °C (-22 °F to +140 °F)
- Page 27 - 27 BARTEC SP9 Smartphone 5�2�5 Voice and data transmission WAN Radio frequency GSM Bands: 850, 900, 1800, 1900 bands UMTS Bands: 1, 2, 4, 5, 8 LTE Bands: B1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 20, 28,...
- Page 28 28 - BARTEC SP9 Smartphone 5�2�6 Voice and data transmission Bluetooth Bluetooth Bluetooth 5.2 including Low Energy, long range ® and multiple broadcasts Maximum output 2402~2480MHz 8.74dBm power EU 5�2�7 Global Navigation Satellite System (GNSS) GNSS GPS, A-GPS, Glonass, Galileo and BeiDou 5�2�8...
-
Page 29: Battery
- 29 BARTEC SP9 Smartphone 5�3� Battery The life of the battery will depend on different factors including user behavior (e.g. app usage, video playback), device settings (e.g. screen brightness), ambient temperature, and more. Battery (only change and charge outside hazardous... -
Page 30: Device Labelling
30 - BARTEC SP9 Smartphone 5�4� Device labelling 5�4�1 BARTEC SP9 Smartphone Flash warning Marking B1-S290-7E0001 - April 2025... - Page 31 - 31 BARTEC SP9 Smartphone 5�4�2 Battery Battery marking outside Battery marking inside B1-S290-7E0001 - April 2025...
-
Page 32: Transport And Storage
BARTEC. Any damage caused through incorrect storage shall not be covered by the warranty provisions of BARTEC. Battery conforms to UN38.3. Due to the transport guidelines for air freight, all batteries are delivered Ex Works charged to max. -
Page 33: Commissioning And Operation
- 33 BARTEC SP9 Smartphone Commissioning and operation DANGER Avoid electrostatic charging in hazardous areas� Danger to life in explosive atmosphere! ► Do not dry wipe or clean the Device with chemical cleaning agents ► Wear suitable clothing and shoes ►... -
Page 34: Handling In Hazardous Areas
Les zones à risque d’explosion présentent un danger de mort! ► N‘utilisez que des accessoires originaux de BARTEC ► Autorisé uniquement en dehors de la zone à risque d‘ex- plosion : • Insérer/remplacer les carte Nano SIM •... -
Page 35: First Steps
Device (see chapter 7.4. Inserting/ changing the battery) and charging it using the USB-C cable included in the box or a BARTEC charging station (see chapter 7.5. Charging the Device/battery). Alternatively, the battery may be charged separately using a BARTEC charging station. -
Page 36: Inserting A Nano Sim Card
36 - BARTEC SP9 Smartphone ► If the battery was charged separately, insert it into the Device ► Switch on the Device ► Once the Device is turned on, connect the Device to the network and if the Device notifies that a new software is available, install the new... - Page 37 - 37 BARTEC SP9 Smartphone Work steps: 1. Slide metal lid from “LOCK” position to “OPEN” position 2. Open metal lid to allow Nano SIM card to be inserted 3. Place Nano SIM card against contacts, chip face down 4. Close metal lid...
-
Page 38: Inserting/Changing The Battery
38 - BARTEC SP9 Smartphone 5. Slide the metal lid of the Nano SIM card holder back into the “LOCK” position 7�4� Inserting/changing the battery The Device is supplied with a battery: Type Order number Lithium-ion battery 3.68 V/4300 mAh... - Page 39 - 39 BARTEC SP9 Smartphone 3. Press and hold the battery in place while fastening the screw using the battery tool Remove battery - work steps: 1. Remove any accessory attached to the Device 2. Press the Power button until the menu appears 3.
-
Page 40: Charging The Device/Battery
40 - BARTEC SP9 Smartphone 6. Lift the battery from the Device 7�5� Charging the Device/battery The battery has advanced protection circuitry to ensure safe use in hazardous areas. To ensure normal functionality of the battery, it is important to follow these guidelines: ►... - Page 41 USB-C cable provided by BARTEC. For safety reasons the USB-C port is disabled by default and will only activate by using the BARTEC USB-C cable. Trying to use other cables will bring up a warning dialog instructing the user to use the correct cable.
- Page 42 Device or the Device is not placed correctly in the charging station ► The USB-C cable or charging station is not connect- ed to a power source ► A non-BARTEC USB-C cable is being used Solid red The battery is charging and the battery charging level is under 20%.
-
Page 43: Amoled Display Considerations
AMOLED technology, this may cause ‘burn-in’ of such text or images on the display. Burn-in displays can only be fixed by replacing the Device’s screen, which can only be done at a BARTEC service center. BARTEC is not liable for performance issues caused by soft- ware applications supplied by third-party providers. -
Page 44: Disposal
Directive. The WEEE Directive provides the framework for the treatment of old electrical equipment throughout Europe. This means that you may not dispose of BARTEC devices together with usual household waste but rather separately in an envi- ronmentally compatible manner. BARTEC devices can also be brought to the collection points of public disposal companies. -
Page 45: Declaration Of Conformity
- 45 BARTEC SP9 Smartphone Declaration of Conformity B1-S290-7E0001 - April 2025... - Page 46 46 - BARTEC SP9 Smartphone B1-S290-7E0001 - April 2025...
- Page 47 - 47 BARTEC SP9 Smartphone B1-S290-7E0001 - April 2025...
- Page 48 BARTEC BARTEC GmbH Max-Eyth-Str. 16 97980 Bad Mergentheim Germany Phone: +49 7931 597 0 info@bartec.com bartec�com...
