Summary of Contents for Makita LS1214F
Page 1

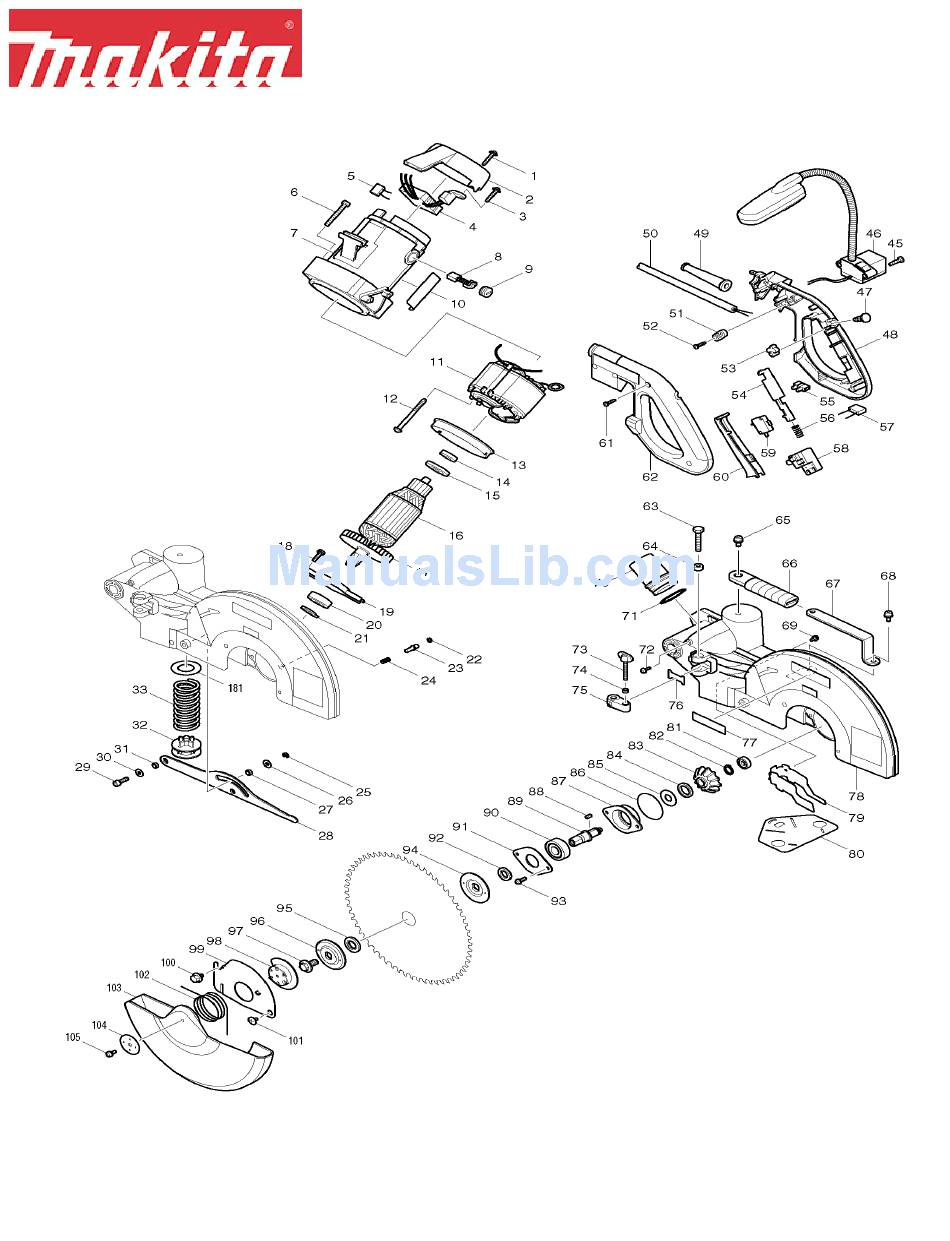

Parts Breakdown LS1214F Page 1 of 5 2/8/2008...
Page 2
Parts Breakdown LS1214F Page 2 of 5 2/8/2008...
Page 3
7 153907-0 MOTOR HOUSING CPL., LS1214 8 181047-4 CARBON BRUSH SET 154,5402A 9 643650-4 BRUSH HOLDER CAP 6.5-13.5, 5402A 10 860634-9 NAME PLATE, LS1214F 11 596156-0 FIELD ASS'Y 115V, LS1212 12 266059-9 T. SCREW, FLANGE 5X75,2414B 13 416264-0 BAFFLE PLATE, LS1212 14 211061-7 B.
Page 4
Parts Breakdown 75 317176-9 STOPPER ARM, LS1212 76 344045-1 STOPPER ARM PLATE, LS1211 77 819064-1 MAKITA MARK, HM1100C 77 819215-6 MAKITA LOGO LABEL, LS1214L 78 183896-5 BLADE CASE, LS1214 78 188379-0 79 345611-7 GUARD PLATE, LS1214L 79 345415-7 GUARD PLATE, LS1214...
Page 5
TRIANGLE RULE, LS1011 1,006 251887-5 SCREW M6X10, LS1030 1,007 322932-4 HOLDER 255, LS1013 1,008 A-85472 T.C.T. SAW BLADE 60T 1,008 A-94443 12X70T Q.MAKBLADE,LS1214F 1,009 782212-4 SOCKET WRENCH 13, LS1011 5,003 941202-8 F. WASHER 8, 5037NB 5,004 810151-9 Page 5 of 5 LS1214F...
