Summary of Contents for Makita LS1214

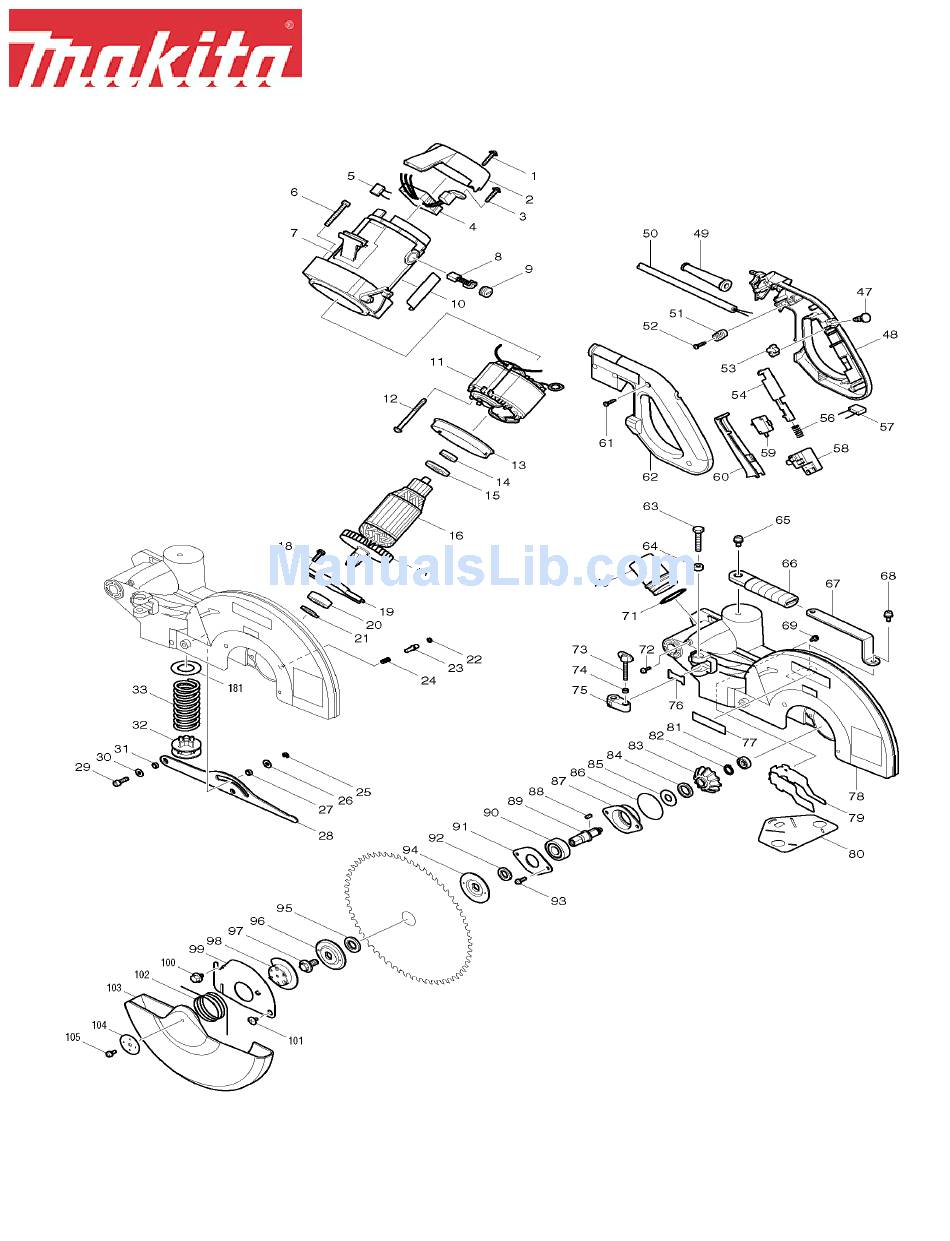

Page 1
Parts Breakdown LS1214 Page 1 of 5 2/8/2008...
Page 2
Parts Breakdown LS1214 Page 2 of 5 2/8/2008...
Page 3
3 265995-6 TAPPING SCREW 4X18, 4323K 4 631237-4 CONTROLLER, LS1212 6 911373-5 P.H. SCREW M6X50, LS1013 7 153907-0 MOTOR HOUSING CPL., LS1214 8 181047-4 CARBON BRUSH SET 154,5402A 9 643650-4 BRUSH HOLDER CAP 6.5-13.5, 5402A 10 860629-2 NAME PLATE, LS1214...
Page 4
83 226750-1 SPIRAL BEVEL GEAR 35, LS1212 84 262074-1 RUBBER RING 20, LS1013 85 267035-6 F. WASHER 14, 6805BV 86 213675-8 O RING 54, LS1214 87 316473-0 HOUSING W/O BEARING, LS1211 88 254202-2 KEY 4, 9924DB 89 322989-5 SPINDLE, LS1212...
Page 5
BASE CPL., LS1013 180 286212-1 CAP 20, LS1011 1,001 122523-9 DUST BAG, LS1040 1,002 122540-9 VISE ASS'Y, LS1212 1,003 153898-5 SUB-FENCE R CPL., LS1214 1,004 411478-6 SWITCH BUTTON, LS1011 1,005 762001-3 TRIANGLE RULE, LS1011 1,006 251887-5 SCREW M6X10, LS1030 1,007 322932-4...
