NetModule NB3720 User Manual page 13

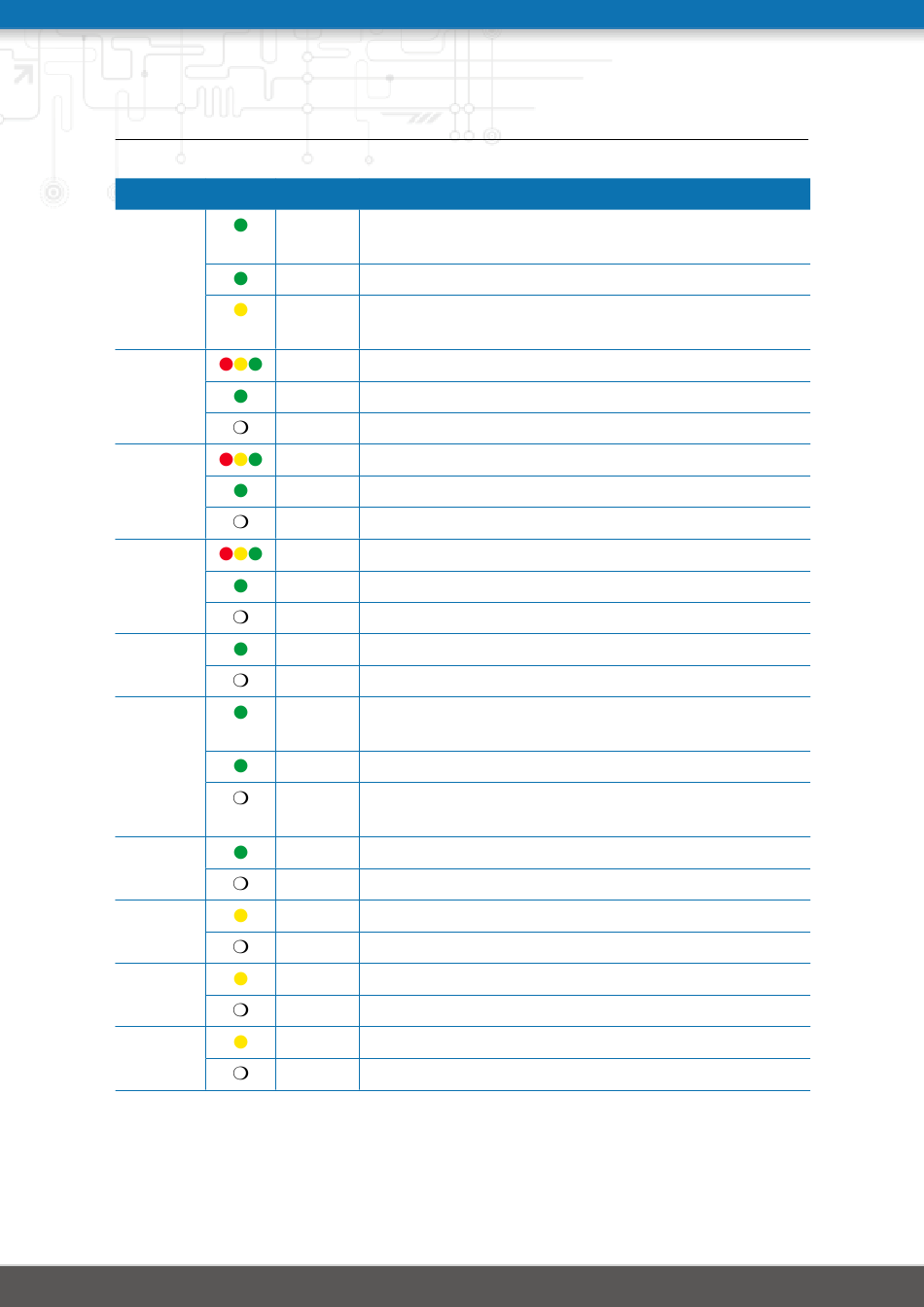

Label Color State
Status blinking The device is busy due to startup, software or configu-
Mob1
blinking Mobile connection 1 is being established.
WLAN1
blinking WLAN1 connection is being established.
WLAN2
blinking WLAN2 connection is being established.
VPN
GNSS
blinking GNSS is searching for satellites.
Voice
DO1
DO2
DI1
NB3720 User Manual 3.8
Function
ration update.
on The device is ready. The captions of the top bank apply.
on The device is ready. The captions of the bottom bank
apply.
on Mobile connection 1 is up.
off Mobile connection 1 is down.
on WLAN1 connection is up.
off WLAN1 connection is down.
on WLAN2 connection is up.
off WLAN2 connection is down.
on VPN connection is up.
off VPN connection is down.
on GNSS is turned on and a valid NMEA stream is avail-
able.
off GNSS is turned off or no valid NMEA stream is avail-
able.
on A voice call is currently active.
off No voice call is active.
on Normally open output port 1 is closed.
off Normally open output port 1 is open.
on Normally closed output port 2 is closed.
off Normally closed output port 2 is open.
on Input port 1 is set.
off Input port 1 is not set.
13
