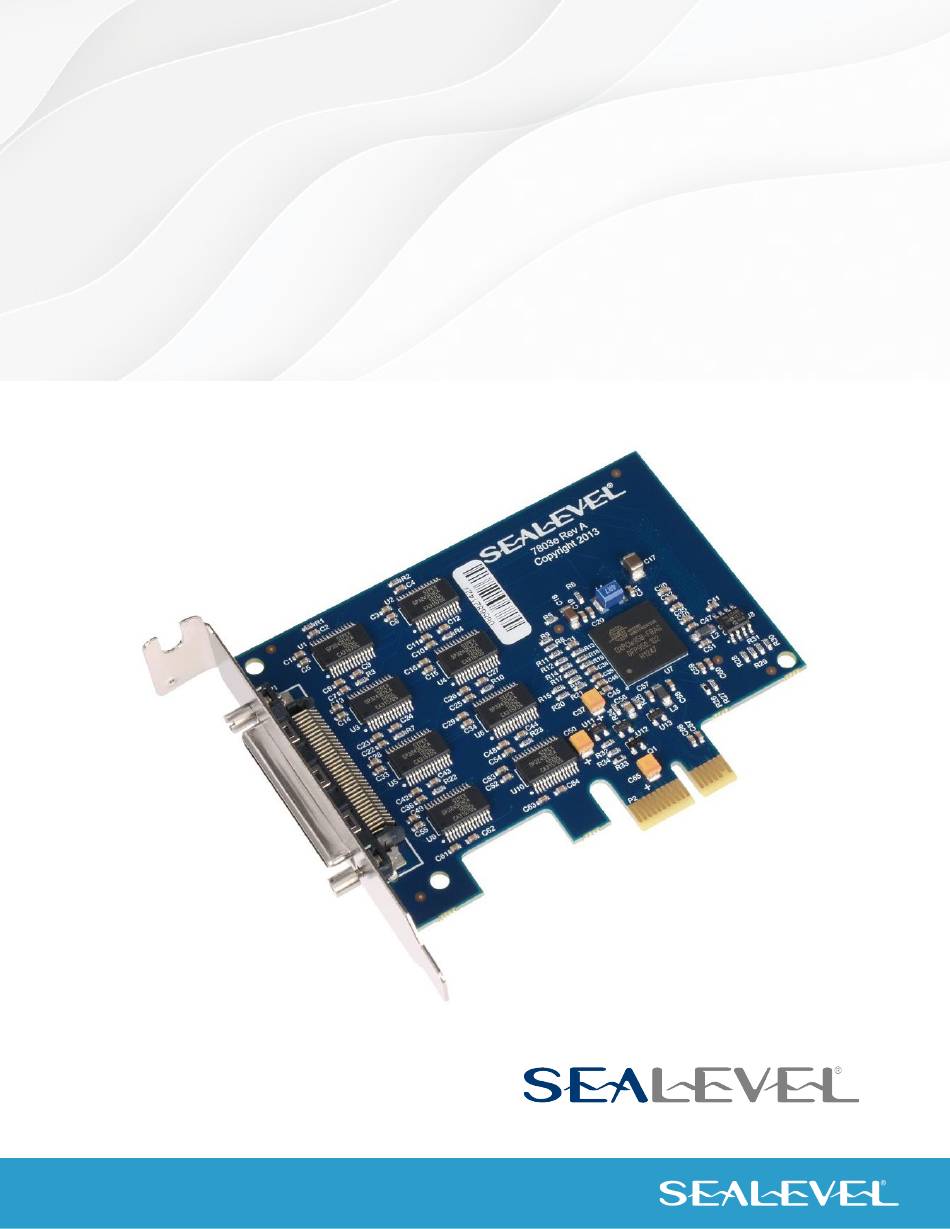

- Page 1 COMM+8.PCIe User Manual | 7803e © Sealevel Systems, Inc. 7803e Manual | SL9250 11/2022...
-
Page 2: Table Of Contents
APPENDIX B – HANDLING INSTRUCTIONS ................................. 15 APPENDIX C – ELECTRICAL INTERFACE ..................................16 APPENDIX D – ASYNCHRONOUS COMMUNICATIONS .............................. 17 APPENDIX E – MECHANICAL DRAWING ..................................18 APPENDIX F – COMPLIANCE NOTICES..................................19 WARRANTY ............................................20 © Sealevel Systems, Inc. 7803e Manual | SL9250 11/2022... -
Page 3: Introduction
Introduction The Sealevel COMM+8.PCIe is an eight-channel RS-232 PCI express Bus serial I/O adapter supporting data rates up to 921.6Kbps. The RS-232 compatibility allows for connection to devices utilizing the RS-232 electrical interface, such as modems, data-entry terminals, and plotters. -
Page 4: Before You Get Started
Before You Get Started What’s Included The COMM+8.PCIe is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. COMM+8.PCIe Serial I/O Adapter • 7803e – PCI Express Board with Low Profile PC Bracket 7803eS –... - Page 5 Optional Items Depending upon your application, you are likely to find one or more of the following items useful with the COMM+8.PCIe. All items can be purchased from our website (www.sealevel.com) by calling our sales team at (864) 843-4343. Terminal Block Kit (Item# KT106)
-
Page 6: Hardware Description
DB25M Serial Connectors The 7803e ships with an eight-port cable (Item# CA202) that includes eight DB25 male serial connectors. The pin out for these connectors is detailed in the following Technical Description section. © Sealevel Systems, Inc. 7803e Manual | SL9250 11/2022... -
Page 7: Hardware Configuration
Clock Modes The COMM+8.PCIe derives a 62.5MHz clock from the PCI express link which is divided by a 8 bit clock prescaler and a 16 bit clock divisor to provide a wide range of possible baud rates. Note that there are many combinations that can give the same result (e.g. -
Page 8: Software Installation
7. The software is now installed, and you can proceed with the hardware installation. Do not connect the hardware until the software has been successfully installed. To install Sealevel software, you must log in as an administrator or have administrator privileges in Windows. -
Page 9: Linux Installation
For additional software support, including QNX, please call Sealevel Systems’ Technical Support, (864) 843- 4343. Our technical support is free and available from 8:00 AM - 5:00 PM Eastern Time, Monday through Friday. For email support contact: support@sealevel.com. -
Page 10: Upgrading To The Current Seacom Driver
OSs it will be found in the ‘Programs and Features’ list. 3. Navigate to the Device Manager and remove the Sealevel adapter by right clicking on the line item choosing ‘Uninstall’. Depending on your product, it can be found under either ‘Multiport Serial adapters’... -
Page 11: Technical Description
Technical Description The COMM+8.PCIe provides eight RS-232 ports from a single PCIe slot. The COMM+8.PCIe utilizes the OXPCIe954 UART. This chip features programmable baud rates, data format, interrupt control and industry leading 128-byte transmit and receive FIFOs. The UARTs are register compatible with 16C450, 16C550, 16C654 and 16C750 UARTs. The FIFO depth can be changed to match the depth of these UARTs. -
Page 12: Rs-232 68-Pin)
RS-232 68-PIN) Port # © Sealevel Systems, Inc. 7803e Manual | SL9250 11/2022... -
Page 13: Specifications
10 to 90% R.H. Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption Supply line +3.3 VDC... - Page 14 No two adapters can occupy the same I/O address. Make sure the Sealevel Systems adapter is using a unique IRQ The IRQ is typically selected via an on-board header block. Refer to the section on Card Setup for help in choosing an I/O address and IRQ.
-
Page 15: Appendix B - Handling Instructions
Keep work area free of non-conductive materials such as ordinary plastic assembly aids and • Styrofoam. • Use field service tools such as cutters, screwdrivers, and vacuum cleaners that are conductive. © Sealevel Systems, Inc. 7803e Manual | SL9250 11/2022... -
Page 16: Appendix C - Electrical Interface
+10 volts) represents a binary 0 (space) and -12 volts (-3 to -10 volts) denote a binary 1 (mark). The RS-232 and the EIA/TIA-574 specification define two types of interface circuits Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The Sealevel Systems Adapter is a DTE interface. © Sealevel Systems, Inc. -
Page 17: Appendix D - Asynchronous Communications
The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e. 9600,N,8,1). © Sealevel Systems, Inc. 7803e Manual | SL9250 11/2022... -
Page 18: Appendix E - Mechanical Drawing
Appendix E – Mechanical Drawing © Sealevel Systems, Inc. 7803e Manual | SL9250 11/2022... -
Page 19: Appendix F - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 7803e Manual | SL9250 11/2022... -
Page 20: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
