Parts Breakdown
HP2070F
Page 1 of 3
2/8/2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the HP2070F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Makita HP2070F

Summary of Contents for Makita HP2070F

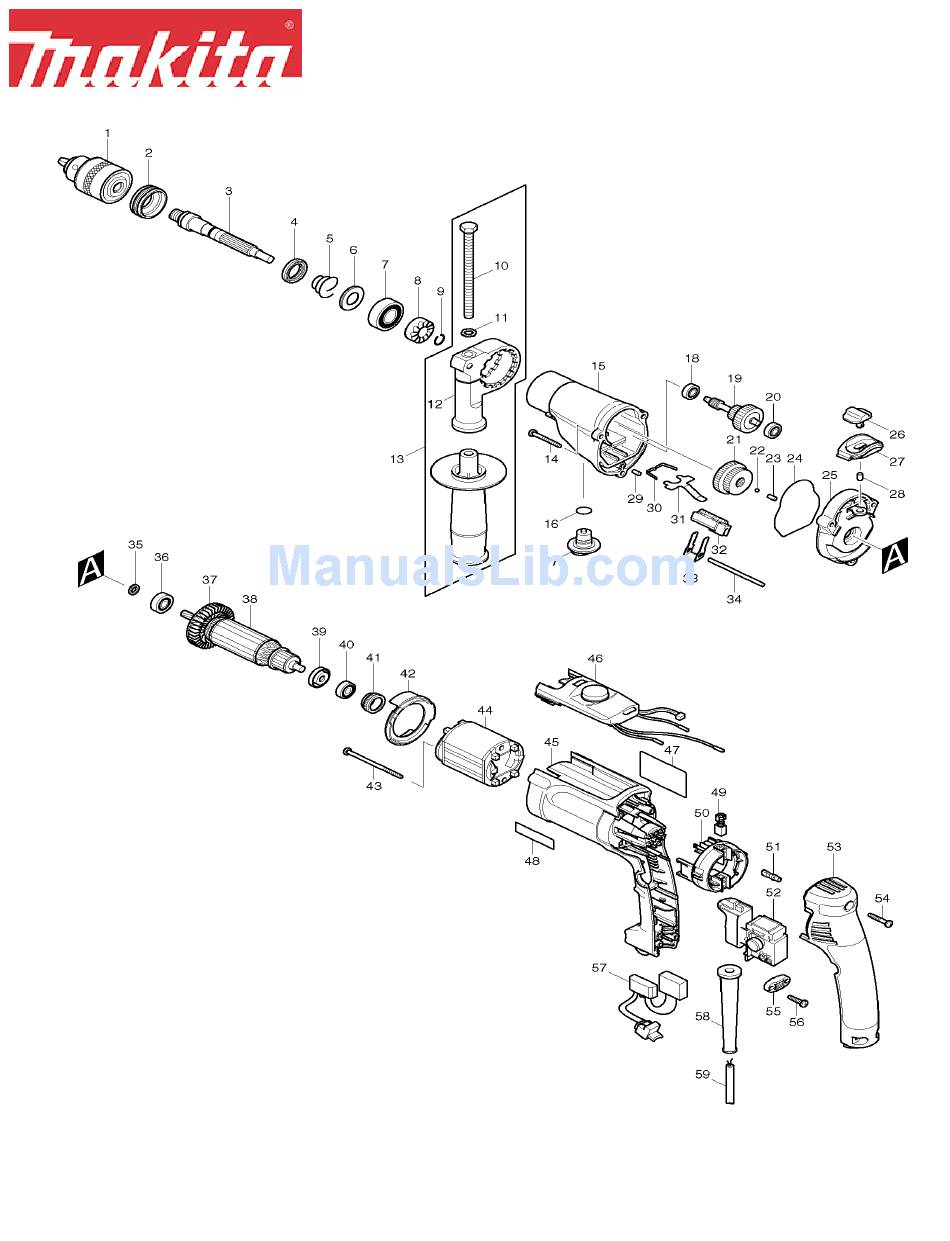

  • Page 1 Parts Breakdown HP2070F Page 1 of 3 2/8/2008...
  • Page 2 Parts Breakdown Fig # Part ID Part Name 1 193822-6 DRILL CHUCK S13, HP2070F 2 285839-4 BEARING RETAINER, HP2050F 3 324247-5 SPINDLE, HP2050F 4 213314-0 OIL SEAL 19, HP2030 5 233921-3 CONICAL COMP. SPRING, HP2050F 6 345224-4 CUP WASHER 15, HP2050F 7 211206-7 B.
  • Page 3 Parts Breakdown 59 664891-9 CORD 1,001 324219-0 DEPTH GAUGE,HP2050F 1,002 410102-8 KEY HOLDER, 6013BR 1,003 763430-3 CHUCK KEY S13, HP2040 1,004 824650-5 PLASTIC TOOL CASE, HP2050F 5,001 810134-9 Page 3 of 3 HP2070F 2/8/2008...
