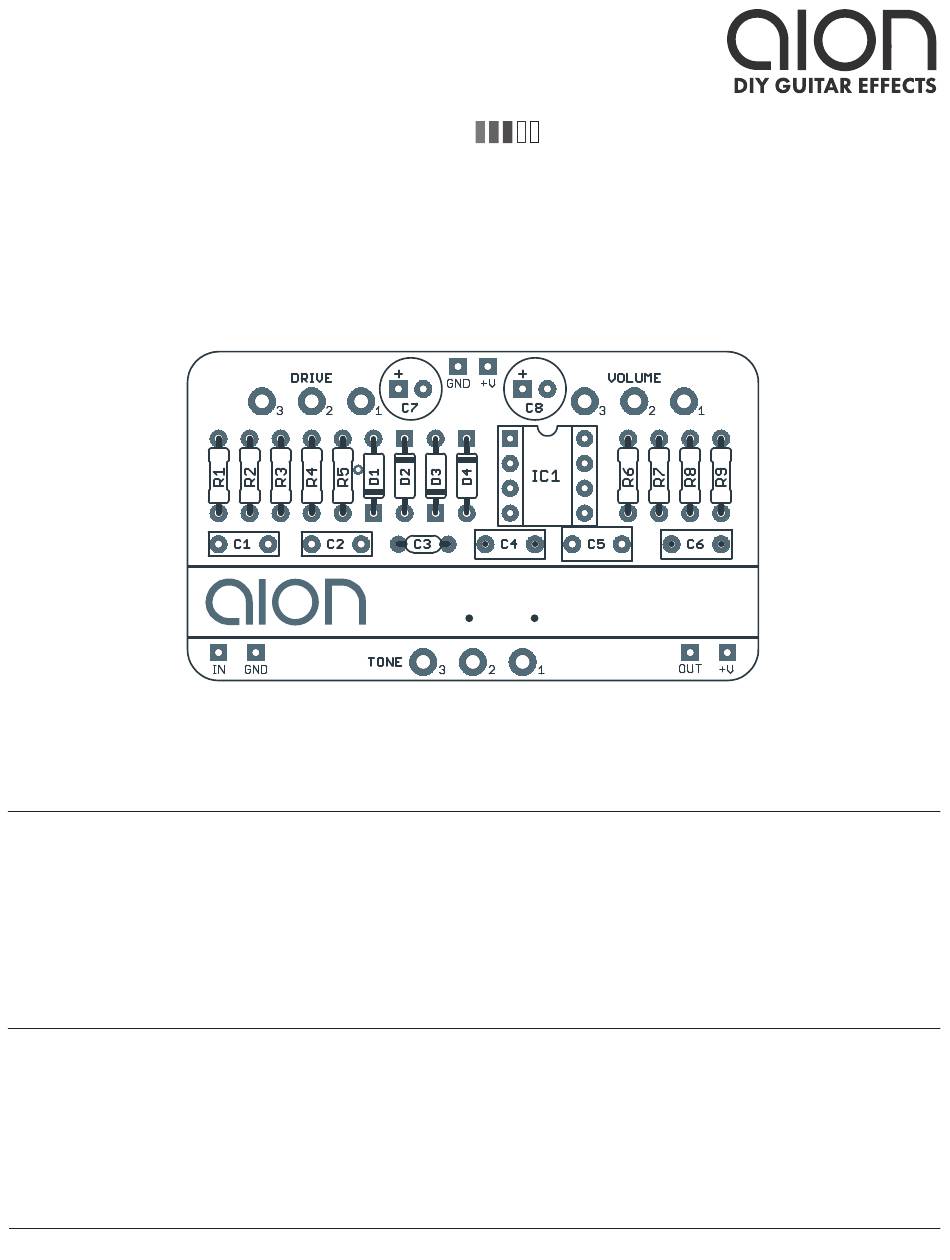

PROJECT NAME
BUSINESS CARD DRIVE
BASED ON
Lovepedal Eternity
EFFECT TYPE
Overdrive
PROJECT SUMMARY
A low-parts-count overdrive based on a stripped-down Tube Screamer, this circuit is the template for
many high-dollar boutique drive pedals.
OVERVIEW
The Business Card Drive is a fully-functional overdrive effect disguised as a business card. It's designed
to fit the same enclosure style as the new 125B projects, although since it doesn't come with a bypass
PCB, the bypass footswitch and LED must be wired manually.
A full-sized project based on the Lovepedal Eternity will be released soon.
USAGE
• Tone controls the treble response of the effect. The center point (12:00) is flat. When turned to the
left, it cuts treble, and when turned to the right, it boosts treble.
• Drive controls the amount of gain in the op-amp feedback diode clipping stage.
• Volume controls the overall output of the effect.
BUSINESS CARD DRIVE
BUILD DIFFICULTY
DOCUMENT VERSION
1.0.0 (2019-04-11)
https://aionelectronics.com
PCBs
Kits
Custom PCB Design

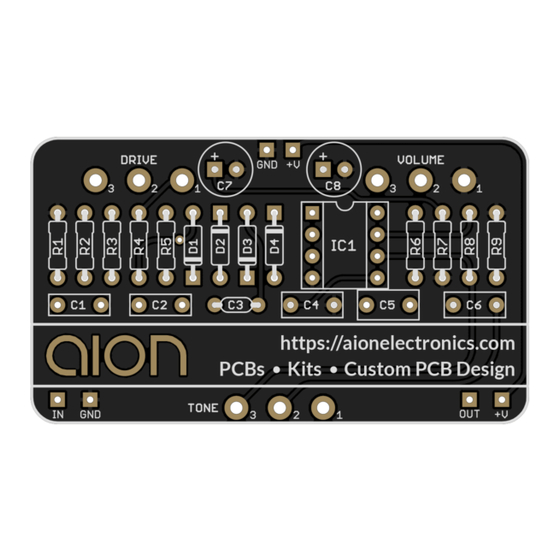

Actual size is 2.3" x 1.3".
Intermediate
1
Advertisement
Table of Contents
Related Manuals for aion BUSINESS CARD DRIVE
Summary of Contents for aion BUSINESS CARD DRIVE
- Page 1 Actual size is 2.3” x 1.3”. OVERVIEW The Business Card Drive is a fully-functional overdrive effect disguised as a business card. It’s designed to fit the same enclosure style as the new 125B projects, although since it doesn’t come with a bypass PCB, the bypass footswitch and LED must be wired manually.
- Page 2 LED current-limiting resistor. Adjust value to change LED brightness. JRC4558D Operational amplifier, DIP8 IC1-S DIP-8 socket IC socket, DIP-8 DRIVE 500kB 16mm right-angle PCB mount pot TONE 16mm right-angle PCB mount pot VOL. 500kB 16mm right-angle PCB mount pot BUSINESS CARD DRIVE...
- Page 3 “Son of Screamer” if you swap out a few parts. Here are the values to change if you want to build a Son of Screamer. • R2: 470k • R3: 4.7k • R4: 47k • R9: 220R • C2: 47n • C4: 220n • D2: jumper • D4: jumper • Tone: 20kW • Volume: 10kB BUSINESS CARD DRIVE...
- Page 4 SCHEMATIC 100uF 47uF IC1A JRC4558D IC1B JRC4558D TONE 47pF 150n 220n 100n 1N914 500kB DRIVE BUSINESS CARD DRIVE...
- Page 5 INCH 0.625” 0.625” ø3/8” ø3/8” ø1/2” VOLUME DRIVE x: -0.65, y: +1.71 x: 0.65, y: +1.71 ø9/32” ø9/32” TONE x: 0, y: +0.66 ø9/32” CENTER (0,0) FOOTSWITCH x: -0.775, y: -1.20 x: 0, y: -1.20 ø5/16” ø15/32” BUSINESS CARD DRIVE...
- Page 6 ENCLOSURE LAYOUT Enclosure is shown without jacks. See next page for jack layout and wiring. 125B BUSINESS CARD DRIVE...
- Page 7 WIRING DIAGRAM 125B Shown with optional 9V battery. If battery is omitted, both jacks can be mono rather than one being stereo. Leave the far-right lug of the DC jack unconnected. BUSINESS CARD DRIVE...
- Page 8 (In other words: you don’t have to go out of your way to advertise the fact that you use these PCBs, but please don’t go out of your way to hide it. The guitar effects industry needs more transparency, not less!) DOCUMENT REVISIONS 1.0.0 (2019-04-11) Initial release. BUSINESS CARD DRIVE...
