SECTIONS
3
Models:

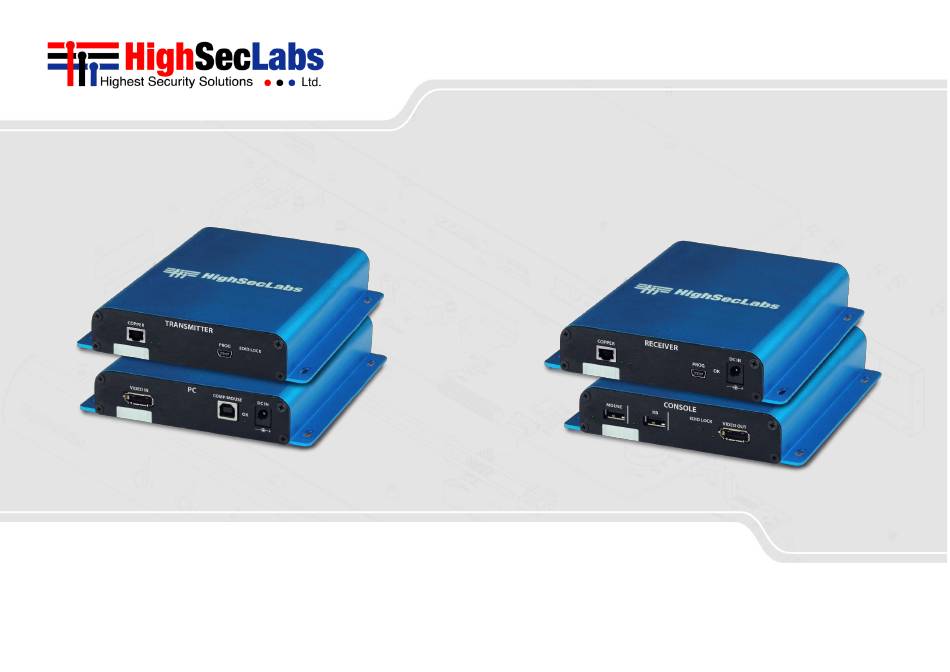

FICE11PH-M -DP\HDMI Secure Copper Extended KVM Isolator
FVCE11PH-M - DP\HDMI Secure Copper Extended Video Isolator
FICE11CH-M - USB C to HDMI secure Copper Extended KVM isolator
CNMFE11PH-M - DP\HDMI Secure Fiber Extended KVM Isolator for 10KM
HSL Secure 2-Port KVM Combiner Quick Setup Guide
Secure Extended Isolators | QUICK SETUP GUIDE
2
1
Secure Extended Isolators
FIFE11PH-M - DP\HDMI Secure Fiber Extended KVM Isolator
FVFE11PH-M - DP\HDMI Secure Fiber Extended Video Isolator
HDC19956 Rev. 1.1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HighSecLabs FICE11PH-M
Summary of Contents for HighSecLabs FICE11PH-M
- Page 1 Table of Contents SECTIONS Secure Extended Isolators Models: FICE11PH-M -DP\HDMI Secure Copper Extended KVM Isolator FIFE11PH-M - DP\HDMI Secure Fiber Extended KVM Isolator FVCE11PH-M - DP\HDMI Secure Copper Extended Video Isolator FVFE11PH-M - DP\HDMI Secure Fiber Extended Video Isolator FICE11CH-M - USB C to HDMI secure Copper Extended KVM isolator CNMFE11PH-M - DP\HDMI Secure Fiber Extended KVM Isolator for 10KM HDC19956 Rev.
- Page 2 Table of Contents SECTIONS TABLE OF CONTENTS Introduction HSL Secure Isolators Installation Connecting the Isolators Operation Running an EDID Capture Secure Extended Isolators Quick Setup Guide...
- Page 3 SECTIONS Table of Contents INTRODUCTION HSL Secure Extended Isolators Family The secure Extended Isolator extends video, audio Keyboard/Mouse signals up to hundreds of meters while it prevents vulnerable peripherals from mediating between compromised secure computers by ensuring that video, audio and KM flow are in a single direction.
- Page 4 Connect the two parts with a suitable cable through the connection port: Models FICE11PH-M and FVCE11PH-M - with a Copper Cable Models FIFE11PH-M, FVFE11PH-M and EDID CNMFE11PH-M - with Optical Fiber Cable...
- Page 5 Isolator’s VIDEO IN port, using the HDMI or DP video cable 2. PC keyboard and mouse connection: For FICE11PH-M, FIFE11PH-M models, connect the PC to the Isolator using a USB A to USB B cable. Connect the USB A end to the PC and the USB B end to the Isolator’s COMP/MOUSE port.
- Page 6 1. Video connection: For all models, connect the monitor/projector cable to the Isolator’s VIDEO OUT port. 2. PC keyboard and mouse connection: For FICE11PH-M, FIFE11PH-M models, connect a USB mouse and keyboard, to the Isolator Extender Receiver’s corresponding MOUSE and KB ports.
- Page 7 SECTIONS Table of Contents INSTALLATION Step 4 - Power ON the Isolator Extender 1. For all models, connect the power adapters on both the Isolator Extender Transmitter and Receiver at the PC SIDE, DC IN port. Power ON the unit by plugging it into an AC wall outlet.
-
Page 8: Operation
Table of Contents SECTIONS OPERATION Running an EDID Capture Note: An EDID capture needs to be performed for new installations and Before using the Isolator, run a one-time EDID capture on both sides – Transmitter and when changing a display. Receiver. - Page 9 Highseclabs.com ©2019 All rights reserved. HSL logo and product names are trademarks or service trademarks of HighSecLabs Ltd (HSL). All other marks are the property of their respective owners. Images for demonstration purposes only. This document may contain confidential and/or proprietary information of HSL Corporation, and its receipt or possessiondoes not convey any right to reproduce, disclose its contents, or to manufacture or sell anything that it may describe.
