HighSecLabs FV11D-M Quick Setup Manual

Secure kvm isolators
Hide thumbs

Advertisement

Table of Contents

Models:
FV11D-M – Secure DVI-I Video Isolator
FV11H-M – Secure HDMI Video Isolator
FV11PH-M – Secure DP/HDMI Video Isolator
SECURE K VM ISOLATORS | QUICK SETUP GUIDE
FI11D-M - Secure DVI-I KVM Isolator
FI11H-M - Secure HDMI KVM Isolator
FI11PH-M - Secure DP/HDMI KVM Isolator
HDC19412 Rev. 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV11D-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HighSecLabs FV11D-M

Summary of Contents for HighSecLabs FV11D-M

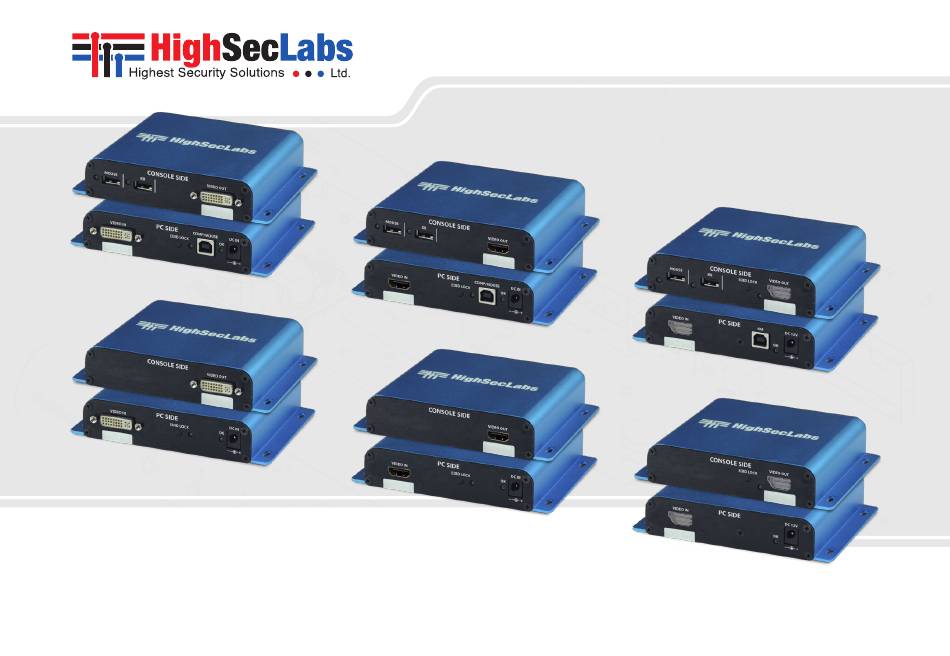

  • Page 1 SECURE K VM ISOLATORS | QUICK SETUP GUIDE Models: FV11D-M – Secure DVI-I Video Isolator FI11D-M - Secure DVI-I KVM Isolator FV11H-M – Secure HDMI Video Isolator FI11H-M - Secure HDMI KVM Isolator FV11PH-M – Secure DP/HDMI Video Isolator FI11PH-M - Secure DP/HDMI KVM Isolator...
  • Page 2 SECTIONS Table of Contents TAbLE Of COnTEnTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 HSL Secure Isolators.
  • Page 3 SECTIONS Table of Contents InTRODUCTIOn HSL Secure Isolators The secure Isolator prevents vulnerable peripherals from mediating between compromised and secure computers by ensuring that video and audio flow in a single direction. Display or Projector Computer or Matrix HSL KVMA Video Security Isolator Video...
  • Page 4 SECTIONS Table of Contents InSTALLATIOn Connecting the Isolator Step 1 – Connect the PC to the Isolator’s PC SIDE: 1. Video connection: for all models, connect the PC to the Isolator’s VIDEO In port, using the corresponding video cable (DP/HDMI, DVI or HDMI).
  • Page 5 SECTIONS Table of Contents InSTALLATIOn Step 2 – Connect the peripherals to the Isolator’s CONSOLE SIDE: Step 3 – Power ON the Isolator 1. Video connection: for all models, connect the monitor/projector’s 1. for all models, connect the power adapter to the Isolator’s PC SIDE, cable to the Isolator’s VIDEO OUT port.
  • Page 6 SECTIONS Table of Contents OPERATIOn Running an EDID Capture To run an EDID capture: before using the Isolator, run a one-time EDID capture. This prevents the continuous transfer of potentially malicious data - from the display to 1. On the PC SIDE, short-click the EDID LOCK button – for less than the PC –...
  • Page 7 If you are aware of a potential security vulnerability while installing this product, • Plug the power cord into a grounded (earthed) outlet that is easily accessible at contact Technical Support immediately by: • Web form: www.highseclabs.com/support/case/ all times. • Disconnect the power from the product by unplugging the power cord from •...
  • Page 8 Highseclabs.com ©2023 All rights reserved. HSL logo and product names are trademarks or service trademarks of HighSecLabs Ltd (HSL). All other marks are the property of their respective owners. Images for demonstration purposes only. This document may contain confidential and/or proprietary information of HSL Corporation, and its receipt or possession does not convey any right to reproduce, disclose its contents, or to manufacture or sell anything that it may describe.
