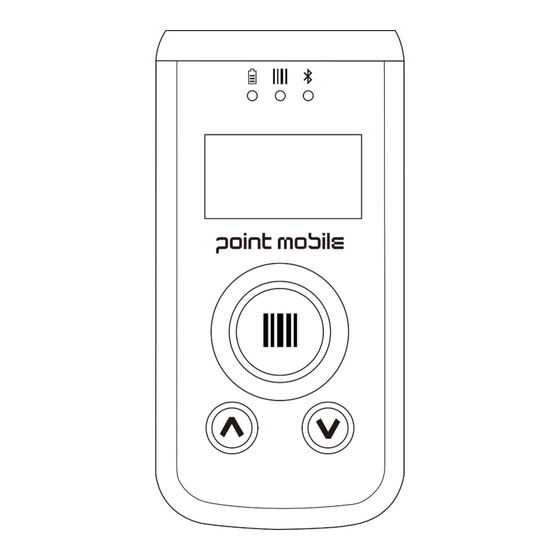

Point Mobile PM3 User Manual

Bluetooth scanner
Hide thumbs Also See for PM3:
Table of Contents

Advertisement

Quick Links

Download this manual
BLUETOOTH SCANNER
PM3
PM3
User Manual
CONTENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Point Mobile PM3

Summary of Contents for Point Mobile PM3

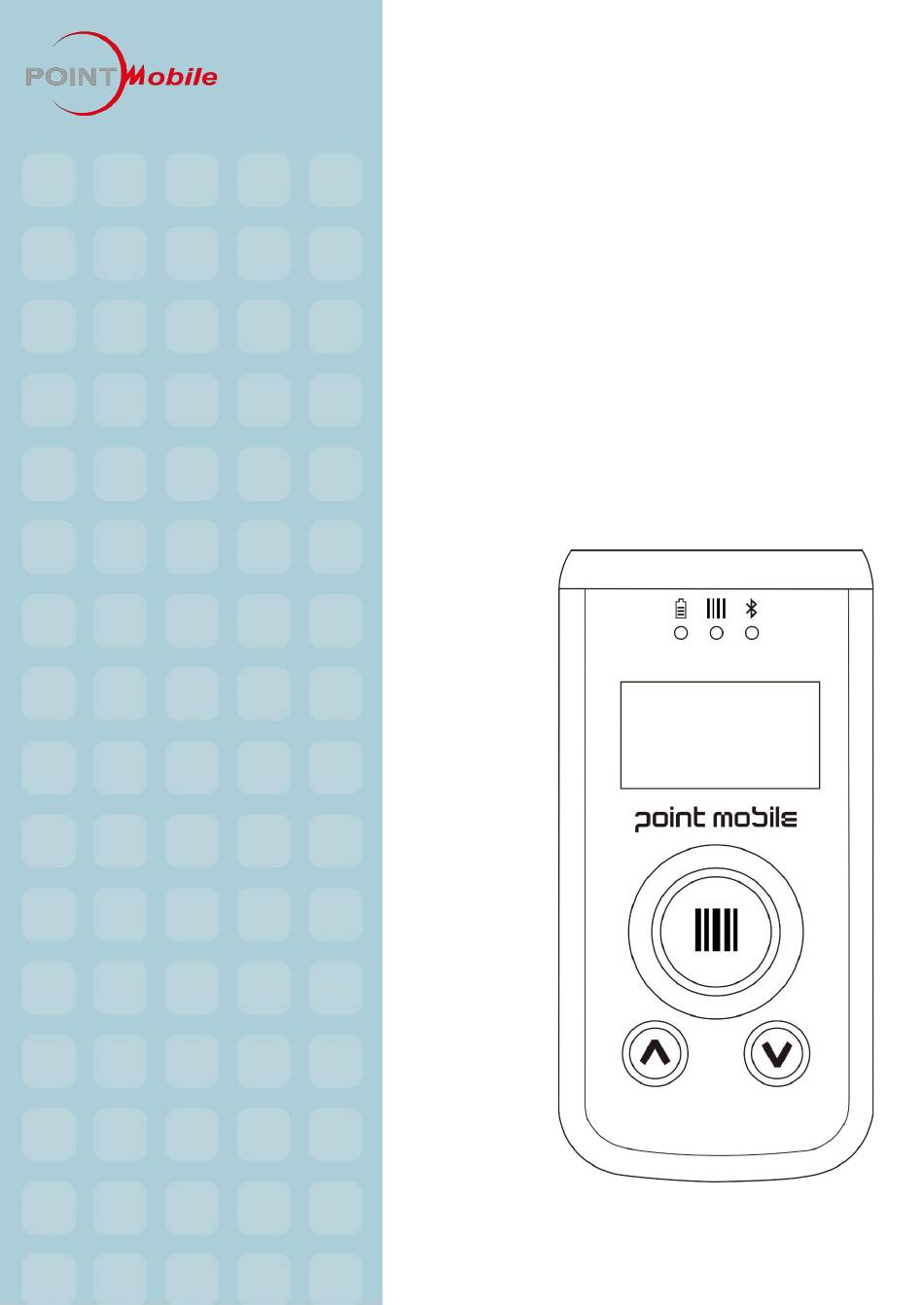

  • Page 1 BLUETOOTH SCANNER User Manual CONTENTS...

  • Page 2: Table Of Contents

    PM3 User Manual Table of Contents Introduction ....................4 1.1 About PM3 Bluetooth Scanner ..................4 1.2 Symbols in this manual ....................4 1.3 Accessories ........................5 Getting Started ....................6 2.1 Charge the Device......................6 2.2 Turn Your Device On & Off ....................6 Get to Know Your Device ................
  • Page 3 PM3 User Manual 6.6 Scanning Positions ......................16 Bluetooth ...................... 17 7.1 Enabling the Bluetooth ....................17 7.2 Pairing Bluetooth Devices ....................17 7.3 Reconnecting HID ......................17 User Menus ....................18 Admin Menus ....................19 Initializing the Memory ................24 Using the USB Memory in Connection with PC ........

  • Page 4: Introduction

    Introduction This manual generally provides you with the safety information and basic features and operations of the PM3 device. Please read all safety precautions and this manual carefully before using your device and peripherals to ensure safe and proper use.

  • Page 5: Accessories

    INPUT: AC100~240V 50/60Hz, OUTPUT: DC5V 0.7A Power Supply Cables Packed with the Power Supply Others Customized necklace String (when requested) PM3 Bluetooth Scanner contains the following items basically:  Bluetooth scanner  5V/0.7A AC Adaptor with USB type C cable  AC Plugs ☞...

  • Page 6: Getting Started

    Getting Started 2.1 Charge the Device Battery pack is assembled inside of the PM3 Bluetooth scanner. Charge the device with the charging cable for about 4 hours before initial use. Attach the appropriate plug adapter to the plug of the power cable.

  • Page 7: Get To Know Your Device

    PM3 User Manual Get to Know Your Device 3.1 Front Panel Layout LED Indicators Buttons 3.2 Back Panel Layout Wire spring mount hole Lanyard mount hole Battery Installed Inside of the Device For information about battery power, see Battery Power.

  • Page 8: Left Side Panel Layout

    PM3 User Manual 3.3 Left Side Panel Layout Speaker 3.4 Top Panel Layout Image engine window (with engine) Image Engine Window The angled image engine reads and decodes most popular bar code symbolizes. For more information, see Using the Image Engine.

  • Page 9: Led Indicator

    Charge the Bluetooth scanner with AC Adaptor for about 4 hours before initial use. 3.9 Sleep Mode Sleep Mode suspends PM3 operation. The device appears to be off when in Sleep Mode. The device is programmed to go into Sleep Mode automatically when inactive for a specified period of...

  • Page 10: Pm3 Technical Specifications

    PM3 User Manual 3.10 PM3 Technical Specifications Model Operating System Firmware Processor ATMEL SAM4S16C, 32-bit ARM® Cortex® -M4 RISC processor 120Mhz Memory 1MB(PGM), 4MB Storage Flash, 128KB RAM Bright OLED/ 0.96 inch (21.74mm x 11.18mm Active Area) Display 128x64 Dot Passive Matrix/Monochrome (Blue)

  • Page 11: Using The Buttons

    PM3 User Manual Using the Buttons Scan button Up button Down button Scan Button Located at the center for easy access with either hand. Scanning Barcodes or choosing options in menu. Up / Down Button Located at the bottom left / right.

  • Page 12: Using The Image Engine

    PM3 User Manual Using the Image Engine 5.1 Overview The BLUETOOTH SCANNER contains an SE4710 2D image engine that instantly reads all popular 1D and 2D bar codes and supports omni-directional aiming and decoding or a SE965HP, SE655 1D laser engine that reads all popular 1D bar codes. The image engine can also capture digital images, such as signatures and pictures.

  • Page 13: Available Image Engines

    PM3 User Manual 5.2 Available Image Engines The BLUETOOTH SCANNER is equipped with an SE4710. 5.3 Depth of Field Depth of Field for SE4710 5.4 Supported Bar Code Symbologies Symbology Type Symbology Name SE4710 UPC A, UPC E, UPC E1, EAN 8, EAN 13, BOOKLAND EAN,...

  • Page 14: Using The Laser/Ccd Engine

    PM3 User Manual Using the Laser/CCD Engine 6.1 Overview The BLUETOOTH SCANNER (SE965HP laser version, SE655 CCD version) contains a laser diode that emits a beam toward an oscillating mirror that scans through the code and the reflected light is bounced off of two mirrors back to the collector. The laser version reads all popular 1D bar codes.

  • Page 15: Supported Bar Code Symbologies

    PM3 User Manual Depth of Field for SE655 6.4 Supported Bar Code Symbologies Symbology Type Symbology Name SE965HP UPC A, UPC E, UPC E1, EAN 8, EAN 13, BOOKLAND EAN, Symbologies CODE 128, GS1 128(EAN 128), ISBT 128, CODE 39, TRIOPTIC...

  • Page 16: Scanning Positions

    PM3 User Manual should be read farther from the unit. When the bar code is successfully decoded, the scan LED lights blue and the terminal beeps. 6.6 Scanning Positions The aiming beam must be aimed across the entire bar code to provide you with the best scanning performance.

  • Page 17: Bluetooth

    Launch PMSync app from your phone and search the device by selecting the button below. Select a device from the list and connect. 7.3 Reconnecting HID When HID is disconnected while using PM3 device, reconnection is available by following the options below. Admin Menu > Bluetooth > HID Settings > HID Reconnect > Enabled...

  • Page 18: User Menus

    PM3 User Manual User Menus To use the User Menu, Select User Settings in the main menu Auto Scan You can select Auto Scan and the scanning time. Default: Disabled & 0.5 sec Beeper Volume Beeper Volume can be adjusted.

  • Page 19: Admin Menus

    PM3 User Manual Admin Menus To use the administrator menu, select Admin Menu in the main menu. General uses may not change the settings of the admin menu. Ask for help to an administrator when changes are required. Barcode/Scan View Data...
  • Page 20 PM3 User Manual 1.4.6 Save Timeout (SE965, SE4710) - Set power save timeout. - Default: 1 second 1.4.7 Terminator - Set the terminator text when transmitting the barcode. - Default: None 1.4.8 Transmit Barcode ID - Set the Barcode ID Transmission.
  • Page 21 PM3 User Manual 1.4.16 GS Replace - Replace or remove the Group Separator. 1.4.17 Length Limit - Set the maximum length of the decoded data. - Default: Infinite Duplicate - Set to check if data is duplicated when scanning - Duplicated data is not saved when the device is set to Enabled...
  • Page 22 PM3 User Manual HID Settings 2.6.1 Connect OS Choose the OS type to be connected with PM3 between Android and Windows. - Default: Android 2.6.2 HID Reconnect - Set the function of reconnection on HID transmission mode. - If there is HID connection record, and it is currently disconnected, you can set it to reconnection by using DOWN button.
  • Page 23 PM3 User Manual USB Settings 3.2.1 USB Mode Using the USB memory in You can select the USB connection method. See connection with System Settings 3.3.1 Sleep Timeout 3.3.2 Date/Time 3.3.3 Button Lock 3.3.4 Menu Lock 3.3.5 Power Save 3.3.6 Factory Reset 3.3.7 F/W Update...

  • Page 24: Initializing The Memory

    PM3 User Manual Initializing the Memory To delete the data saved in storage: Select Reset Memory in the main menu Check the message of Erase All Data? and select Yes Wait until deleting is completed Using the USB Memory in Connection with PC When connecting with PC, you can select the serial type and disk type.

  • Page 25: Troubleshooting And Note

    3. Enter UP > UP > DOWN > SCAN button in order. 4. Select ROM Boot and then, select Save and Yes. 5. After the PM3 boots up in ROM mode, Scan LED lights red and Bluetooth LED light blue.
  • Page 26 Select the firmware file and click GO. Wait until the process is done. Step 3. After update After updating the PM3, disconnect the USB cable from the PM3. To boot the PM3 up to normal mode, press UP + DOWN + Scan button simultaneously.

  • Page 27: Factory Reset

    PM3 User Manual 12.2 Factory Reset Hard Reset The device is reset when pressing the SCAN, UP, and DOWN buttons at the same time. Factory Reset If the device operates abnormally even if you performed a hard reset, it may be because wrong value setting.

  • Page 28: Safety Regulations

    PM3 User Manual Safety Regulations This section outlines the safety precautions associated with using PM3 Bluetooth scanner. ☞ NOTE: PM3 Bluetooth scanners meet or exceed the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to read this manual carefully before performing any type of connection to the Bluetooth scanner and operate them according to the agency guidelines described in the manual.

  • Page 29: General Safety Rules

    Use only the components supplied by the manufacturer for the specific PM3 being used. Do not attempt to disassemble the PM3 Bluetooth scanner, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty.

  • Page 30: Laser Safety

    If the above laser light label is attached to your device, it indicates the product contains a laser engine or laser aimer that emits the laser light. The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of PM3 Bluetooth scanner.

  • Page 31: Led Safety

    13.6 CB Scheme This device complies with CB Scheme IEC 60950-1 13.7 Radio Compliance PM3 RF terminals are in conformity with all essential requirements of the R&TTE Directive (1999/5/EC). This device is marked with in accordance with the Class II product requirements specified in the R&TTE Directive, 1999/5/EC.

  • Page 32: Canadian Compliance

    PM3 User Manual The product marked with crossed out wheeled bin must be disposed separately from municipal waste. For more detailed information about disposal, reuse, and recycle system, contact your local or regional waste administration. 13.9 Canadian Compliance This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject...
