Quick Start Guide

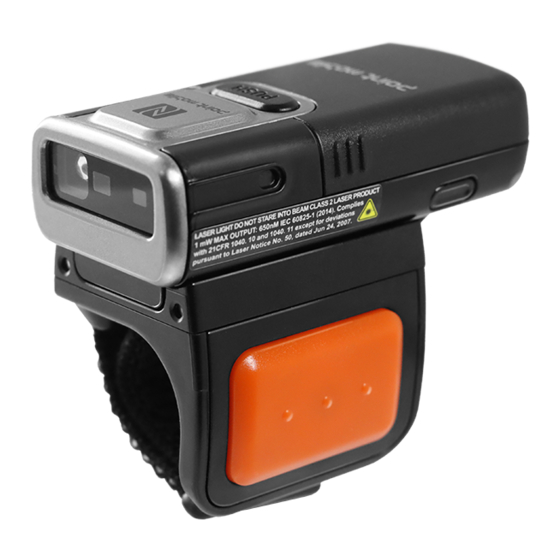

PM5
(Single trigger SKU)
V 2.0, Apr 2021
Copyright © 2021 Point Mobile Co., Ltd. All rights reserved.
Point Mobile Co., Ltd. is the designer and manufacturer of mobile handheld devices.
The Point Mobile logo is a registered trademark and symbol of Point Mobile Co., Ltd.
Features and specifications are subject to change without prior notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Point Mobile PM5
Summary of Contents for Point Mobile PM5
- Page 1 Copyright © 2021 Point Mobile Co., Ltd. All rights reserved. Point Mobile Co., Ltd. is the designer and manufacturer of mobile handheld devices. The Point Mobile logo is a registered trademark and symbol of Point Mobile Co., Ltd. Features and specifications are subject to change without prior notice.
-
Page 2: Standard Package
Standard Package Ring Scanner Parts PM5 Ring Scanner with battery pack 1. Scanner 2. NFC tagging area 3. Battery release button 4. Battery 5. Trigger assembly latch 6. Trigger connector pin 7. Speaker Single Trigger 8. Reset button 9. LED Indicators... -
Page 3: Battery Replacement
Single Trigger Parts Battery Replacement Install Battery 1. Align the connector on the PM5 with the connector on the battery 2. Slide and press the battery into the battery slot so that the battery is firmly engaged Remove Battery 1. USB type C Connector 2. - Page 4 Assemble Single Trigger PM5 with trigger can be worn on the index finger like a ring and is designed for ambidextrous use. Determine which hand do you wear PM5, and assemble trigger with right orientation. 1. Align the trigger so that the trigger scan button is positioned next to the thumb 2.
- Page 5 Charging via Power Adapter Charging via Cradle (4SC, 8SBC) You can charge the PM5 and the battery with charging cradles, 4SC and 8SBC (Sold separately). Insert PM5 into cradle. Single trigger must be assembled to use 4SC. 8SBC Detach battery from 1.
- Page 6 Install battery and press and release scan button on single trigger. 2. Wear PM5 with trigger on the index finger as the Warmboot scan button facing the thumb To reboot the PM5, press reset button for 3 seconds.
-
Page 7: Barcode Reading
1. Log in to Service Portal and go to the Download board. 2. Find a post about PM5 resources or Ring Control application. 3. Download and install Ring Control (Lite). • Ring Control - Only compatible with Point Mobile devices •... -
Page 8: Bluetooth Connection
There are two ways for connection between ring scanner and host device, Scan-to-Pair and Tap-to-Pair. Choose more comfortable method. Scan-to-Pair Tap-to-Pair Tap the PM5’s NFC tagging area to the NFC antenna on the host device. Above figure indicates how to Tap-to- Scan the barcode provided by Ring Control (Lite) to Pair between PM85 and PM5. -
Page 9: Status Indication
Status Indication Check PM5’s status with beep sound and LED as below. Category Description LED Sequence Beep Sequence Short low Green → Short medium PM5 is powered on (Until the beep sequence ends) → Short high Booting PM5 is booting as warmboot... - Page 10 Status Indication (Continued) Check PM5’s status with beep sound and LED as below. Category Description LED Sequence Beep Sequence Firmware Update Updating firmware Blue blinking None Decoding success Green flash Short low Decoding success 3x Short low Scanning and Bluetooth is not connected...
- Page 11 Regulatory For European Community Users We have included this bulletin to comply with Directive 2012/19/EU of the EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on Waste Electrical and Electronic Equipment (WEEE). This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.
