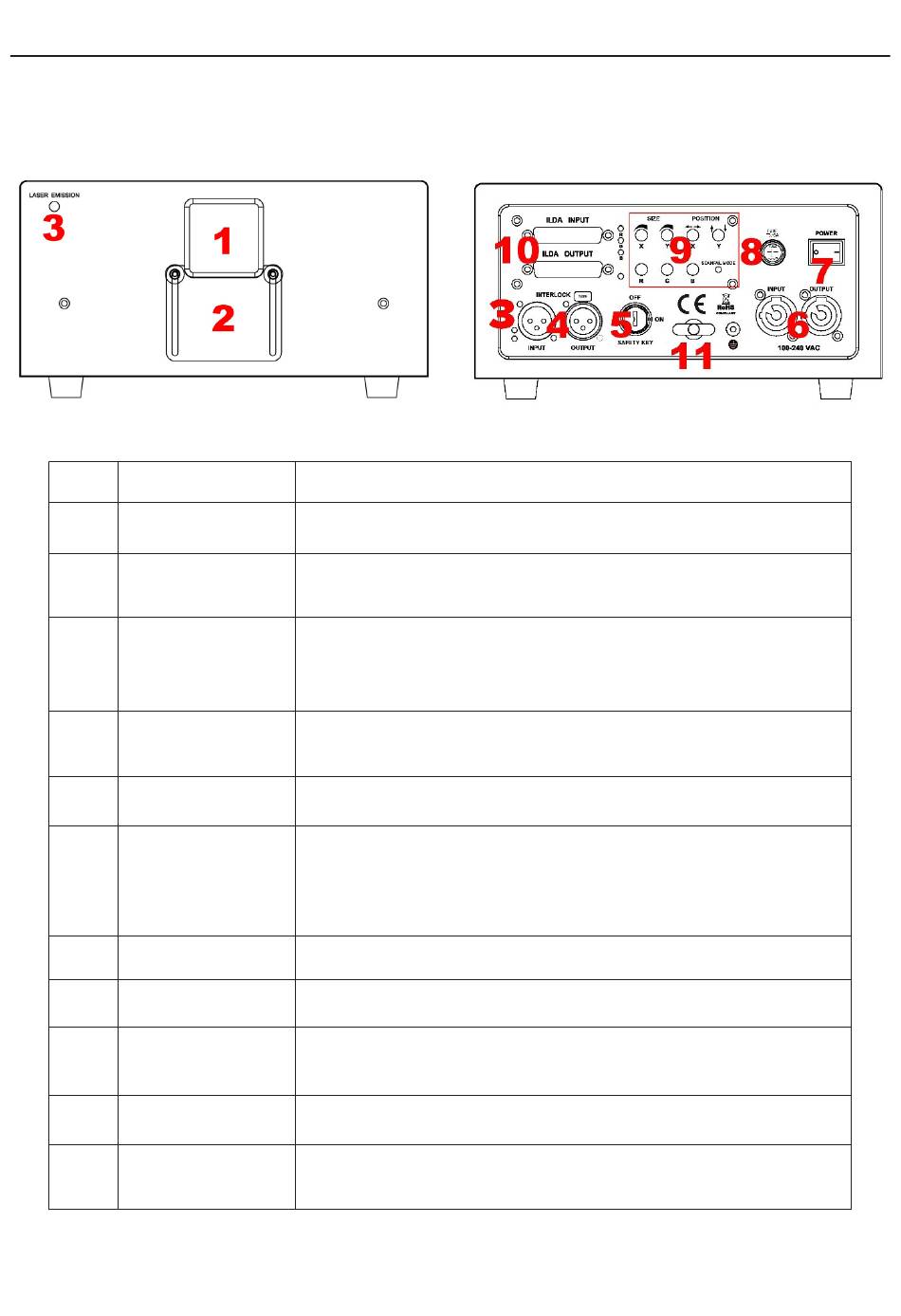

Front & Rear panel view (Raw 10)
NO. Name
1. Laser Aperture
Aperture masking
2.
plate
3. Laser emission
4. 3-Pin Interlock
5. Key switch
6. Power in & out
7. Power ON/OFF
8. Fuse
9. Function knob
DB25 IN & OUT
10.
11. Safety eyelet
Laser output, do not look directly into this aperture.
Can be moved up and down when two locking bolts are loosened.
When this indicator is lit up the laser system is ready to emit the
laser radiation as soon as it receives instructions from control
software.
Laser output is available only when the interlock is connected.
It could be used to connect a laser emergency switch.
Turn the key switch ON to allow laser output.
AC100-240V power input and output sockets. With output
feature you can connect the device to one another using the
input and output sockets. They must be the same fixtures.DO
NOT mix fixtures.
Power on/off
Current rating 2A, slow acting type.
For X Y moving, rotation Y, invert & size; R, G, B brightness
adjustment.
DB25 interface in and out for ILDA mode
Use this together with appropriate safety wire to secure the
system against unexpected fall.
26
Raw series Operational Manual (Revision 2020-7)
