Lumena Boleda CONUS Instructions

PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION / MAINTENANCE
•
If a fitting is found to be damaged, cease use immediately.
•
This is a Class 1 product and must be earthed.
•
This unit must be fitted by a competent and qualified electrician.
•
Install in accordance with IEE wiring regulations and current Building Regulations.
•
To prevent electrocution, switch off mains supply before installing or maintaining this
fitting. Ensure other persons cannot restore the electrical supply without your knowledge.
•
This light fitting should be connected to a circuit with a 30Ma RCD fitted. Maximum 12-15
fittings on each circuit recommended.
•
If replacing an existing fitting, make a careful note of the connections.
•
All connections should be made as watertight as possible to avoid electrical shortage.
•
When changing the colour temperature or other components, always switch off at the
mains & allow to cool before removing the head.
•
The unit may get warm whilst on for a period of time.
Voltage: 220 – 240V 50Hz
Wattage: 20W
LED: Seoul 2835 0.2W
Colour Temperature: 3000K, 4200K, 6500K (3-in-1 switch)
Lumens: 1600 lm
CRI: 80
IK Rating: IK08
IP Rating: IP65
Cable: H05RN-F 3x 1.0mm² (internal head to base)
Connection Housing: IP68 in-line connector M20x1.5mm, 0.5mm–4mm (at base)
Product Height: 1.4m (1.0m above ground + 0.4m below ground) (approx.)
Bollard Finish: Black (RAL 9005 fine textured/sand grain)
Head Style: Flat
Materials: Aluminium (<5mm) / Polycarbonate (stainless steel screws)
Protection: Short circuit / overload / no load / Insulation voltage: I/P to O/P, 3KVac/1min / Insulation Resistance:
>100Mohm @ 500VDC
Mount: Professional Root Mount System with Anchor Bar
Sensor: Photocell (Dusk to Dawn) – optional (this is factory pre-set and cannot be changed)
INCLUDED: Bollard (incorporated root mount tube), 1 x Anchor Bar & 2 x Nuts, M20 Cable Gland, Allen Key, Photocell (optional).

CLEANING:

Occasional cleaning and care is recommended for this product. Please refer to our website for the best way to clean different materials.
IMPORTANT: Condensation can occur due to the warmth inside the fitting produced by the LEDs and the cold air outside. If this is noticed,
on a dry day, turn off the power supply, safely remove the head, and wipe dry with a soft cloth.

RETURNS:

rd
If purchased from a 3 party, please contact your supplier. If purchased direct, contact us by phone or email:
Lumena Lights Ltd, Centre 33 Long March, Daventry, NN11 4NR
Our full returns policy is available on our website.
Waste Electrical Products should not be disposed of with household waste. Please check with your local authority or contact us
for more information. Please recycle packaging whenever possible.
Producer Registration Numbers: WEE/KC3440XY

COLOUR SWITCH:

The Boleda Range have a LED colour switch located on the underside of the head. This can be accessed by
removing the head via the 3 x socket / grub screws with the supplied allen key. Follow the switch combination
on the label to select the desired colour temperature (3000K / 4200K / 6500K).
Full product range & more information: www.lumenalights.com

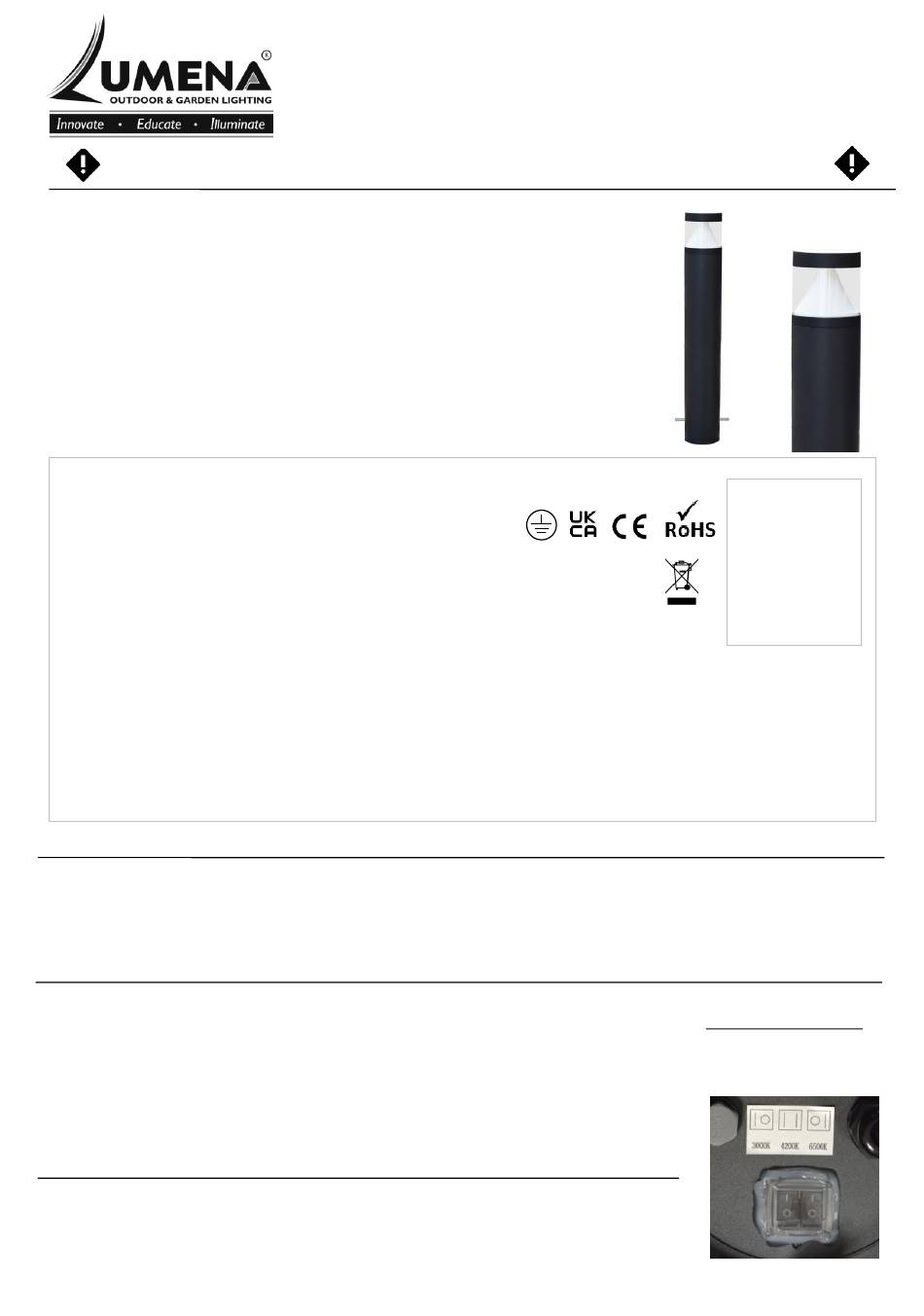

Boleda CONUS Bollard Light (Root Mount)

WARNINGS

Tel: +44 1327 871161
INSTRUCTIONS
All Variations – Standard & Photocell
✔✔✔✔✔
5 YEAR
GUARANTEE
see website for
more details
Reduced warranty for
specific components
Email: sales@lumenalights.com
