Lumena PROSOLAR Alerta ALE2PIR-D User Manual

PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION / MAINTENANCE
SPECIFICATIONS
Wattage: 22.3W
LEDs: 416* 0.2W LED Chips SMD2835 (In-Built)
Colour: 6000-6500K (Daylight White)
Lumen Output of LEDs: 2000lm (full brightness) 150lm (low brightness)
LED Life Expectancy: up to 50,000 hours
Sensor: PIR Motion Sensor 120˚ Angle ≤8m Detection Range (<180 triggers/night)
Battery Type: 2* 1.2AH (2.4AH) 3.7V Lithium Battery
Battery Charge Time: 8-10 hours
Discharge Time: 8-10hours
Solar Panel: 5.5V 1.3W Polycrystalline Silicon
IP Rating: IP64
Materials: ABS + Polycarbonate
Weight: 320g (approx.)
Working Temperature: -20˚C ~ 60˚C
Mounting: Dual Hole Surface Mount
Recommended Install Height: 1.8m - 2.5m
Functions: MODE 1: Dusk to Dawn Constant On (low level 150lm) / MODE 2: PIR Mode (OFF-2000lm when triggered)
Included: 1 x Light, Wall Mounting Screw Pack, Mounting Template
Features: On/Off Push Button, Shockproof, Coastal Friendly, Angled Solar Panel, <270˚ Wide-beam Illumination (Tri-
directional LED Design)
•
If a any component is found to be damaged, cease use immediately.
•
The unit may get warm whilst on for a period of time.
•
Always take care when installing your solar light, ensuring it is not a hazard, particularly at head height.
•
Fitting must be mounted and used in accordance with instructions.
•
This Solar Light will not charge correctly if the panel is behind glass or artificial light is used.
•
Due to temperature difference in and outside the fitting, condensation may be present internally but will not affect use.
CLEANING & MAINTENANCE:
Occasional cleaning and care are recommended for this product. Wipe with a soft, slightly damp cloth to remove any surface
dirt. To maintain efficiency, specifically clean the solar panel, LED Lens and PIR on a regular basis. Also, keep the solar panel free
of debris and snow to prevent reduced battery life or malfunction. Do not use abrasive cleaners or a lot of water as this could
damage the fitting. Please refer to our website for more information on the best way to clean different materials.
RETURNS:
rd
If purchased from a 3
Lumena Lights Ltd, Centre 33 Long March, Daventry, NN11 4NR
Our full returns policy is available on our website.
DISPOSAL / RECYCLING: Waste Electrical Products & Batteries should not be disposed of with household waste. Please
check with your local authority or contact us for more information. Please recycle packaging.
Producer Registration Numbers: WEE/KC3440XY / BPRN0843
USER MANUAL
THANK YOU FOR YOUR PURCHASE
party, please contact your supplier. If purchased direct, contact us by phone or email:
Full product range & more information: www.lumenalights.com
97mm
60mm
WARNINGS
Tel: +44 1327 871161

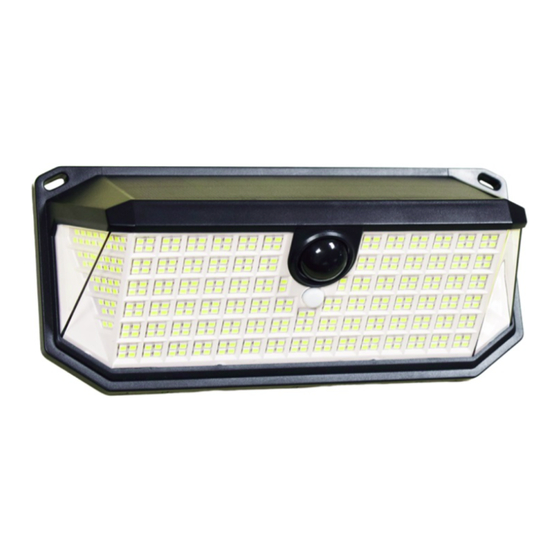

Alerta PIR Solar Light
Made in China to
Lumena Specification
2 YEAR
GUARANTEE
see website for
more details
220mm
Email: sales@lumenalights.com
ALE2PIR-D
✔✔
