Lumena Prosolar Alerta User Manual

PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION / MAINTENANCE

SPECIFICATIONS

Wattage: 8w
Lamp: In-built LEDs
Colour Temperature: 3000K (Warm) & 6500K (Daylight) - SWITCH
Lumen Output: 1000 lm
LED Life Expectancy: up to 50,000 hours
Max Illumination Time at Full Charge: 3-5 nights
Sensor: Microwave (Motion) Sensor + Light Sensor
Motion Sensor Detection Range: 8-10m
Motion Sensor Delay Time: 20-30 seconds
Light Sensor Delay Time: Up to 30 seconds
Battery Type: Lithium Ion 18650 3000mAh – Lifespan up to 8 years
Battery Charge Time: 6-8 hours (full sunshine)
Solar Panel: 4W Polycrystalline (Taiwan Neo) – Lifespan up to 25 years
IP Rating: IP65
Materials: Aluminium Alloy & UV Protected Polycarbonate
Weight: 606g (approx.)
Working Temperature: -25˚C ~65˚C
Recommended Mounting Height: 2-3m
Mounting: 2 x Keyhole (Screws & Plugs included)
Functions: Dim light (70lm) – increases to full brightness (1000 lumens) when motion detected.
Returns to dim mode after 20-30 seconds of no movement.

WARNINGS

•
If a fitting is found to be damaged, cease use immediately.
•
The unit may get warm whilst on for a period of time.
•
Always take care when installing your solar light, especially when mounting it in high places.
•
Ensure the fitting is mounted out of range of head height to avoid injury.
•
Fitting must be mounted to a solid surface.
•
This Solar Light will not charge correctly if the panel is behind glass or artificial light is used.
CLEANING & MAINTENANCE:
Occasional cleaning and care are recommended for this product. Wipe with a soft, slightly damp cloth to remove any surface
dirt. To maintain efficiency, specifically clean the solar panel and polycarbonate lens on a regular basis. Also, keep the solar panel
free of debris and snow to prevent reduced battery life or malfunction. Do not use abrasive cleaners or a lot of water as this
could damage the fitting. Please refer to our website for more information on the best way to clean different materials.

RETURNS:

rd
If purchased from a 3 party, please contact your supplier. If purchased direct, contact us by phone or email:
Lumena Lights Ltd, Centre 33 Long March, Daventry, NN11 4NR
Our full returns policy is available on our website.
Waste Electrical Products should not be disposed of with household waste. Please check with your local authority or contact us
for more information. Please recycle packaging whenever possible.
THANK YOU FOR YOUR PURCHASE
Full product range & more information: www.lumenalights.com

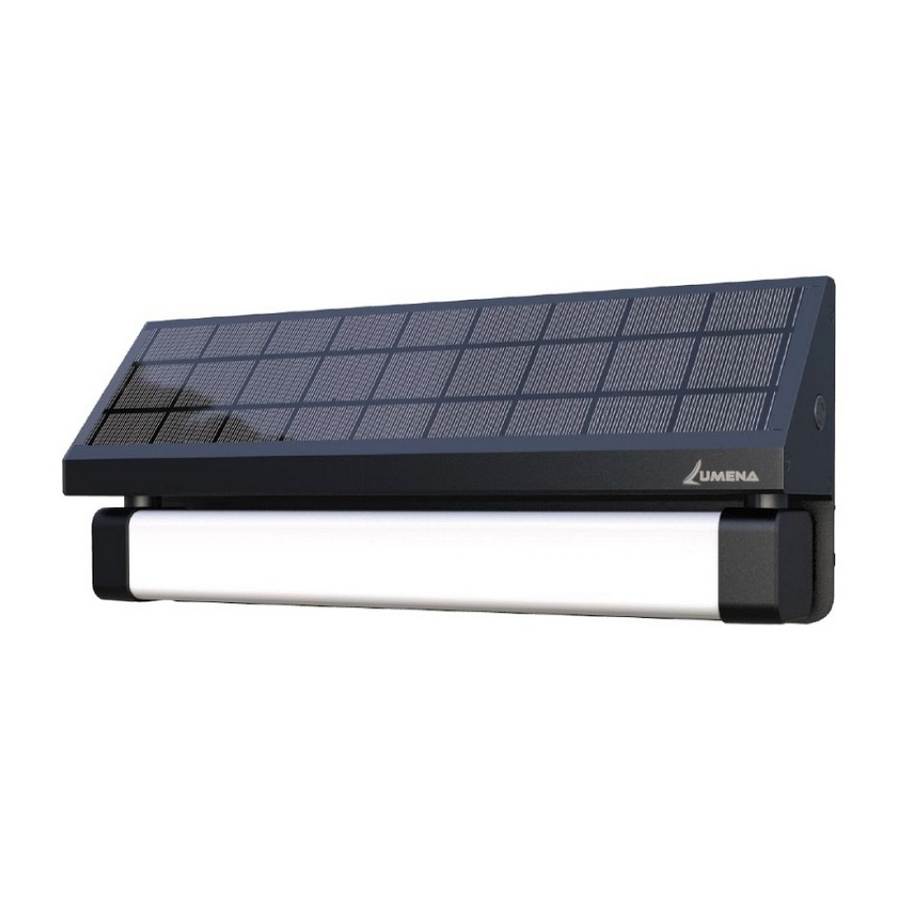

Alerta Motion Sensor Solar Wall Light
117 mm
55 mm
ISO9001:2015
Tel: +44 1327 871161
Producer Registration Numbers: WEE/KC3440XY / BPRN0843
USER MANUAL
300mm
✔✔✔
3 YEAR
GUARANTEE
see website for
more details
Email: sales@lumenalights.com
