Lumena Charleston Brick Light Instructions

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE COMMENCING ANY WORK
•
If a fitting is found to be damaged, cease use immediately.
•
This is a Class 1 product and must be earthed
•
Install in accordance with the IEE Wiring Regulations and Building Regulations. If in doubt, consult a qualified electrician.
•
To prevent electrocution, switch off mains supply before installing or maintaining this fitting. Ensure other persons
cannot restore the electrical supply without your knowledge.
•
This light fitting should be connected to a circuit with a 30Ma RCD fitted. Maximum 12-15 fittings on each circuit
recommended.
•
If replacing an existing fitting, make a careful note of the connections.
•
All connections should be made as watertight as possible to avoid electrical shortage.
•
When changing the bulb, always switch off at the mains & allow to cool before handling.
•
Always use the correct type & wattage bulb. Never exceed the wattage stated.
•
The unit may get warm whilst on for a period of time.
Voltage: 220 - 240v 50Hz
Max. Wattage: 50w
Bulb Holder: G9 x 2 (lamp sold separately)
IP Rating: IP65
Cable Inlets: 5 positions (removable)
NOTES
Cable Inlets can be replaced with M20 Cable Glands for extra IP Rating when
connecting mains cable

CLEANING:

Occasional cleaning and care is recommended for this product. Please refer to our website for the best way to clean different
materials.

RETURNS:

If purchased from a 3 rd
Lumena Lights Ltd, Centre 33 Long March, Daventry, NN11 4NR
Our full returns policy is available on our website.
Waste Electrical Products should not be disposed of with household waste. Please check with your local authority or contact us
for more information. Please recycle packaging whenever possible.

LAMP INSTALLATION / REPLACEMENT:

•
Remove the front plate by unscrewing and removing the 2 x brass screws.
•
Insert 2 x G9 lamps (push action).
•
Replace the front plate and secure in place with the 2 x brass screws removed, ensuring the foam seal is in place behind
the face plate.
IMPORTANT: Condensation may occur due to the warmth inside the fitting produced by the lamp and the cold air outside. If
this is noticed, on a dry day, turn off the power supply, safely remove the front plate and wipe dry with a soft cloth. A silica gel
pouch can be left inside the fitting to soak up any excess moisture if required.
INSTRUCTIONS ACCURATE AT TIME OF PRINTING. CHECK FOR UPDATES ON OUR WEBSITE.
party, please contact your supplier. If purchased direct, contact us by phone or email:
Full product range & more information: www.lumenalights.com

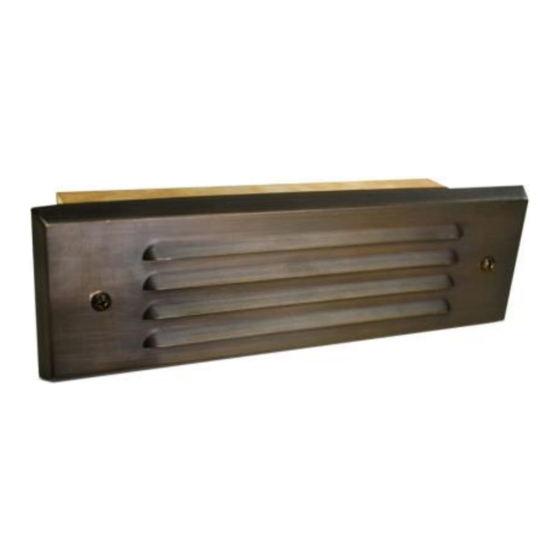

Charleston Brick Light – 240v

WARNINGS

✔✔
2 YEAR
GUARANTEE
see website for
more details
Tel: +44 1327 871161
Producer Registration Number: WEE/KC3440XY
INSTRUCTIONS
Frosted or Slatted
Email: sales@lumenalights.com
