PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION / MAINTENANCE
SPECIFICATIONS
Wattage: 40w
Lamp: In-built Everlight LED x 90 (SMD 2835S)
Colour Temperature: 6000K (Daylight White) / 3000K (Warm White)
Lumen Output: 4800 lm
Beam Angle: 140 x 70 degrees
LED Life Expectancy: up to 50,000 hours
Sensor: PIR (Motion Sensor) + Light Sensor
PIR Detection: Up to 12m / 120 deg. beam angle
PIR Sensor Delay Time: up to 20 seconds
Battery Type: LiFePO4 32700 9.6v 12000mAh (Replaceable)
Battery Lifespan: 8 years+ (2000+ 1-2 week cycles)
Battery Charge Time: 8 hours full sunshine (full capacity)
Max Illumination Time at Full Charge: up to 6 nights
Solar Panel: 21W 13.5v Mono-crystalline Silicon (20yrs+ lifespan)
IP Rating: IP65
Materials: Aluminium, ABS, Tempered Glass
Weight: 5.1Kg (approx.)
Mounting: 60mm Lamp Post / Wall Bracket / 50mm Horizontal Pole Clamp
Install Height: 3-6m recommended
Functions: Constant On OR PIR mode (Remote Control)
Remote Control Range: < 12m
Working Temperature: -20C – 60C
Included: Solar Light, Standard Bracket, 2 x U Brackets, Remote Control, Allen Key
•
If a fitting is found to be damaged, cease use immediately.
•
The unit may get warm whilst on for a period of time.
•
Always take care when installing your solar light, especially when mounting it in high places (2 person install).
•
Ensure the fitting is mounted out of range of head height to avoid injury.
•
Fitting must be mounted to a solid surface / lamp post.
•
This Solar Light will not charge correctly if the panel is behind glass or artificial light is used.
•
For replacement battery, contact the manufacturer.
CLEANING & MAINTENANCE:
Occasional cleaning and care are recommended for this product. Wipe with a soft, slightly damp cloth to remove any surface
dirt. To maintain efficiency, specifically clean the solar panel, LEDs and PIR on a regular basis. Also, keep the solar panel free of
debris and snow to prevent reduced battery life or malfunction. Do not use abrasive cleaners or a lot of water as this could
damage the fitting. Please refer to our website for more information on the best way to clean different materials.
DISPOSAL: Waste Electrical Products & Batteries should not be disposed of with household waste. Please check with your
local authority or contact us for more information. Please recycle packaging whenever possible.
RETURNS:
If purchased from a 3
rd
party, please contact your supplier. If purchased direct, contact us by phone or email:
Lumena Lights Ltd, Centre 33 Long March, Daventry, NN11 4NR
Our full returns policy is available on our website.
THANK YOU FOR YOUR PURCHASE
Full product range & more information: www.lumenalights.com

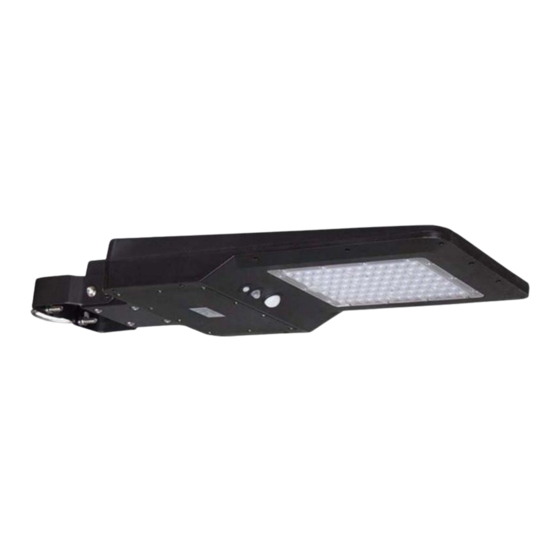

Hiway MAX 40W PIR Solar Street Light
7.5cm
WARNINGS
Producer Registration Numbers: WEE/KC3440XY / BPRN0843
Tel: +44 1327 871161
USER MANUAL
62cm
29cm
71cm
✔✔✔✔✔
5 YEAR
GUARANTEE
see website for
more details
Email: sales@lumenalights.com
1.6cm
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for Lumena VIAMAX Hiway MAX 40W PIR Solar Street Light
Summary of Contents for Lumena VIAMAX Hiway MAX 40W PIR Solar Street Light
- Page 1 RETURNS: If purchased from a 3 party, please contact your supplier. If purchased direct, contact us by phone or email: Lumena Lights Ltd, Centre 33 Long March, Daventry, NN11 4NR Tel: +44 1327 871161 Email: sales@lumenalights.com Our full returns policy is available on our website.
- Page 2 INSTALLATION: Location - It is important that the installation location is carefully considered, avoiding shady areas. The best solar panel position is south facing, however the light can work facing in other directions when in full sunshine. The PIR must face the direction in which the motion is to be detected.
- Page 3 INSTALLATION (continued): WALL MOUNTING Required: 2 x M10 * 60mm Expansion Screws 1. Ensure the 4 x bottom screws on the fitting are tightened with the allen key provided. 2. Drill the 2 x 14mm holes at a depth of 60mm (104mm centre to centre).
- Page 4 MODES / SETTINGS: The Hiway MAX is an auto-adjust, multifunction solar light. All modes will only function during darkness. When switched on during daytime, the LEDs will illuminate initially and then turn off after approximately 4 seconds. Lamp automatically flashes once after every time the Main Button / Remote Control Buttons are pressed to confirm successful programming.
