Quick start proceDure

Demonstration circuit 1886A is easy to set up to evalu-
ate the performance of the LTC4232. Refer to Figure 1
for proper measurement equipment setup and follow the
procedure below.
ADJ

POWER SUPPLY

+
+
–
–
2
Demonstration Circuit 1886A has two user configurable
jumper options:
• JP1 TIMER DURATION: Set to 2ms for the internal 2ms
• JP2 AUTORETRY: Set to ON for auto-retry or OFF for

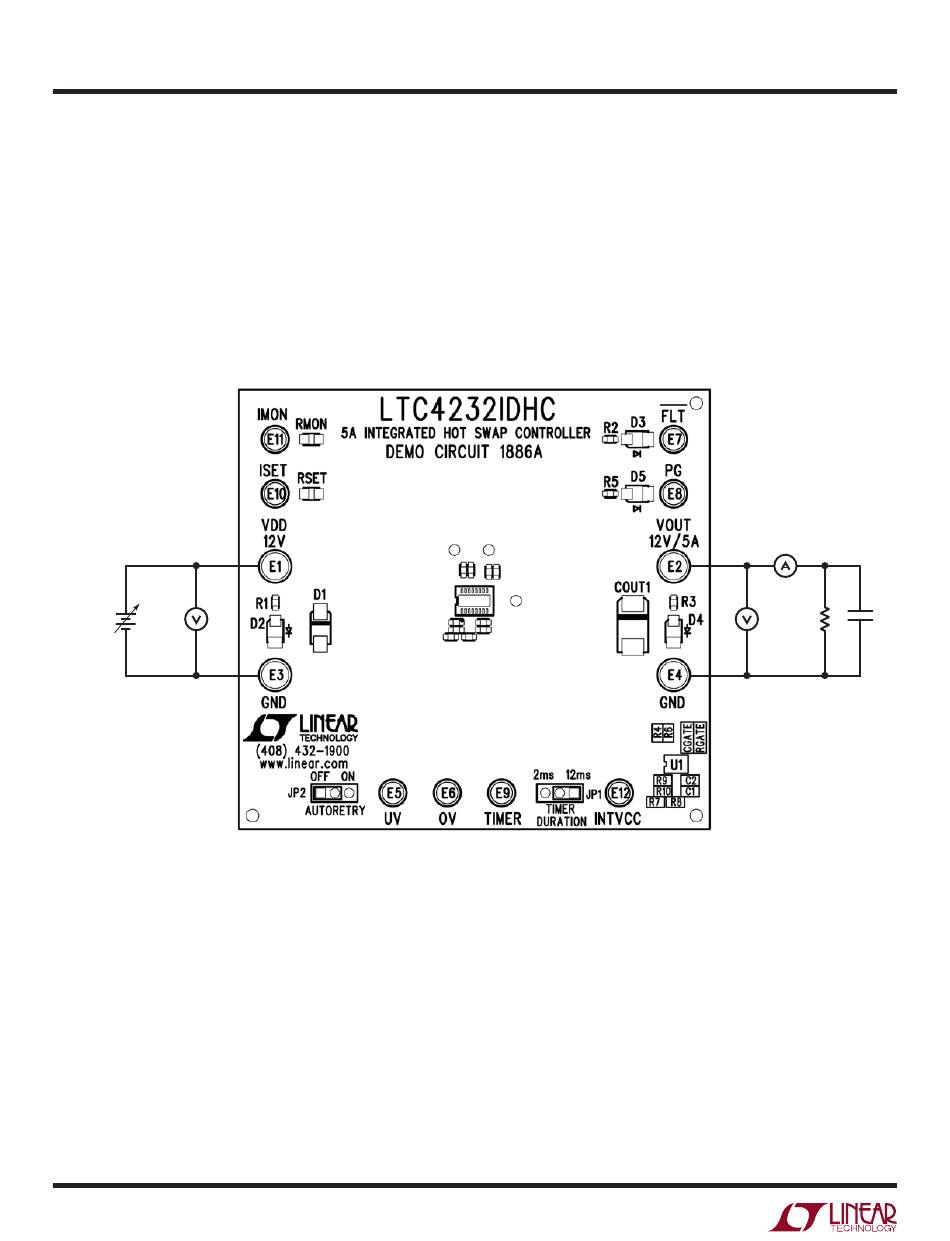

Figure 1. Proper Measurement Equipment Setup
timer or 12ms determined by C1. C1 may be replaced
for other timer durations. (Default position: 12ms)
latchoff on overcurrent faults. (Default position: OFF)
+
–
+
–

TEST LOADS
