Summary of Contents for AERMEC REMOTE HANDSET

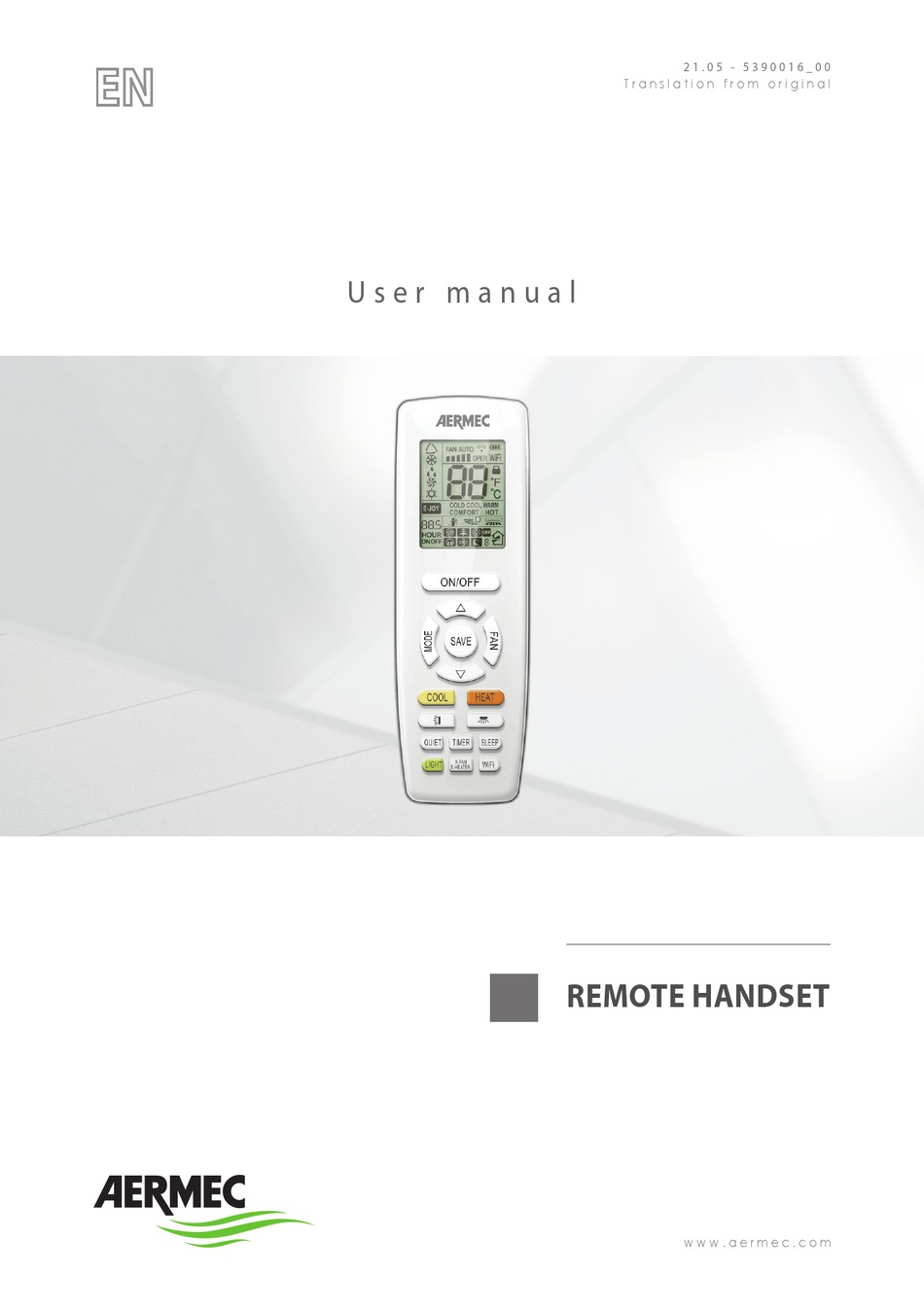

- Page 1 T r a n s l a t i o n f r o m o r i g i n a l U s e r m a n u a l REMOTE HANDSET w w w . a e r m e c . c o m...
- Page 3 Dear customer, Thank you for choosing an AERMEC product. It is the fruit of many years of experience and special design studies and has been made of the highest grade materials and with cutting edge technology. In addition, all our products bear the EC mark indicating that they meet the requirements of the European Machine Directive regarding safety.
-
Page 5: Table Of Contents
INDEX REMOTE CONTROL ..........................................6 FUNCTIONS AVAILABLE THROUGH THE ..................................8 REMOTE CONTROL ..........................................8 SWITCHING THE UNIT ON OR OFF ....................................8 DEFINING THE OPERATING SET-POINT..................................8 SELECTING AN OPERATING MODE ....................................9 SETTING THE VENTILATION SPEED ....................................10 SETTING THE VERTICAL MOTORISED DELIVERY FIN (SWING UP&DOWN) ....................11 SETTING THE HORIZONTAL MOTORISED DELIVERY FIN (SWING LEFT&RIGHT) ..................11 SETTING OR CANCELLING A PROGRAMMED SWITCH-ON (TIMER ON) ......................12 SETTING OR CANCELLING A PROGRAMMED SWITCH-OFF (TIMER OFF) .....................12... -
Page 6: Remote Control

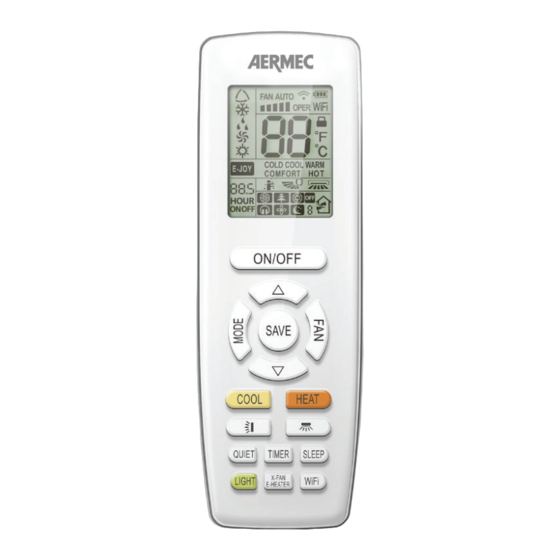

REMOTE CONTROL • Some of the buttons of the remote control are not used for this air conditioner, and are therefore not described in these instructions. The pressing of these buttons will not affect the operation of the air conditioner. •... - Page 7 Icons available on the remote control display Index Function represented by the icon: Indicates that AUTOMATIC mode is active Indicates that COOLING mode is active Indicates that DEHUMIDIFICATION mode is active Indicates that VENTILATION mode is active Indicates that HEATING mode is active Indicates the current ventilation speed Indicates that the setting has been transmitted to the receiver on the indoor...
-
Page 8: Functions Available Through The
FUNCTIONS AVAILABLE THROUGH THE REMOTE CONTROL SWITCHING THE UNIT ON OR OFF Switching on By pressing the ON/OFF button it is possible to switch the unit on or off. When off, some information is still displayed on the remote control: the operating set- point of the last operating mode used, and switch on timers programmed (ON) and any icons tied to the function active during the last switch on of the unit... -
Page 9: Selecting An Operating Mode
SELECTING AN OPERATING MODE Selecting an operating mode If the unit is on, press the MODE button to pass from one operating mode to the next, in the sequence shown below. COOL, HEAT and FAN modes can also be selected via the dedicated buttons (refer to the specific paragraphs in this manual). -
Page 10: Setting The Ventilation Speed
SETTING THE VENTILATION SPEED Press the FAN button to modify the fan speed. In DRY mode (dehumidification), the fan will automatically change to the minimum speed. Setting the ventilation speed AUTO ON/OFF AUTO Automatic SAVE Minimum speed Medium speed COOL HEAT High speed SLEEP... -
Page 11: Setting The Vertical Motorised Delivery Fin (Swing Up&Down)
SETTING THE VERTICAL MOTORISED DELIVERY FIN (SWING UP&DOWN) If the unit is on, press the button to activate the swing function of the motorised delivery fin. This fin varies the direction of the flow of air into the ambient, Setting the vertical motorised on the basis of the selected position. -
Page 12: Setting Or Cancelling A Programmed Switch-On (Timer On)
SETTING OR CANCELLING A PROGRAMMED SWITCH-ON (TIMER ON) The unit has a timer for programming unit switch-on at a specified time. Setting a programmed If the TIMER button is pressed while the unit is switch-on switched off, you will access timer programming mode TIMER ON (the HOUR and ON icons underneath the time will start flashing). -
Page 13: Activating / Deactivating The Prolonged Ventilation (X-Fan) Function
ACTIVATING / DEACTIVATING THE PROLONGED VENTILATION (X-FAN) FUNCTION During the operation in cooling or dehumidification mode the condensate caused by the humidity in the air is formed on the heat exchanger within the unit. Setting the extended With the X-FAN function, the indoor unit fan carries ventilation function on working for a few minutes after unit switch-off to completely dry the coil and avoid the formation and... -
Page 14: Activating / Deactivating The Night-Time Comfort Function
ACTIVATING / DEACTIVATING THE NIGHT-TIME COMFORT FUNCTION The night-time comfort function controls the air conditioner in an optimal way during the night. The following logic is applied: Setting the night-time • In cooling or dehumidification: the temperature comfort function set-point is gradually increased (no more than +3°C) to guarantee maximum comfort combined with energy savings. -
Page 15: Activating Or Deactivating The Wifi Function (Only With Wifi Device Installed)
ACTIVATING OR DEACTIVATING THE WIFI FUNCTION (ONLY WITH WIFI DEVICE INSTALLED) With the unit switched on, press the WiFi button to activate the WIFI device in the indoor unit. symbol on the remote control display Activating or deactivating the indicates that the device is active. WIFI function To deactivate the WIFI device, press the WiFi button for at least 5 seconds;... -
Page 16: Setting The Unit Of Measurement
SETTING THE UNIT OF MEASUREMENT The unit display and the remote control display can show the set temperature value in °C or °F. To change the measurement unit, press the and MODE buttons Setting the unit of simultaneously while the unit is switched off. measurement The temperature value on the two displays will be immediately converted. -
Page 17: Cooling Mode
COOLING MODE Press COOL to activate cooling mode directly. Setting cooling mode ON/OFF SAVE COOL HEAT QUIET TIMER SLEEP X-FAN LIGHT WiFi E-HEATER HEATING MODE Press HEAT to activate heating mode directly. Setting heating mode ON/OFF SAVE COOL HEAT QUIET TIMER SLEEP X-FAN... -
Page 18: Replacing The Remote Control Batteries
WARNING the battery charge level is shown on the remote control. When the icon flashes, replace the batteries as otherwise the remote control cannot WIFI work properly. INTELLIGENT NOTE • Remove the batteries if the remote control is not used for a long time. •... - Page 20 DOWNLOAD THE LATEST VERSION: DOWNLOAD THE LATEST VERSION: DOWNLOAD THE LATEST VERSION: TÉLÉCHARGER LA DERNIÈRE VERSION: TÉLÉCHARGER LA DERNIÈRE VERSION: TÉLÉCHARGER LA DERNIÈRE VERSION: http://www.aermec.com/qrcode.asp?q=16629 http://www.aermec.com/qrcode.asp?q=16629 http://www.aermec.com/qrcode.asp?q=16630 http://www.aermec.com/qrcode.asp?q=16630 http://www.aermec.com/qrcode.asp?q=16631 http://www.aermec.com/qrcode.asp?q=16631 A E R M E C S . p . A .
