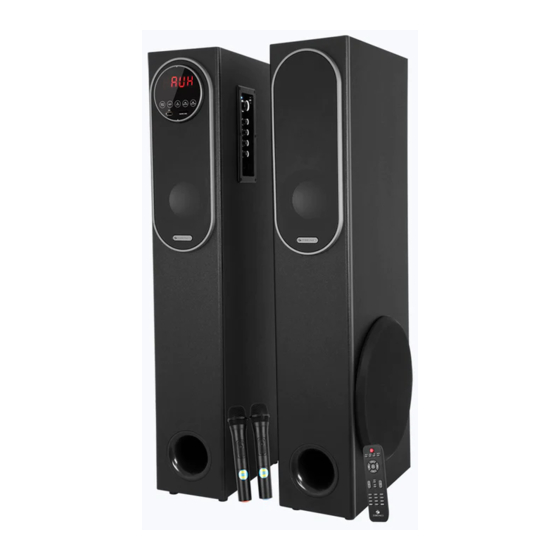

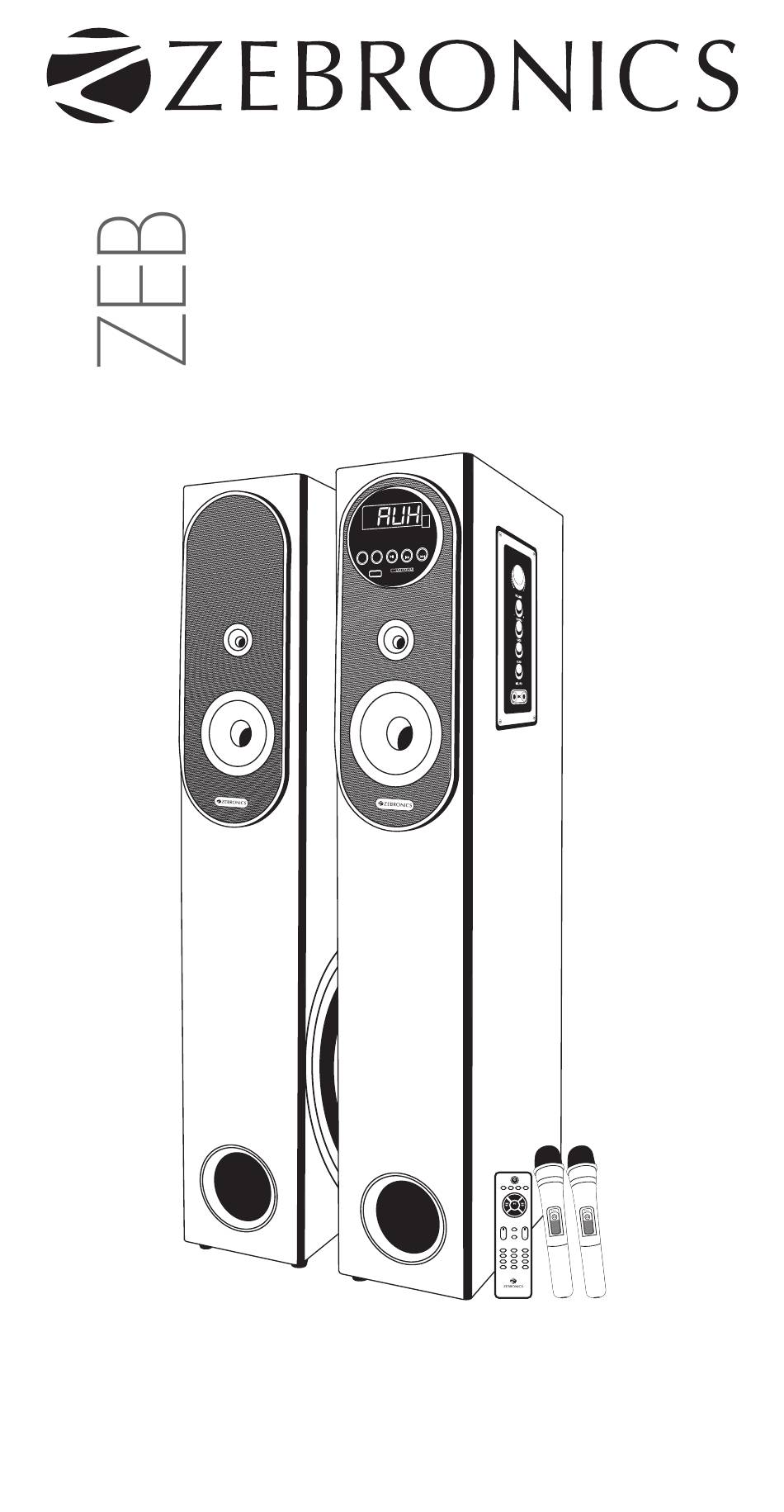

- Page 1 Tower Speaker BTM9801RUCF VOL+ VOL- INPUT MUTE ST.BY SD/M MC CARD INPUT SAVE MUTE VOL+ AUTO VOL- DISP+ TUNE DISP- REPEAT RESET User Manual www.zebronics.com...
- Page 2 Features: 1. With built-in amplifier design, the speaker reflect the purity of Sound and creates powerful sound effect. 2. Ideal for PC and audio sources such as CD, DVD, Bluray, TV, etc. 3. Magnetically shielded for use with P C m o n i t o r a n d T V w i t h o u t a n y interference.
- Page 3 Utility Description: 1. Connect the one end of the right tower cable to the right output port on the back panel of the left tower. Also place the cable extended tower to the right side and the other to the left side while listening. 2.
- Page 4 How to use the BT: 1. Select the audio input to BT status 2. Search BT device with name "ZEB-BTM9801RUCF” 3. Connect the BT 4. If your BT device below 2.0 version, input password "0000" when connecting.
- Page 5 Front Panel Description: INPUT MUTE AUTO VOL-/CH- VOL+/CH+ ST.BY SD/MMC CARD VOL- / CH- | 9 Moves to the previous track for play if in USB or SD or BT Mode moves to the previous channel if in the FM Mode / Decreases the volume level if touch and hold continuously.
- Page 6 Remote Control Description: Power switch button(standby) switch On or off for waiting or On condition. INPUT Select the Source Input SAVE Save FM Channel Equalizer preset MUTE Mute or Unmute VOL-/+ Master Volume 4 ;/ AUTO Play & Pause Track. Press & Hold for FM Scanning Previous track when USB/SD/BT Input...
- Page 7 Speakers Connectivity Diagram: COAXIAL INPUT HDMI INPUT VOL+ VOL- INPUT MUTE ST.BY SD/MMC CARD OPTICAL INPUT Note: Insert the plugs fully into the jacks. Loose connections may produce a humming sound or other noise interference. Important: Connect the speaker and all other external device and finally connect the AC power cord.
- Page 8 Side Panel & Microphone Description: VOLUME +/- Volume control TREBLE +/- Treble control BASS +/- Bass control ECHO +/- Microphone echo control MIC.VOL +/- MIC volume.
- Page 9 BT Mode with the LED Display. Switch ON BT on your phone or tablet and search for nearby BT Devices, search for the BT name “ZEB-BTM9801RUCF” and tap to connect it. FM Mode: Switch the speaker to FM Mode, Long...
- Page 10 end of the cable to the speaker and the other end to an audio source. The tracks from the audio source can be heard through the speaker. HDMI (ARC) Mode: This speaker supports HDMI(ARC) with Audio Return channel. If your TV is HDMI(ARC) compliant, you can hear the TV Audio through your speaker by using a Single HDMI cable, use a high speed HDMI cable, connect the one end...
- Page 11 other end to the optical digital input of your speaker. Switch the TV and speaker ON. Set the connected TV to “PCM stereo” or “Stereo 2.0”. Press the “INPUT/ST.BY“ button on the speaker or on remote control to switch the speaker to Optical Input mode.
- Page 12 Features: Ÿ 2.0 channel Tower speaker Ÿ Wireless BT/USB/SD/AUX/FM/Optical IN/ HDMI (ARC)/Coaxial IN Ÿ LED display Ÿ Touch Control Ÿ 2 x 25.4cm Subwoofer Ÿ 3 way speaker Ÿ Remote control Ÿ Karaoke Ÿ Dual wireless mics Ÿ Dual microphone input jacks Specification: Output power (RMS) : 120W (60W + 60W)
- Page 13 Max. supported USB/SD memory size : 32GB FM frequency scan range : 87.5 MHz - 108 MHZ BT name : ZEB-BTM9801RUCF BT version : 5.0 + EDR Product dimension : 162 x 340 x 936 mm (W x D x H) Net.
