Summary of Contents for Zebronics ZEB-CLAW 4

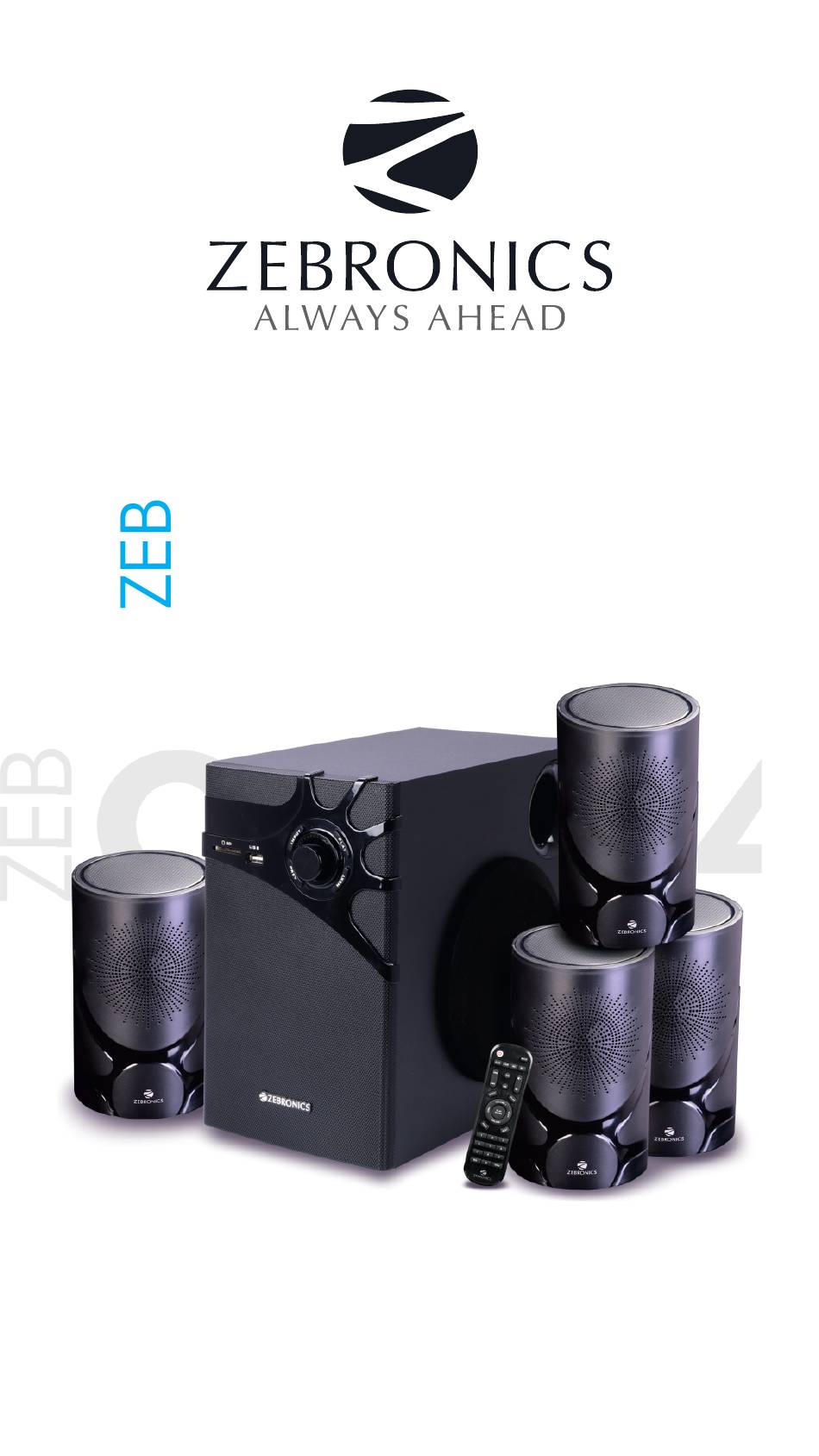

- Page 1 4 . 1 S p e a k e r CLAW 4 CLAW 4 User Manual www.zebronics.com...
- Page 2 T h e l i g h t n i n g fl a s h w i t h arrowhead symbol, within an exclamation triangle, is intended to alert the user to the presence o f u n i n s u l a t e d d a n g e ro u s voltage within the products e n c l o s u re t h a t m a y b e o f s u ffi...

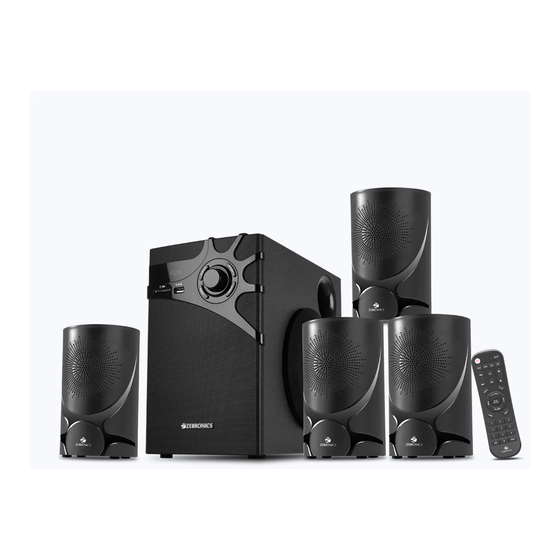

- Page 3 T h a n k y o u f o r p u r c h a s i n g t h e ZEB-CLAW 4 - 4.1 Speaker. Please read the user manual carefully before usage & save it for future reference.
- Page 4 : 2ch RCA Max. supported memory size (USB/SD) : 32GB FM frequency range : 87.5 MHz - 108 MHz BT Name : ZEB-CLAW 4 BT Version : v5.0 Product dimensions Subwoofer : 17.5 x 30 x 26.5 cm (W x D x H) Satellite : 10 x 16.5 cm...
-
Page 5: Front Panel Description
Front panel description 1. USB: USB Port for the pen drive 2. SD CARD: SD/MMC Card Slot 3. INPUT: Select the Input source (AUX, Bluetooth, USB, SD or FM) 4. PLAY: In USB/SD mode: Press to Play the track. Press again to Pause the playing track. - Page 6 pre-saved FM channel. In all modes: Press and hold to increase the volume. 7. PREV: In USB/SD mode: Press to go to previous track. In FM mode: Press to go to previous pre-saved FM channel. In all modes: Press and hold to decrease the volume.
-
Page 7: Control Panel Description
IEC 60065 : 2014 4 . 1 S p e a k e r CLAW 4 Input Voltage : AC 220 - 240V 50/60Hz R-41171719 Output Power (RMS) : 90W www.bis.gov.in www.zebronics.com FM-ANT INPUT WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN OUTPUT... -
Page 8: Remote Control
Remote control MUTE PLAY PAUSE 100+ INPUT : The input signal switching (AUX/Bluetooth/USB/SD/FM) PREV : Previous track in BT/ USB & SD Card modes, previous FM station in FM mode. PLAY/PAUSE : Play & pause in BT/USB & SD Card modes, Mute / Unmute in AUX &... - Page 9 BT Mode: Switch the speaker to BT mode, Scan for nearby BT devices in your device. Tap on “ZEB-CLAW 4“ to connect. USB / SD Mode: Insert the USB/SD flash drive to the speaker. The speaker will detect the USB/SD and the audio files from flash drive will be...
- Page 10 RCA to 3.5mm cable. Connect the one end of the cable to the speaker and the other end to an audio source. The tracks from the audio source can be heard through the speaker. ISO 9001:2015 Certified Company www.zebronics.com...
