Summary of Contents for Zebronics ZEB UDAAN 2

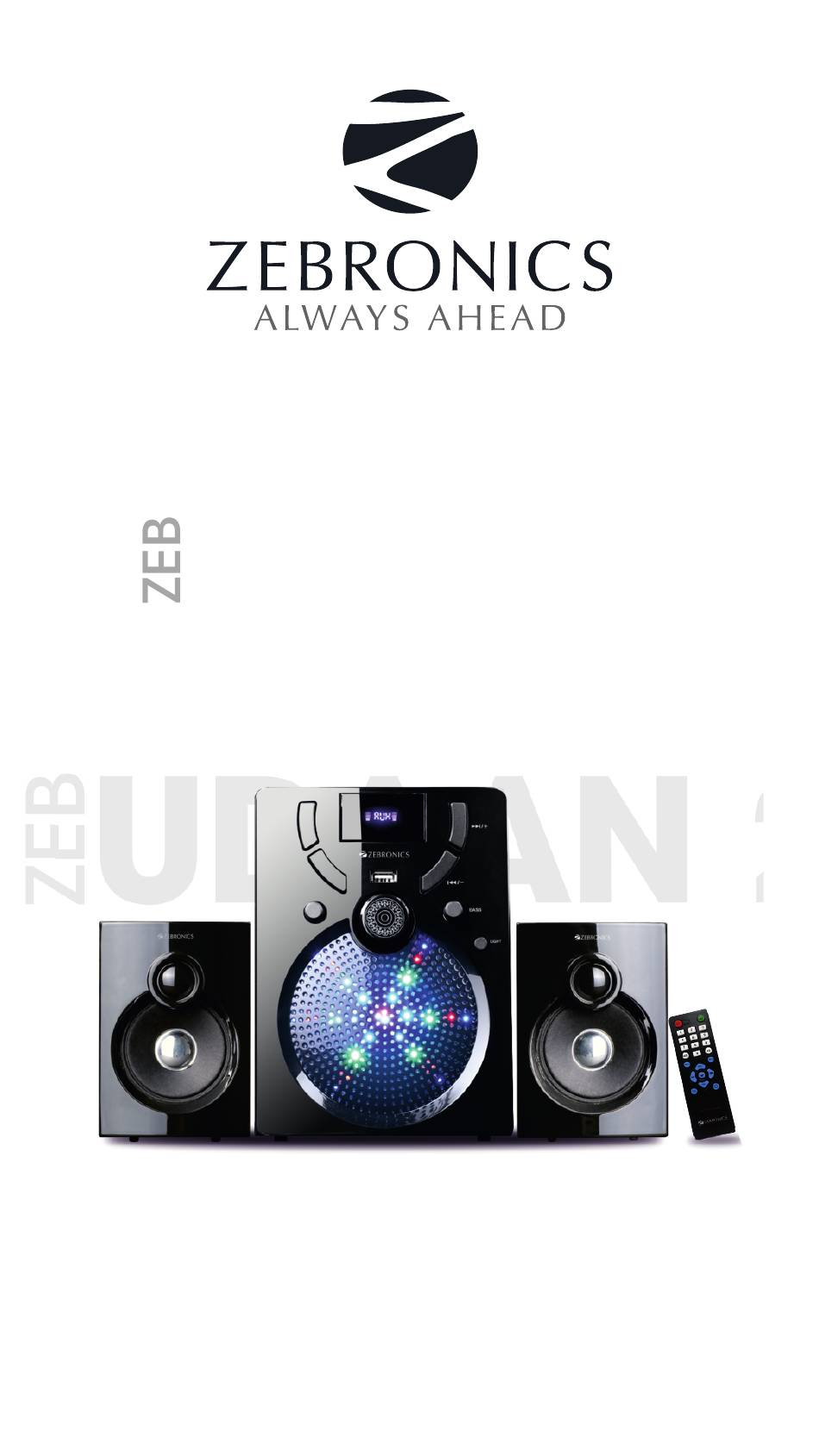

- Page 1 2 . 1 S p e a k e r UDAAN 2 UDAAN 2 User Manual www.zebronics.com...
- Page 2 File format support (USB) : MP3 Line input : 2ch RCA Max. supported USB memory size : 32GB FM frequency range : 87.5 MHz - 108 MHz BT name : ZEBRONICS BT Range : 10 Meters (without obstacles) BT version : 5.1...
- Page 3 Product dimension (W x D x H) Subwoofer : 150 x 275 x 210 mm Satellite : 96 x 95 x 135 mm Net. weight Subwoofer : 2.75 kg Satellites : 0.60 kg Total : 3.35 kg Description of the Subwoofer control panel 1.
-
Page 4: Speaker Output
UDAAN 2 Input Voltage : AC 220 - 240V 50/60Hz Output Power (RMS) : 40W R-81008958 www.bis.gov.in www.zebronics.com A: AUDIO INPUT (AUX) STEREO INPUT These jacks are used to receive the Stereo signal from a CD/VCD/DVD (2 CH) player. SPEAKER OUTPUT... - Page 5 Unit Operation 1. First plug the cable of the satellite into the output jack on the rear panel of the woofer, one end of the audio cord into the input jack on the rear panel, the other end into the output jack of the computer or other audio equipment, the power cord into the power supply jack, switch on the unit, LED on the...
- Page 6 5. When USB device is working, press the MODE button to cycle through the LINE IN, FM, USB, Bluetooth. 6. When USB device is working, press the PREV and NEXT button to choose the previous or the next track / channel, Press VOL- and VOL+ button to adust the volume.
- Page 7 Description of the Remote Control 1. MODE cycle selection Aux - FM - USB - BT 2. POWER standby (STANDBY) ON/OFF 3. NEXT: to select the next song in USB or next channel in radio station 4. PREV: to select the previous song in USB or previous channel in radio station 5.
- Page 8 MUTE: Mute Play/Pause: to play/pause in USB to search automatically in radio station, 20 channels can be saved up at most. EQ: Normal Pop - Rock - Jazz - Classic - Cou 10. It scans for all FM stations in Radio mode 11.
- Page 9 The lightning flash with arrow head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated " dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. T h e e x c l a m a t i o n p o i n t w i t h i n a n equilateral triangle is intended to alert the user to the presence of important operating and...
- Page 10 Only use attachments/accessories specified by the manufacturer. Unplug this speaker unit during lightning storm or when unused for long periods of time. ISO 9001:2015 Certified Company www.zebronics.com...
