General Information

Section 2: General Information

Generator Components and Control Locations

R
A
P
O
N

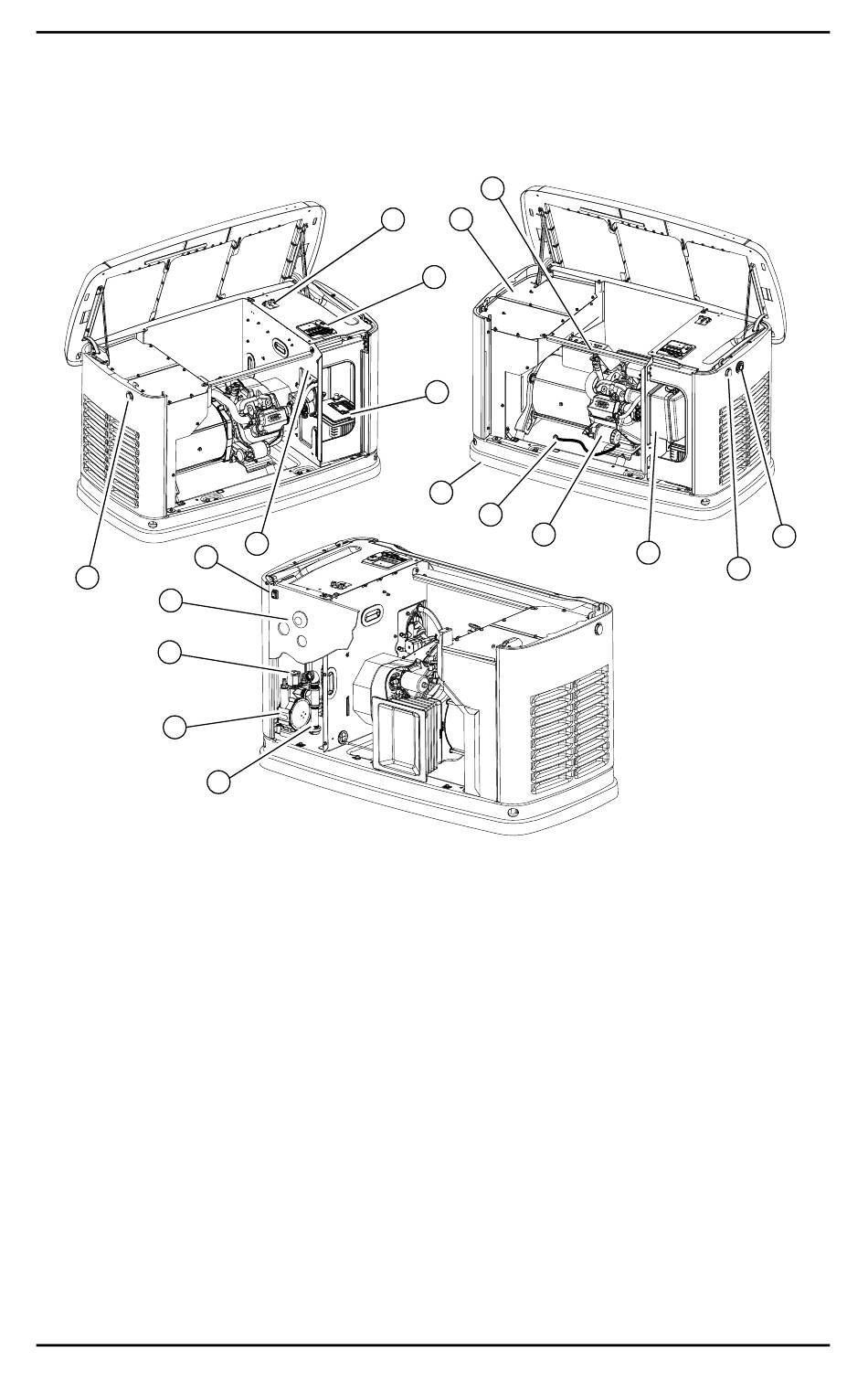

Figure 2-1. 10 kW—Components and Control Locations
A
Lock with cover
B
Main line circuit breaker
(generator disconnect)
C Control panel
D Battery compartment
(battery not supplied)
E
Exhaust enclosure
F
Oil fill cap/dipstick
5
Q
M
G Status LED indicators
H Airbox with air cleaner
J
Oil filter
K Oil drain hose
L
Composite base
M Sediment trap
F
B
E
C
D
L
K
J
Owner's Manual for 60 Hz Air-Cooled Generators
H
N Fuel regulator
O Fuel inlet
P
Wi-Fi module
Q Data decal location
R Auxiliary shutdown switch
G
A
001818
