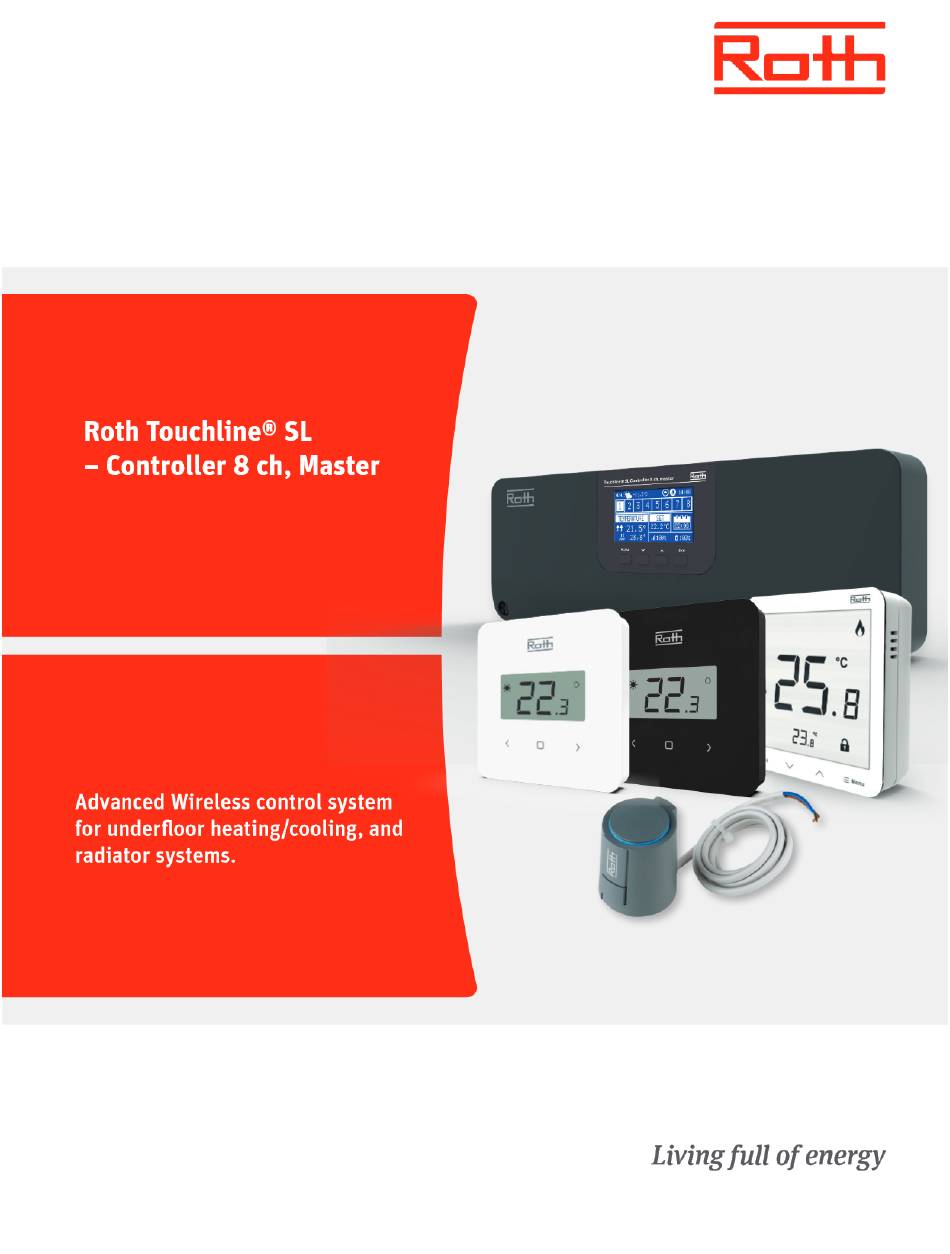

Roth Touchline SL Manual

Controller 8 ch, master
Hide thumbs Also See for Touchline SL:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Touchline SL and is the answer not in the manual?

Questions and answers

Related Manuals for Roth Touchline SL

Summary of Contents for Roth Touchline SL

  • Page 2: Table Of Contents

    TABLE OF CONTENT Safety ..........................3 First start-up .......................... 4 III. Main screen description ......................8 Display informations – zones Controller functions ........................ 9 1. Block Diagram – Main menu ................... 9 2. Operation global system mode ..................9 3. Zones menu........................10 3.1.

  • Page 3: Safety

    I. SAFETY Roth Touchline® SL Control system must always be installed by a qualied person. The controller must always be mounted on a wall or in a cabi- net in a secure way. WARNING Risk of fatal electric shock from touching live connections. Before working on the controller switch o the power supply and prevent it from being accidentally switched on.

  • Page 4: First Start-Up

    Follow these steps when starting the device for the rst time to ensure its failure-free operation: Step 1. Connect Roth Touchline® SL Controller – master, with all the devices to be controlled In order to connect the cables, remove the controller cover and connect the cables as indicated on connector labels and diagrams below: ›...
  • Page 5 Signal a kablet rumfølere Touchline® SL Controller 8 ch master Eksterne kommunikation Modulkommunikation Input (varme/køling) Potentialeit relæ, maks. belastning 1A Ekstern sensor Pumpeforsyning 230V, max. 0,5A Strømforsyning 230V/50Hz 230V spændingsudgang maks. belastning 0,3A Sikring 6,3A 8 kanaler med maks. 32 termomotorer If required up to 4 actuators can be connected to the same output/zone (32 actuators in total on the controller) Meaning: An output with 2, 3 or 4 terminals can all be connected with up to 4 actuators.
  • Page 6 Step 5. Congure the settings for the temperature sensors and the room regulators To enable the Roth controller - master to control a given zone, it is necessary to provide it with current temperature value. The easiest way is to use a room thermostat, where the user will be able to change the pre-set temperature value directly on the thermostat.
  • Page 7 Touchline® SL Controller 8 ch master 1. Display. 2. ▼ - “down” “minus” - it is used to view the menu options and decrease the value while editing parameters. During standard operation the button is used to switch between dierent zones parameters. 3.

  • Page 8: Main Screen Description

    III. MAIN SCREEN DESCRIPTION Touchline® SL Controller 8 ch master 1. Day of the week 2. Current time 3. Overview of zones. If a zone is highlighted (here it’s ch 1) you can view the informations for this zone in the display. If no number is shown, no sensors are connected (here at ch 4 and ch 8).

  • Page 9: Controller Functions

    IV. CONTROLLER FUNCTIONS 1. MAIN MENU Block diagram – Controller main menu Menu Additonal Operation External Manual Control Time Screen Language Fitter's Service Software Zones 1 - 8 modules mode sensor mode panel settings settings version menu menu version 1 - 4 2.

  • Page 10: Zones Menu

    3. ZONES MENU Diagram - Zones menu Zones Sensor Operation User Floor Optimum Window Set temp. Hysteresis Calibration Actuators type mode settings heating start sensors This submenu enables the user to congure operation parameters for the particular zones. When the pre-set temperature value in a zone is reached, the controller labels the zone as suciently heated and the status remains unchanged until the temperature drops below the pre-set temperature by hysteresis value.

  • Page 11: User Settings

    3.5 USER SETTINGS User settings Temperature Heating Floor pump settings Schedule Constant Temp. Economical Holidays settings temperature comfortable 3.5.1 Floor pump > It is possible to turn o the circulation pump, but this will result in no heating/cooling. Default ON. 3.5.2 Heating >...

  • Page 12: Floor Heating

    You can connect a cable oor sensor directly to the Roth Touchline® SL Standard room thermostat. In connection with the Roth Touchline® SL Project room thermostat you can also connect a seperate wireless Roth Touchline® SL Project oor sensor to a zone if needed.

  • Page 13: Operation Mode

    4.3 OPERATION MODE Operation mode for the oor sensor can be set set to either “OFF”, “Floor protection” or “Comfort”. Choose wished mode using ▼ – pres MENU. this turns o the sensor completely. Floor protection this function serves to maintain the oor temperature below the maximum temperature value in order to protect the system or ooring against overheating.

  • Page 14: Optimum Start

    ▲ – press MENU. 8. ACTUATORS Here you have the possibility to add and control up to 6 Roth Touchline® SL wireless Radiator actuators to the zone. Registration Choose “Actuators” using ▼ – pres MENU. Choose “Registration” with ▼ or ▲ – press MENU. Conrm “YES” with MENU to start registration of actuator.

  • Page 15: Actuators

    8. ACTUATORS Here you have the possibility to add and control up to 6 Roth Touchline® SL wireless Radiator actuators to the zone. Registration Choose “Actuators” using ▼ – pres MENU. Choose “Registration” with ▼ or ▲ – press MENU.

  • Page 16: Window Sensors

    (sensor failure, communication error). 9. WINDOW SENSORS Here you have the possibility to add and control up to 6 Roth Touchline® SL Window contacts to the zone. Registration Choose “Window sensors” using ▼ – pres MENU. Choose “Registration” with ▼ or ▲ – press MENU. Conrm “YES” with MENU to start registration of Window sensor.

  • Page 17: Additional Modules Menu

    V. ADDITIONAL MODULES MENU Diagram – Additonal modules menu Menu Additonal modules 1 - 4 Registration Zones Signal If you need to have a larger installation of more than 8 channels, you can add up to 4 extension Controllers in this menu. Please see the manuals for the master and extention Controllers to se how to add a module.

  • Page 18: External Sensor Menu

    VI. EXTERNAL SENSOR MENU Diagram – External sensor menu Menu External sensor Sensor Signal Battery Temperature Registration Weathercontrol Calibration type strength level outside Wired Wireless It is possible to connect an outdoor temperature sensor which enables the user to activate the weather-based control. The system enables only one outdoor sensor to be registered on the master Controller and the current value of the outside temperature is displayed on the main screen and forwarded to other devices like the extension Controller.

  • Page 19: Manual Mode Menu

    VII. MANUAL MODE MENU Diagram – Manual mode menu Menu Manual mode Potential- Valves 1 -8 Pump free contact This function enables the user to activate particular devices (valve actuators, voltage free contact and pump) independently of the others in order to check if they operate properly.

  • Page 20: Screen Settings Menu

    IX. SCREEN SETTINGS MENU Diagram – Screen settings menu Menu Screen settings Screen Button the Screen Display Screen Screen Damping saver sounds view contrast brightness fade time This function enables the user to adjust the screen properties to individual needs. Screensaver Protects the display for burn-in.

  • Page 21: Fitters Menu

    In order to be able to use the Roth Touchline® SL Repeater between the master – and extension controllers, it must rst be congured. Please see the specic manual for the Roth Touchline® SL Project repeater.

  • Page 22: Contact Operation Mode

    4. CONTACT OPERATION MODE Here you are able to change the setting for the pump and potential free contact. If you have set up a system with one or more extension control- lers you can control these outputs globally via the master controller. Potential-ee- Contact Operation delay...

  • Page 23: Heating - Cooling

    “Cool.” and “+ 5V”. The signal must be a potential-free signal (ie. without current) and be “normal open” by de- fault. When a signal is given from the cooling unit, the switch will be closed and the Roth Touchline® SL system will switch to cooling operation.
  • Page 24 Setting of max. humidity When using thermostats and/or sensors with build in humidity sensors in each room, it is possible to protect the oor construction against mois- ture generation during cooling in each single room. To do this it is necessary to specify a maximum value for the humidity. This maximum value applies to the entire plant (globally). In order to set the value correctly, it is important to relate to the actual switch over room temperature and the preset minimum ow temperature (set on the heat pump or cooling device), respectively.

  • Page 25: Mixing Valve

    9. MIXING VALVE The master controller may control additional valve with the use of a Roth Touchline® SL Valve module. The device oers a range of parameters to adjust the valve operation to individual needs, and also includes the possibility to run the system based on outdoor compensation.

  • Page 26: SoWare Version

    XIII. SOFTWARE VERSION Diagram – Soware version menu Menu Software When option is selected, the display shows the current controller soware version. XIV. SCHEDULE SETTINGS The operation mode “Local/Global schedule” can be selected, previewed and edited on the Controller. Local schedule is used when separate settings are required for a single zone.
  • Page 27 Touchline® SL Controller 8 ch master Use button UP/DOWN and Press MENU to enter the zone to be scheduled. Touchline® SL Controller 8 ch master Use UP/DOWN and Press MENU to open “Operation mode”. Touchline® SL Controller 8 ch master Press MENU button to select “Local schdule”...
  • Page 28 The below example describes how the schedule program is dened in time periods (1,2,3) with dierent set temperatures. The pre-dened schedule (Local schedule 1) will do the following: > Between 00:00 – 06:00 o’clock the temperature is set to 18 degrees. >...

  • Page 29: SoWare Update

    “Part of the week 2” an optional schedule that makes it possible to dene separate Touchline® SL Controller 8 ch master settings for specic days. For example, if the set temperature is going to be higher only in the weekends. Press MENU button to dene “Part of the week 2.

  • Page 30: Alarm List

    XVI. ALARM LIST System alarm Possible cause How to x Sensor damaged (room sensor, oor sensor) Sensor shorted or damaged - Check the connection with the sensor - Replace the sensor with a new one or contact the service sta if necessary. No communication with sensor/wireless - No range Put the sensor/regulator in a dierent place...

  • Page 31: Technical Data

    XVII. TECHNICAL DATA Roth Touchline® SL Controller 8 ch, master HVAC no. 7466397028 Supply voltage 230V AC Energy consumption Number of outputs and voltage 18 (NC/NO), 230V AC Max. sustained load 18 thermal actuators (0.3 A)* (2 channels of 3 actuators and 6 of 2 actuators)
  • Page 32 Roth Touchline® SL Standard room thermostat HVAC no. 7466397180 Supply voltage 2 pcs. AAA 1.5V Battery life > 2 years (oor sensor > 4 years) Power consumption standby ~ 50uA Room temperature, setting range +5 - +30°C Comfort oor temperature, setting range +15 - +30°C...
