Roth Touchline SL User Manual

Advanced wireless control system for underfloor heating/cooling and radiator systems
Hide thumbs Also See for Touchline SL:
Table of Contents

Advertisement

Quick Links

Download this manual

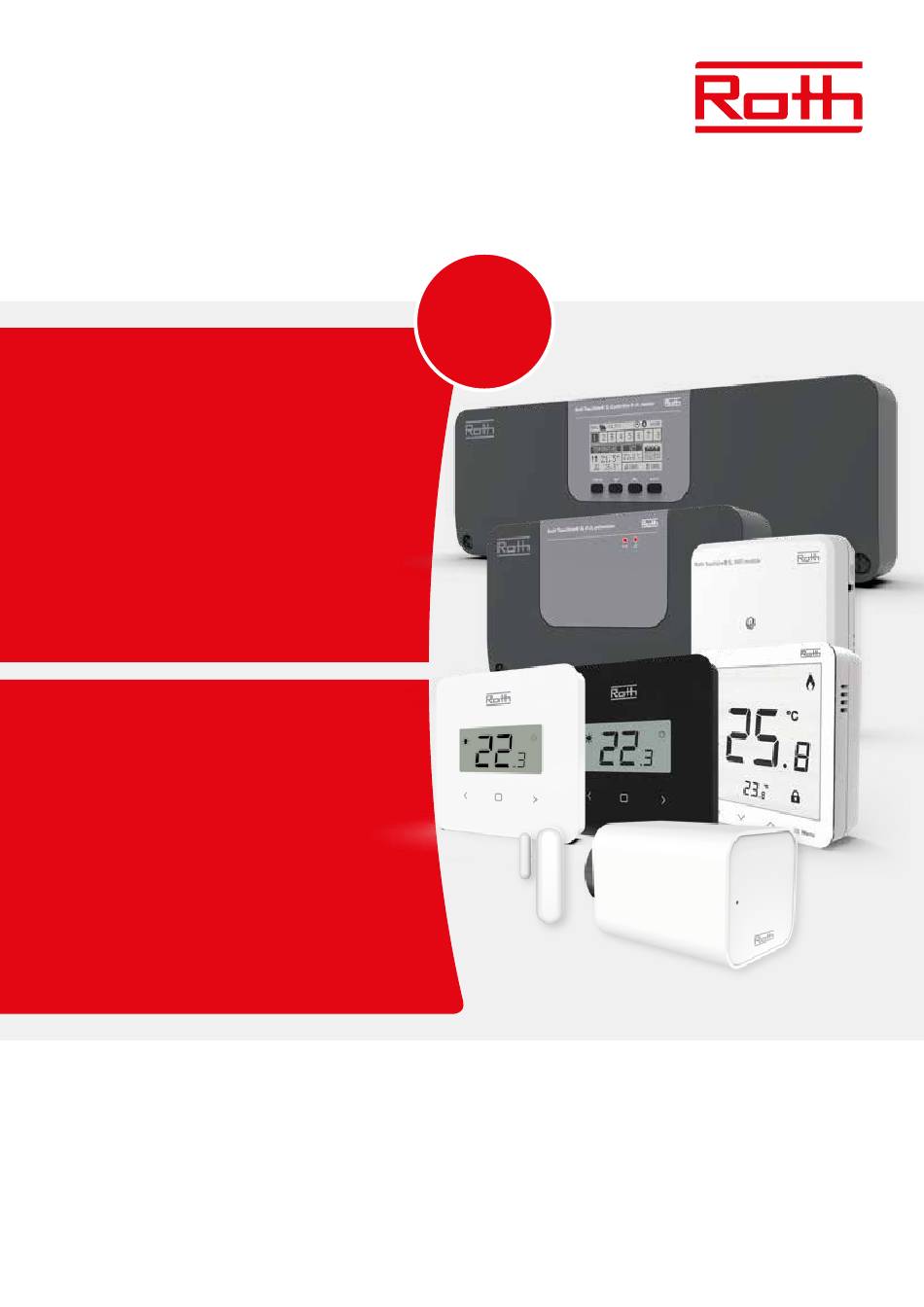

Roth Touchline® SL
– Controller 8 ch, Master
Advanced Wireless control system
for underfloor heating/cooling
and radiator systems.
New
model
Living full of energy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Touchline SL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roth Touchline SL

Summary of Contents for Roth Touchline SL

  • Page 1 Roth Touchline® SL – Controller 8 ch, Master Advanced Wireless control system for underfloor heating/cooling and radiator systems. Living full of energy...

  • Page 2: Table Of Contents

    TABLE OF CONTENT I. SAFETY ................................ 4 II. SYSTEM CONFIGURATION ........................5 Wireless connection between controllers BUS connection between controllers III. FIRST START-UP ............................7 IV. MAIN SCREEN DESCRIPTION ......................... 10 Display information – zones V. CONTROLLER FUNCTIONS ........................11 1. Main menu ..............................11 2.
  • Page 3 9. Service menu ............................24 Display contrast ....................24 Diagnostic file...................... 24 Show all ....................... 24 Time overlay ......................24 Relay delay ......................24 Language version ....................24 Antifreeze protection ..................25 Output type ......................25 Input type ......................25 9.10 Modbus ........................

  • Page 4: Safety

    I. SAFETY Roth Touchline® SL Control system must always be installed by a qualified person. The controller must always be mounted on a wall or in a cabinet in a secure way. WARNING Risk of fatal electric shock from touching live connections. Before working on the controller switch off the power supply and prevent it from being accidentally switched on.

  • Page 5: System Configuration

    II. SYSTEM CONFIGURATION The Roth Touchline® SL system can be used for installations of different sizes. Systems consisting of more Controllers can be set up using either wireless connection or BUS cable connection if the distances are too large or there are difficult physical conditions such as reinforced concrete.
  • Page 6 Positioning of the jumpers must be set correct in the BUS chain: START POSITION: MIDDLE: END: Choose “Wired” when connecting Extension Controllers to the Master Controller. 4 ch Extension module can only be connected wired. Roth Touchline® SL Controller 8 ch master User Manual - 6/48...

  • Page 7: First Start-Up

    Follow these steps when starting the device for the first time to ensure its failure-free operation: Step 1. Connect Roth Touchline® SL Controller – master, with all the devices to be controlled In order to connect the cables, remove the controller cover and connect the cables as indicated on connector labels and diagrams below: ›...
  • Page 8 HEATING/ STOP HEATING/ MODBUS JUMPER JUMPER COOLING MODE COOLING Main RS communication possibility of connecting valve module Main RS communication possibility of connecting internet module Bus communication Panel/Controller Jumper OpenTherm module communication 230V VOLTAGE OUTPUTS 230V Pump output Voltage- ee contact max.
  • Page 9 Step 5. Configure the settings for the temperature sensors and the room regulators. To enable the Roth controller - master to control a given zone, it is necessary to provide it with current temperature value. The easiest way is to use a room thermostat, where the user will be able to change the pre-set temperature value directly on the thermostat.

  • Page 10: Main Screen Description

    IV. MAIN SCREEN DESCRIPTION 1. Display 2. ▼ - “down” “minus” - it is used to view the menu options and decrease the value while editing parameters. During standard operation the button is used to switch between different zones parameters 3.

  • Page 11: Controller Functions

    4. Showing actual temperature in the room. 5. Showing actual floor temperature if a floor sensor is connected. 6. Showing SET temperature in the room. 7. Shows actual mode for the zone: “CON” means constant SET temperature. “00:56” means that a different SET temperature is set with time limitation for another 56 minutes, after that the setting will return to previous setting (CON or schedule).

  • Page 12: Zones Menu

    2. ZONES MENU Menu - Zones Diagram - Zones menu Menu Zones Zones 1 - 8 Operating Window Outputs Radiator Registration Room sensor Settings Floor heating configuration temperature mode sensors actuators This submenu enables the user to configure operation parameters for the particular zones. When the pre-set temperature value in a zone is reached, the controller labels the zone as sufficiently heated and the status remains unchanged until the temperature drops below the pre-set temperature by the hysteresis value.

  • Page 13: Room Sensor

    Global schedule Here you can choose to let the zone follow one of the 5 (G1 – G5) predefined global schedules. You can choose “Select” immediately, “Preview” if you want to see the schedule first or “Edit” if you want to edit the schedule. Editing of the schedule is described in chapter “VII Schedule settings”.

  • Page 14: Settings

    2.7 SETTINGS Menu - Zones – Settings Menu Zones Zones 1 - 8 Settings Weather Optimised Heating Modes Cooling control start Holiday ON/OFF ON/OFF Min. Schedule Schedule Economy calibration time Constant Constant Max. Comfort temperature temperature calibration time Min. Min. temperature temperature Max.

  • Page 15: Cooling

    Activating this function means that at the time of pre-programmed change of the pre-set temperature determined by the schedule, the current room temperature will be close to the desired value. Min. calibration time Minimum calibration time should not be changed without consulting Roth Max. calibration time Maximum calibration time should not be changed without consulting Roth NOTE Optimum start is available only in heating mode.

  • Page 16: Radiator Actuators

    2.8. Radiator actuators Here you have the possibility to add and control up to 6 Roth Touchline® SL wireless Radiator actuators to the zone. For more specific informa- tion about installation and setup of the radiator actuators please see the manual delivered together with this product.

  • Page 17: Window Sensors

    2.9. WINDOW SENSORS Here you have the possibility to add and control up to 6 Roth Touchline® SL Window contacts to the zone. For more specific information about installation and setup of the window sensors please see the manual delivered together with this product.

  • Page 18: Floor Heating

    If you have an Roth Touchline® SL Standard IR thermostat this is also where you register the integrated IR sensor. In connection with the Roth Touchline® SL Project room thermostat you can also connect a separate wireless Roth Touchline® SL Project floor sensor to a zone if needed.

  • Page 19: Operating Mode

    2.10.3 OPERATING MODE Operating mode for the cabled floor sensor can be set set to either “OFF”, “Floor protection” or “Comfort”. Choose the required mode using ▼ – press MENU. Operating mode for the integrated IR floor sensor can be set to either “OFF” or “Comfort”. The IR sensor isn’t secure enough to be used for floor protection.

  • Page 20: Outputs Configuration

    4.2 INTERNET MODULE If you want to be able to control your system remotely you must connect a Roth Touchline® SL WiFi module to the system. The user can then view the status of all system devices on the screen of the home computer, a smart phone or a tablet and may edit a wide range of parameters via the Internet and the Roth Touchline®...

  • Page 21: External Sensor

    Menu – External sensor 4.3 EXTERNAL SENSOR Diagram – External sensor menu Menu Modules External sensor Connection type Calibration Signal Battery level Wireless Register It is possible to connect an outdoor temperature sensor which enables the user to activate the weather-based control. The system enables only one outdoor sensor to be registered on the master Controller and the current outside temperature is displayed on the main screen and forwarded to other devices e.g., an extension Controller.

  • Page 22: Repeater Configuration

    (Maximum 2 repeaters in series). Menu – Operating mode Please see the specific manual for the Roth Touchline® SL repeaters for connecting and setting up. 5. OPERATING MODE - GLOBAL SYSTEM MENU Diagram –...

  • Page 23: Controller Settings

    6. CONTROLLER SETTINGS Diagram – Controller settings Time settings Press MENU button and use the button ▼ to select “Time settings” – press MENU. Menu – Controller settings Automatic When the box “Automatic” is checked (not default factory setting) and the Controller is connected to the internet the clock and date will be set automatically.

  • Page 24: Language Version

    Menu - Language selection 8. LANGUAGE VERSION Diagram – Language version Menu Language version To set your language press MENU button and use the button ▼ to select “Language selection”. Use the button ▼ to select your language and Menu – Service menu confirm with MENU button.

  • Page 25: Antifreeze Protection

    9.7 Antifreeze protection If there is no signal from the thermostat or sensor in the zone for 12 hours - then the antifreeze mode is activated. In this mode the actuators open for 15 minutes, then close for 45 minutes, until communication between the thermostat/sensor and the controller returns.
  • Page 26 User Manual - 26/48...

  • Page 27: Factory Setting

    If it is needed parameters for Modbus communication can be changed in the “Service menu” > “Modbus”. Slave address Default “1”. Can be set between 1 and 247. Word length Default “8-bit word”. Can also be set to 9-bit word. Parity bit Default “Even parity bit”.

  • Page 28: Fitters Menu

    10.1. Master module – additional contacts It is possible to add up to 6 additional contacts to control/switch for example external boilers, pumps, actuators etc. Please contact Roth if you have questions to this possibility. 10.2. Extension modules Please see point 4.1 under Modules menu.
  • Page 29 “CO in heating/cooling” input. The signal must be a potential-free signal (ie. without current) and be “normal open” by default. When a signal is given from the cooling unit, the switch will be closed and the Roth Touchline® SL system will switch to cooling operation.
  • Page 30 Setting of max. humidity When using thermostats and/or sensors with build in humidity sensors in each room, it is possible to protect the floor construction against moisture generation during cooling in each single room. To do this it is necessary to specify a maximum value for the humidity. This maximum value applies to the entire plant (globally). In order to set the value correctly, it is important to relate to the actual switch over room temperature and the preset minimum flow temperature (set on the heat pump or cooling device), respectively.

  • Page 31: Eco Input

    View in display during cooling operation 13:51 27.5°C 2 3 4 5 6 1. The arrows point downwards, which means that it is cooling. 2. A fan is displayed when cooling TEMPERATURE 21.0° 22.3° If the maximum humidity is exceeded in a zone, the symbol 1. will switch off, but the symbol 2.

  • Page 32: Dhw Settings

    10.13. DHW settings Output nr. 8 on the master controller can be used to switch on a domestic hot water (DHW) boiler. With this function enabled the output will send a signal to heat the water during the times choosen. The signal is only an on/off signal so the domestic hot water tank should have a built-in thermostat to switch off when the set temperature is reached.

  • Page 33: Schedule Settings

    Choose “Preview” to see the current schedule settings. Choose “Edit” to change the schedule settings. Global setting will control all zones. Roth Touchline® SL Controller 8 ch master Choose “Global schedule” (1 – 5) with ▼ or ▲ - Press MENU to “CONFIRM”.
  • Page 34 Roth Touchline® SL Controller 8 ch master Use button UP/DOWN and Press MENU to enter the zone to be scheduled. Roth Touchline® SL Controller 8 ch master Use UP/DOWN and Press MENU to open “Operation mode”. Roth Touchline® SL Controller 8 ch master Press MENU button to select “Local schdule”...
  • Page 35 The below example describes how the schedule program is defined in time periods (1,2,3) with different set temperatures. Roth Touchline® SL Controller 8 ch master The pre-defined schedule (Local schedule 1) will do the following: > Between 00:00 – 06:00 o’clock the temperature is set to 18 degrees.

  • Page 36: Software Update

    “Part of the week 2” an optional schedule that makes it possible to define separate settings Roth Touchline® SL Controller 8 ch master for specific days. For example, if the set temperature is going to be higher only in the weekends.

  • Page 37: Alarms And Trouble Shooting

    XVI. ALARMS AND TROUBLE SHOOTING Roth Touchline® PL room thermostat On display Explanation Action/cause "---" the temperature cannot be set Register the thermostat "Err" registration failed Try to register again "ScS" calibration was successful "SCS" registration was successful "Lo "...
  • Page 38 Roth Touchline® SL standard room thermostat On display Explanation Action/cause "UnA" the temperature cannot be set Register the thermostat "Err" registration failed Try to register again Try to calibrate again – don’t touch the front "err" an error occurred during calibration of the thermostat while calibrating "ScS"...
  • Page 39 Roth Touchline® SL Plus room thermostat On display Explanation Action/cause "UnA" the temperature cannot be set Register the thermostat "Err" registration failed Try to register again Try to calibrate again – don’t touch the front "err" an error occurred during calibration of the thermostat while calibrating "ScS"...
  • Page 40 Roth Touchline® SL Radiator actuator (Errors are displayed on the Master controller) These errors are displayed with other information: - Error number - Actuator number, zone number, - Time of occurrence Example: Error 2 Actuator 3 - Zone 6 Time for occurrence: 26 min.
  • Page 41 Roth Touchline® SL Window contact (Errors are displayed on the Master controller) On controller display Explanation Action/cause Possible two reasons: - Run out of battery – change the battery, - Poor radio connection to controller. Example: “No communication Window sen.
  • Page 42 Roth Touchline® SL Master Controller 8 ch and Roth Touchline® SL Extension Controller 8 ch On display Explanation Action/cause No communication This information will indicate which radiator Possible two reasons: Actuator “X” - Zone “X” actuator (1 to 6) in a given zone (1 to 48) has Time for occurrence: “X”...
  • Page 43 5 m antenna long this error has been active. extender cable (sold separately). Optionally, use a signal repeater (Roth Touchline® SL repeater). If it is cable connection: - Check cable and connectors - Check mains 230V power connection cable...

  • Page 44: Technical Data

    X. TECHNICAL DATA Roth Touchline® SL Controller, Master - 8 ch Roth Touchline® SL Controller, Master 8 ch 230V HVAC no.7466397058 Supply voltage 230V AC Energy consumption Number of outputs and voltage 19 (NC/NO), 230V AC Max. sustained load 19 thermal actuators (0.3A)
  • Page 45 Roth Touchline® SL Standard Roth Touchline® SL Standard room thermostat room thermostat (white) HVAC no. 7466397180 Roth Touchline® SL Standard room thermostat (black) HVAC no. 7466397181 Roth Touchline® SL Plus room thermostat HVAC no. 7466397190 Supply voltage 2 pcs. AAA 1.5V Battery life >...
  • Page 46 Roth Touchline® SL WiFi module HVAC no. 7466397002 Energy consumption 0.5 W Connector RS cable Protection class I (NA) Transmission frequency 2,4 Ghz Range (up to) 30 m (in normal building ) Network cable RJ12 200 cm Ambient temperature 5 - 50°C Ambient humidity <...
  • Page 47 Roth Touchline® SL repeater HVAC nr. 7466397400 Supply voltage 230V ~ 50Hz Maximum power consumption < 1W 62.59 Max. transmission power 25mW Protection class Transmission Ambient 868 MHz Ambient temperature +5°C - +50°C Ambient Humidity < 80% RF Degree of protection...
  • Page 48 Connections on Roth Touchline® SL Controller, 8 ch master HEATING/ STOP HEATING/ MODBUS JUMPER JUMPER COOLING MODE COOLING Main RS communication possibility of connecting valve module Main RS communication possibility of connecting internet module Bus communication Panel/Controller Jumper OpenTherm module communication...
