TECHCON TS9800 User Manual page 16

The system will take about 15 – 20 seconds for warming up and starting up
9.
the computation. During this time, the front panel calibration LED is off.

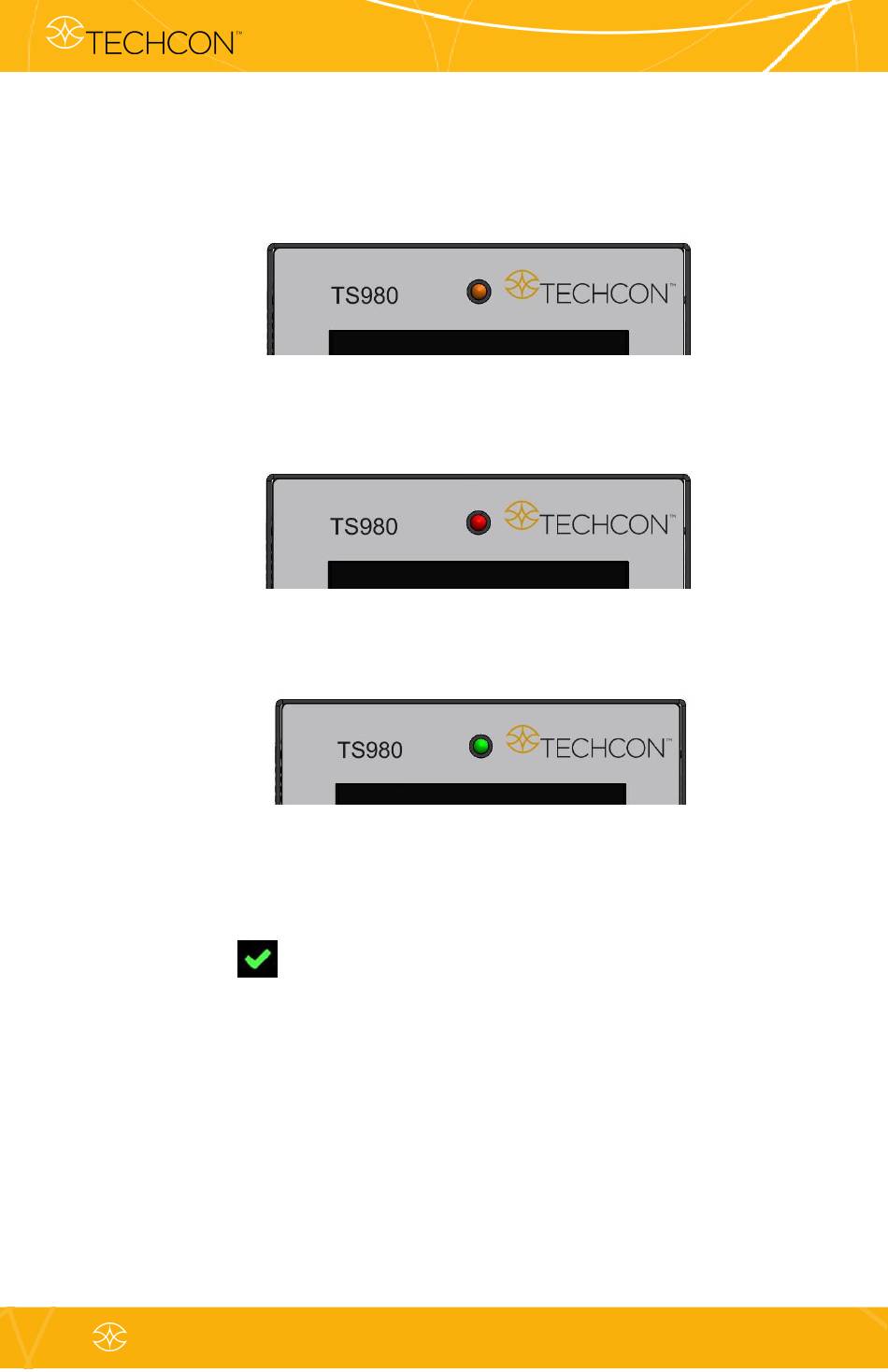

10. When the system completed the initial computation, the LED light will turn
Orange.
11. Quickly loosen the nozzle unit by about quarter of a turn until the LED light
turns Red.
12. Slowly tighten the nozzle unit to the calibrated position until the LED light
turns Green.
Caution: Once the proper calibration condition is achieved, immediately go
to step 12.
13. The calibration process is now completed. Touch the 'Accept' icon to save
and exit.
The valve is now ready for dispensing application.
Remarks:
•
You can leave the calibration procedure by touching the 'Accept'
icon.
•
The calibration procedure should be done in a cleaned, dry
system to avoid any influences of the material between nozzle
insert and tappet and to get a consistent dispense result.
•
If the fluid contains particles (fillers), the calibration procedure
performed with fluid is not possible. It must be performed
without fluid.
