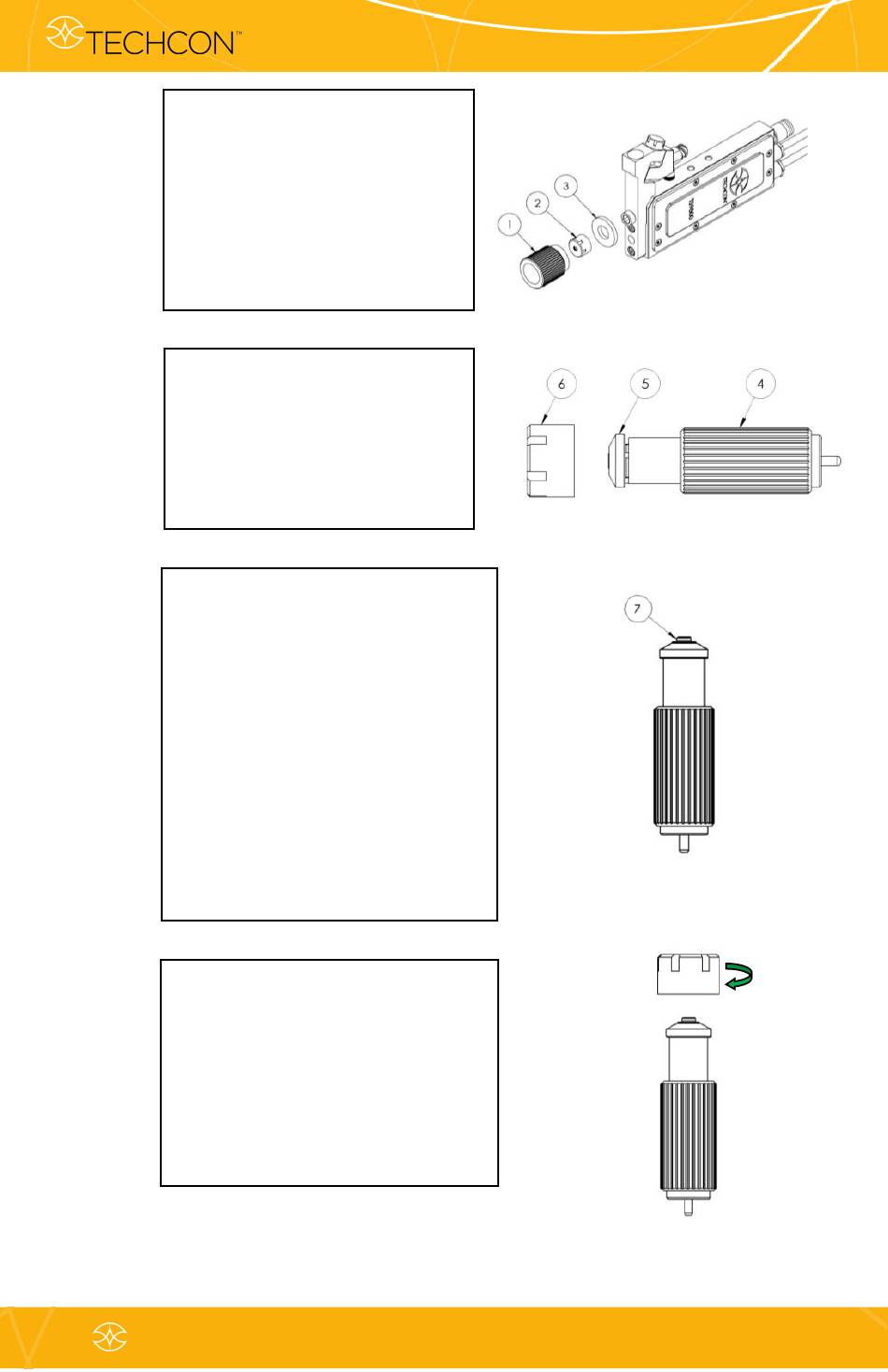

Step 1:
•
Use the provided nozzle
adjustment tool (1) to
remove the nozzle
adjustment nut/bushing
assembly (2) and protective
nylon washer (3).
Step 2:
•
Use the provided nozzle
installation tool (4) to
remove the nozzle bushing
(5) from the nozzle
adjustment nut (6).
Step 3:
•
Press the nozzle insert (7) into
the nozzle bushing with the
smaller end facing outward.
Caution: To sit correctly, the
nozzle insert must snap in
lightly. Make sure it sits level
within the socket.
•
Place the bushing/nozzle insert
assembly on
installation tool in the vertical
position to prevent the nozzle
insert from dropping out.
Step 4:
•
Slowly screw
adjustment nut
bushing/nozzle insert assembly.
Caution: Continue to hold the
assembly in the vertical position
while hand-tightening
nozzle adjustment nut.
the nozzle
the nozzle
into the
the
