4.3 Nozzle Calibration

The purpose of the nozzle calibration process is to make sure the nozzle
insert is installed at the correct position with respect to the tappet to prevent
leakage and to ensure proper dispensing.
Follow the instructions below before starting the actual dispense procedure.
WARNING:
Make sure the nozzle unit is loose before turning the controller
on.
For proper calibration and operation, the jet valve must be
securely mounted on a test stand or robot in the vertical position.
Do not calibrate or operate the valve while it is placed insecurely
on bench top.

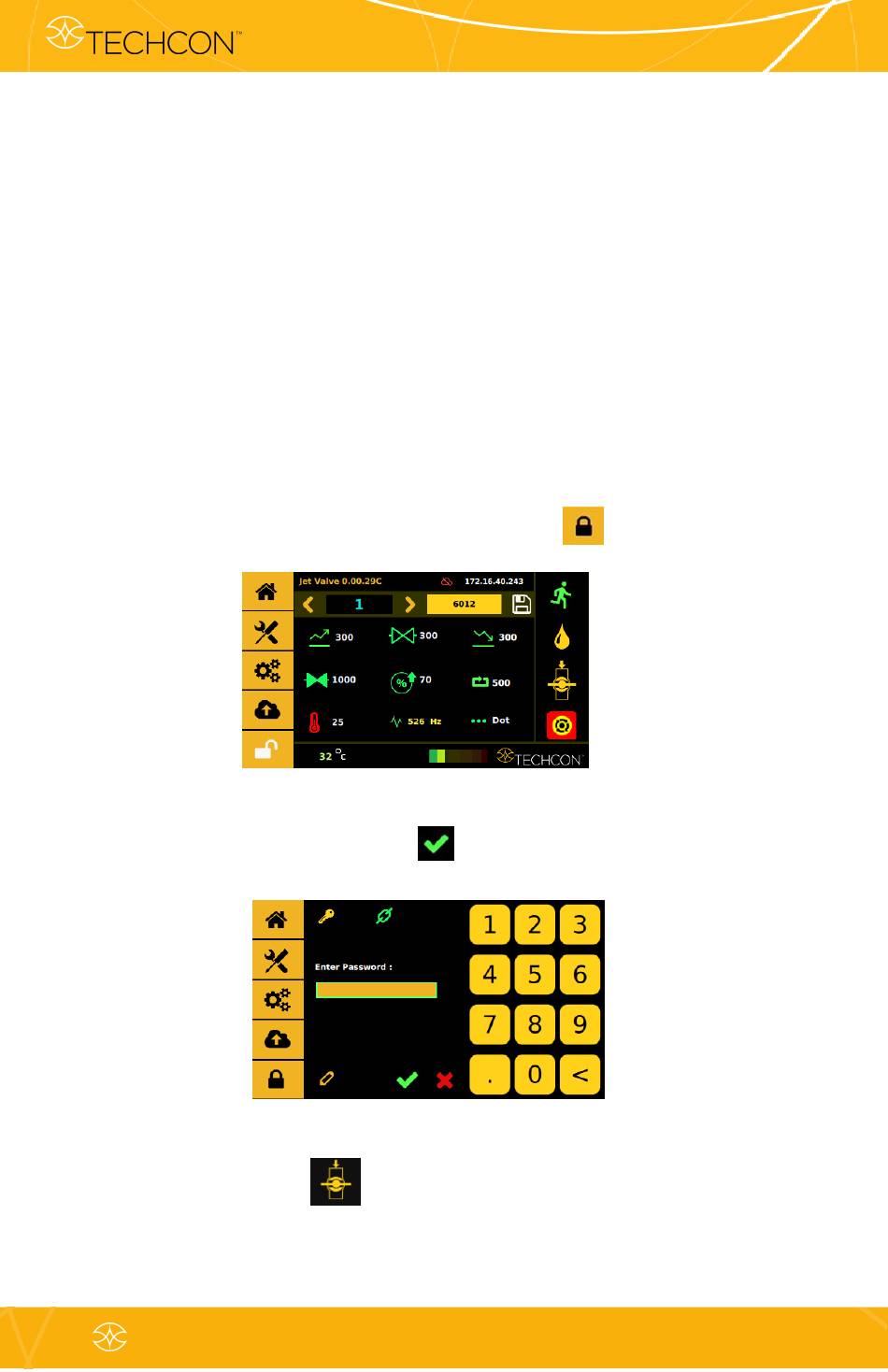

1.
Turn on the controller by pressing the On/Off switch.
Touch the 'Login' icon to enter the login screen.
2.
Enter the default password '0000" in the password window. Then touch the
3.
'Accept' icon to save and exit.
refer to section 9.5.1.
Make sure the valve is in the closed position. The 'Close' icon is shown on
4.
the home screen.
Attention: For changing the password,
techcon.com/contact-us
TS9800 & TS980
Jet Valve Dispensing System User Guide
14
