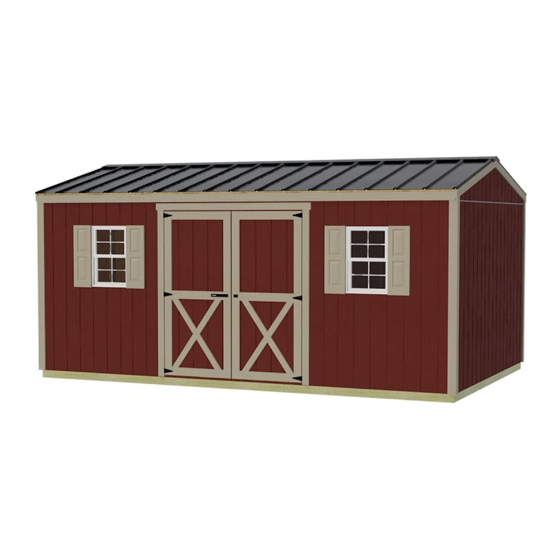

Best Barns Cypress R Assembly Book

Hide thumbs Also See for Cypress R:

Advertisement

Quick Links

Download this manual
the Cypress R
Manufactured by RBS Holdings, LLC
205 Arlington Drive
This manual is copyrighted. Under the copyright laws, this manual
may not be copied, in whole or in part, without consent from
RBS Holdings, LLC
Remove Watermar
Best Barns
Assembly Book
revised September 28, 2022
10' x 16'
Greenville, PA 16125
© Copyright 2022
Wondershare
PDFelement

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cypress R and is the answer not in the manual?

Questions and answers

Related Manuals for Best Barns Cypress R

Summary of Contents for Best Barns Cypress R

  • Page 1 PDFelement Best Barns Assembly Book revised September 28, 2022 10' x 16' the Cypress R Manufactured by RBS Holdings, LLC 205 Arlington Drive Greenville, PA 16125 This manual is copyrighted. Under the copyright laws, this manual may not be copied, in whole or in part, without consent from RBS Holdings, LLC ©...

  • Page 2: About Your

    Unpack all items & organize according to size and type. This will make items easier to find when instructed. Review the parts list on the back page. Should there be missing items or sub-par material contact Best Barns Customer Service. DO NOT discard any material including the pallet until your project is complete. Assembly: Review all instructions before you begin.
  • Page 3 Wondershare Remove Watermar PDFelement Construction Details for Optional Floor System Check local building codes in your area, the construction may have to change. For a concrete slab, install sill sealer as a moisture barrier between the concrete and the wall plates. Foam sill sealer can be purchased at home centers in rolls 3-1/2"...
  • Page 4 Wondershare Remove Watermar PDFelement Step 1 Assemble Roof Gables and Trusses Gables will have (1) one gusset applied. Trusses will have (2) two gussets. Tip: If possible, temporarily screw 2x4 blocks to the floor using 2-1/2" deck screws. Short 2x4s, that may have an angle on one end, supplied in the kit for this purpose.
  • Page 5 Wondershare Remove Watermar PDFelement Step 2A Assemble End walls 1. Position (4) four 60" boards together and indicate with 'X' marks, where the wall studs will be located. Mark the ends that will butt together with the letters 'A' and 'B'. 60"...
  • Page 6 Wondershare Remove Watermar PDFelement Step 2B Assemble End Walls Continued 9. Install a 60" long 2x4 in the center of the wall panel, at the top. Use (6) six 10d sinkers. Set wall aside. 10. Select the other end wall frame. 11.
  • Page 7 Wondershare Remove Watermar PDFelement Step 3A Assemble Back Wall 1. Position (2) two 68-1/2" and (2) two 48" long 2x4s together and indicate with 'X' marks, where the wall studs will be located. Mark plates with the letters 'A', 'B' and 'C' so frames are correctly orented.
  • Page 8 Wondershare Remove Watermar PDFelement Step 3B Assemble Back Wall Continued 68-1/2" Wall Plate 5. Position (2) two 68-1/2" long 2x4s together and indicate with 'X' marks, where the wall studs will be located. Mark the left ends with the letter 'D'. 23-1/4"...
  • Page 9 Wondershare Remove Watermar PDFelement Step 4 Assemble Front Wall Frames 60-1/4" Top Plate 1. Cut (1) one 72" long 2x4 to a length of 69-1/2". 2. Cut (2) two 68-1/2" long 2x4s to a length of 60-1/4". 3. Mark spacing as shown and assemble a wall frame using (4) four 72"...
  • Page 10 Wondershare Remove Watermar PDFelement Step 5B Set Walls Continued 3. Install front wall frames between the end walls. 4. Temporarily install (2) two 2x4-72" boards at both sides of the door opening to hold the wall straight. These boards will be used later for tie plates. 2x4 Wall Brace 64-1/2"...
  • Page 11 Wondershare Remove Watermar PDFelement Step 6 Install Siding on Front Wall 1. Select a full with siding panel and install at the front left corner. 2. Install a 15-3/4" siding panel with a 'LAP' edge next. Cut edge should be flush with door opening. 3.
  • Page 12 Wondershare Remove Watermar PDFelement Step 7B Install Tie Plates Continued 5. Cut (4) four 26-1/2" long 2x4s from (2) two 60" long 2x4 boards. 6. Install the 26-1/2" boards on both end walls, see below. 26-1/2" Tie Plate 26-1/2" Tie Plate Step 8 Install Roof Gable...
  • Page 13 Wondershare Remove Watermar PDFelement Step 9 Install 'Z' Flashing Install (2) two 60” pieces of 'Z' flashing across the top of the siding on the end wall siding. Secure in place Roof Gable using 6d galv. nails spaced 12” apart. The ends will be covered by corner trim.
  • Page 14 Wondershare Remove Watermar PDFelement Step 11 Install 2x4 Truss Headers 1. Place a 72" long 2x4 on top of the siding on the front wall. It will butt against the siding on the roof gable. Nail this 2x4 to the 2x4 tie plate with 10d sinkers. 2.
  • Page 15 Wondershare Remove Watermar PDFelement Step 12B Install Trusses Continued Using a 2-1/2" screw, secure all trusses to 2x4 Truss Header installed in Step 11. Toe nail truss into 2x4 tie plate using 10d sinkers. 2x4" Truss Header Detail 'A' Step 13 Install 1x4 Fascia 1.
  • Page 16 Wondershare Remove Watermar PDFelement Step 14 Install Roof Sheathing Install roof sheathing with 6d common, space nails 12" apart. When installing sheathing across the top, insert a plyclip into the roof sheathing between each truss. The top row of sheathing will be about 1" below the ridge to allow for optional ridge venting. See detail below.

  • Page 17: Install Trim

    Wondershare Remove Watermar PDFelement Step 15 Install Trim 1. Install 64-3/8" long 1x4 gable trim flush with the top of the roof sheathing on both end walls. Use 6d galv. nails spaced 12" apart. 1x4 Gable Trim 2. Install 75-3/4" long 1x3 corner trim, on the front wall, flush with the face of the siding on the end walls.
  • Page 18 Wondershare Remove Watermar PDFelement Step 16 Install Doors & Hardware 1. Lay the left door with the trim facing up. The siding on the left door extends past the door trim. See detail below. 2. Install 5" hinges to the left side of the door frame. To position the hinge properly, hold the rectangular plate against the frame.

  • Page 19: Packing List

    Wondershare Remove Watermar PDFelement Packing List Qty. Description Qty. Hardware Description 62" Truss Rafters lbs. Coated Sinkers 72" Studs & Plate Boards lbs. Galvanized Nails 68-1/2" Plate Boards lbs. Common Nails 60" Plate Boards 5" Hinges 48" Plate Boards 4" Door Hasp 10"-12"...
